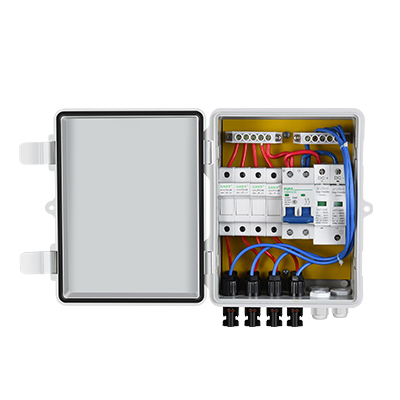

PV Combiner Box with Circuit Breakers for Solar Panel System

Exchangable fuse

4-6 replaceable 10A independent fuses for over-current protection

Pre-connected cable

Plug and play,pre-connected cable, very sturdy organized box to combine your solar panels, make your solar panel system connction easier

Multiple protection

Single PV input array installs with high voltage fuse, its function over-load, over-charge protection

Anti-Backflow Diodes, Anti-Backflow & Anti-Reverse Protection,Touch-safe Circuit Breakers& Non-conductive Box

More reliable&safety

This PV array combiner box includes Output Cable Glands & Safety Labels & Lightning/Surge Protection Module (1000V)

•

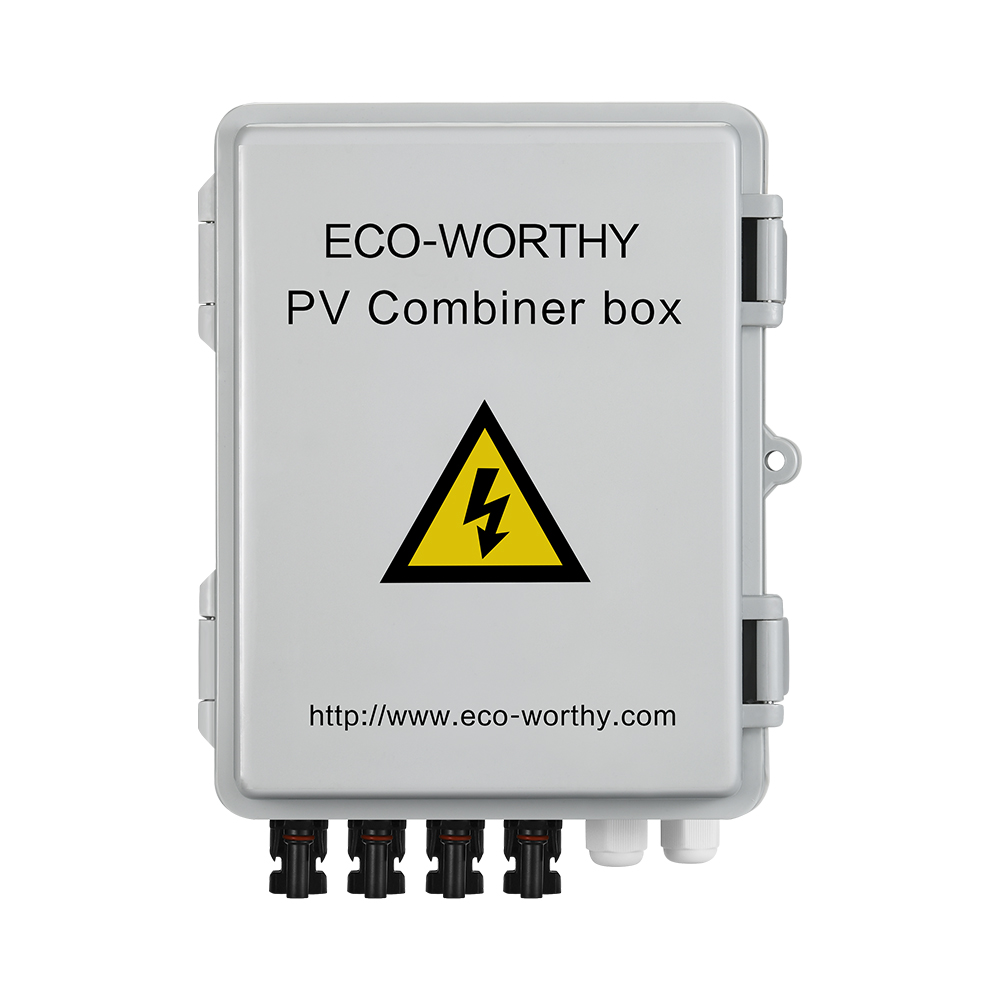

  Number of Max Connection PV Array: 4

  Max Input Current of Single PV Array: 10A

  Total Input Current of PV Array: 40A

  Max Input Voltage of Single PV Array: 250V

  Max Output Voltage: 250V

  Protection Grade: IP65

  Operational Environment Temperature: -30℃~+70℃

  Surge Lightning Protection: Yes

  Size: 8.66*6.69*4.33inch

  Weight: 4.41lbs

•

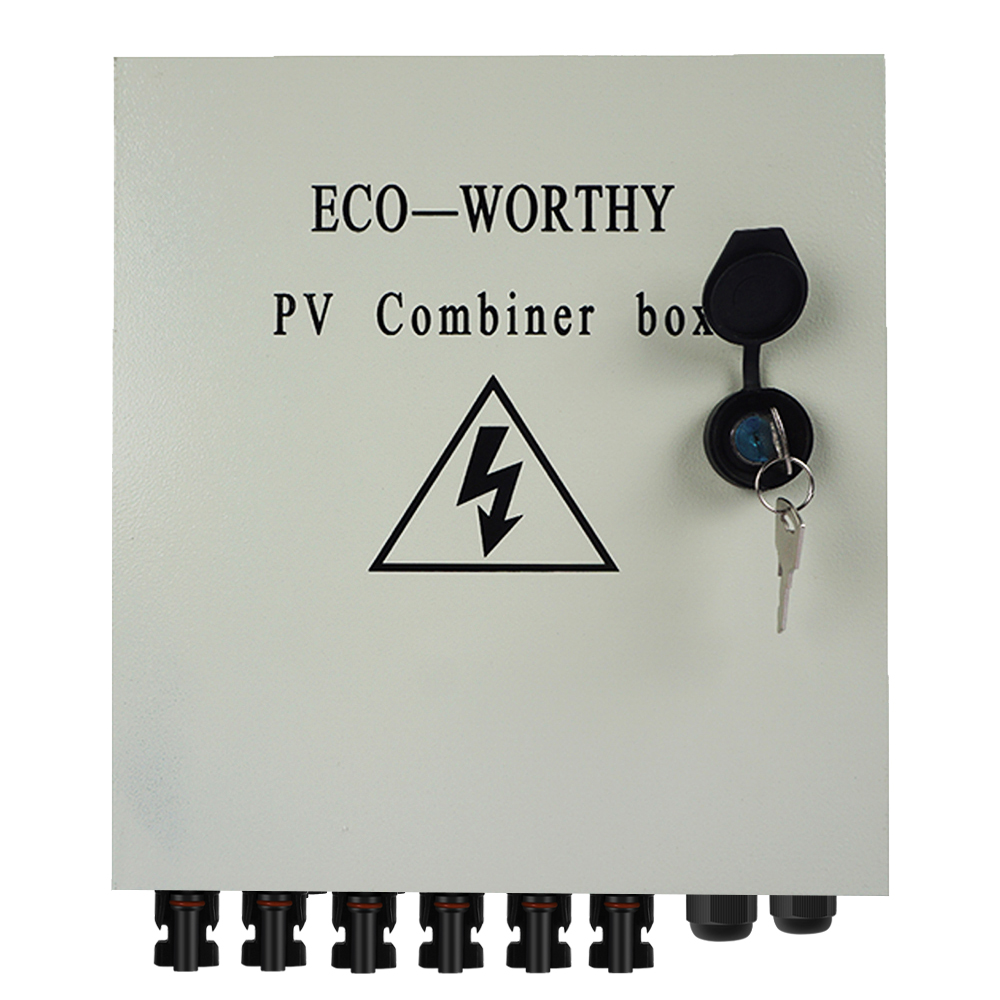

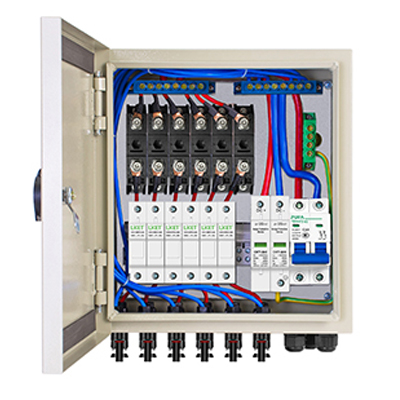

  Number of Max Connection PV Array: 6

  Max Input Current of Single PV Array: 10A

  Total Input Current of PV Array: 60A

  Max Input Voltage of Single PV Array: 250V

  Max Output Voltage: 250V

  Protection Grade: IP65

  Operational Environment Temperature: -30℃~+70℃

  Surge Lightning Protection: Yes

  Size: 10.3*12.6*4.5inch

  Weight: 10.8lbs

•

•

  USER MANUAL

  Download the Combiner Box

•
