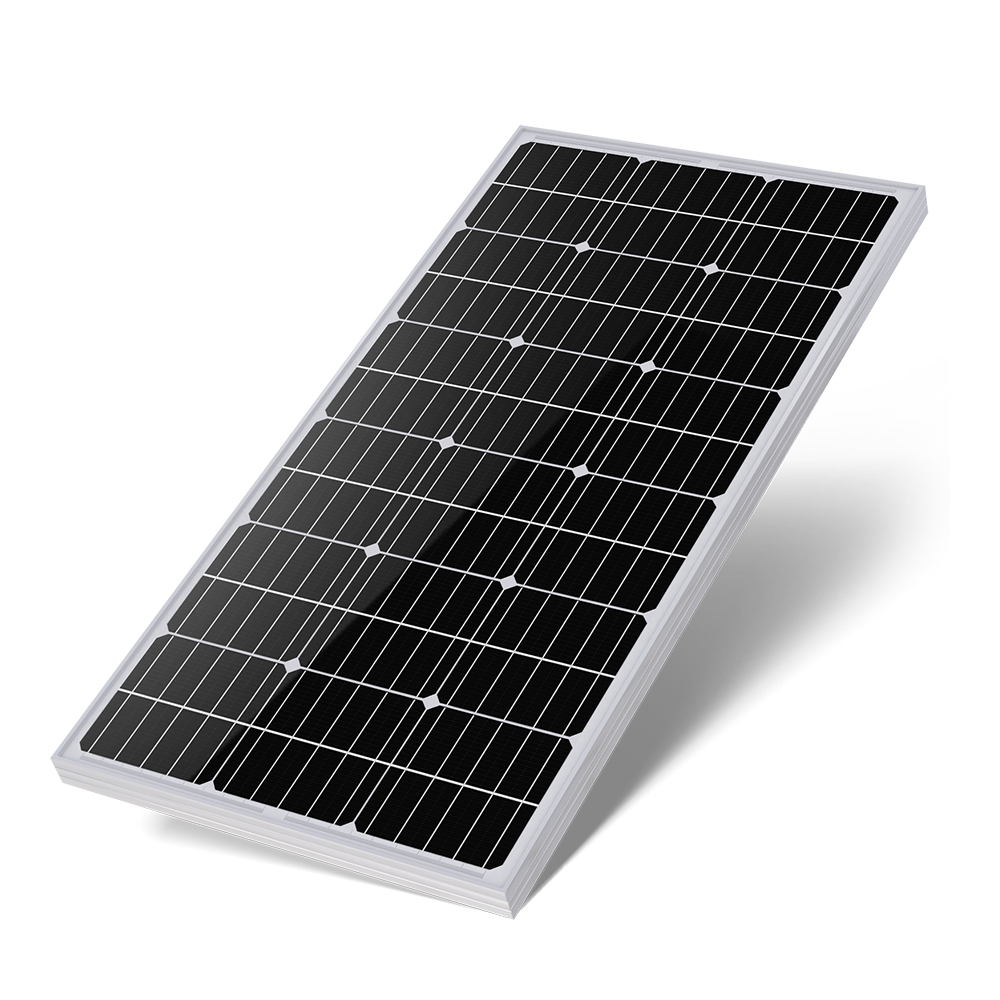

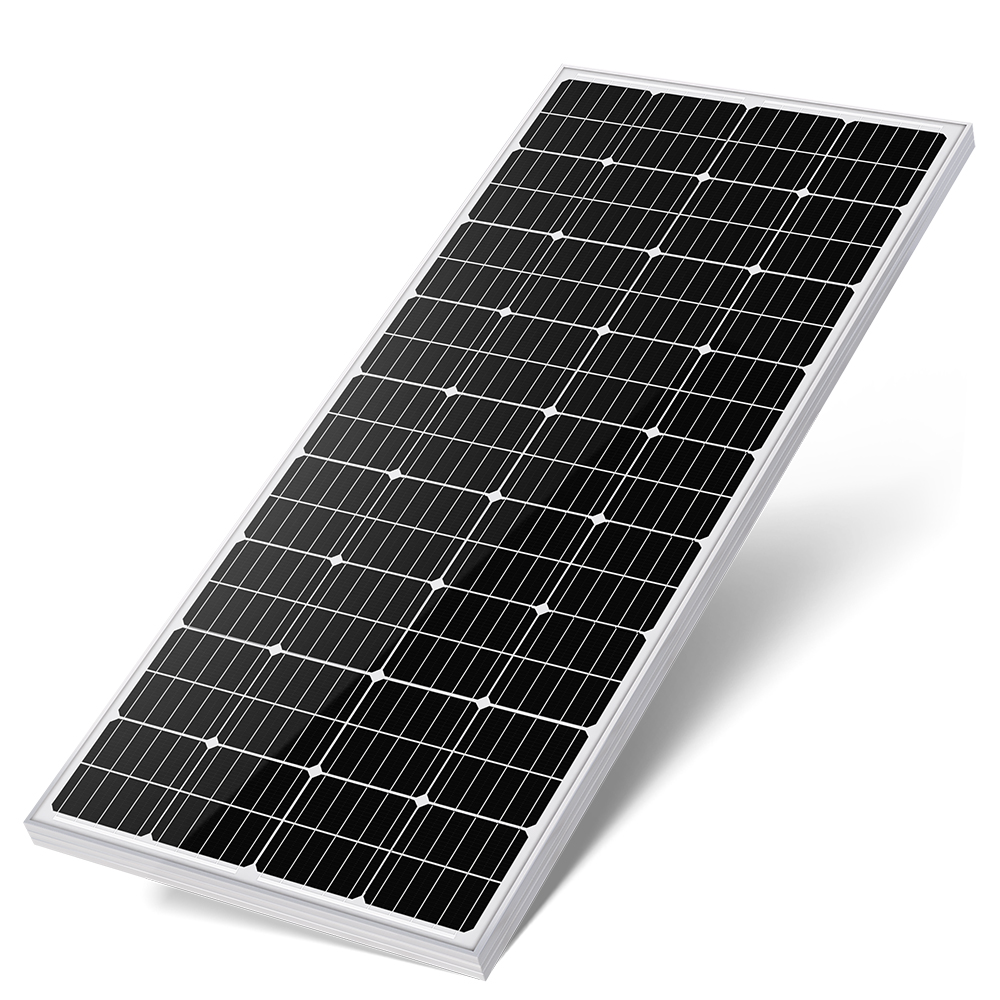

ECO-WORTHY this 100W 12V Monocrystalline Solar Panel is primarily used on off-grid situations that include RV, boat, sailboat, yacht, truck, cabin, camper, tent, trailer, golf cart. Each solar panel comes with a pair of 35 inches cables. By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments. Withstand high wind (2400Pa) and snow loads (5400Pa), the surface is made up of 3.2mm low Iron glass, the monocrystalline modules are framed by 35mm width aluminum alloy, which is 2~5mm wider than the other's.
Certificate :
CESolar Cell :
MonocrystallineLead Time :
10DaysPayment Accept :
T/T, PayPal, Western UnionWarranty :
25YearsMOQ :
30| Features |

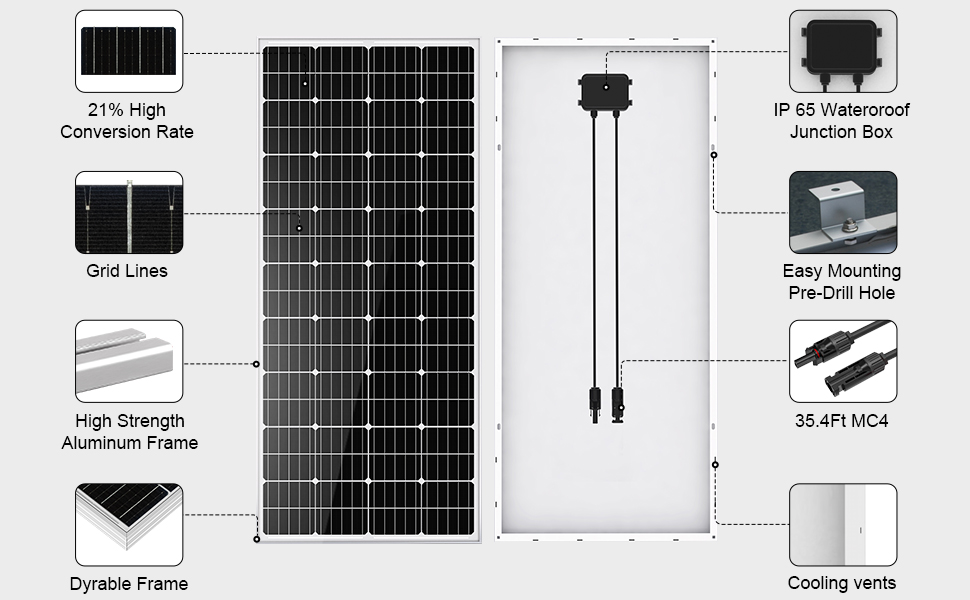

High-efficiency silicon solar cells
High-efficiency silicon solar cells ensure high performance of solar modules and create maximum power output, totally 23 testing procedure to do quality control.
Waterproof IP65 Rated Junction Box
With IP65 water-resistant material, it will protect from water splashing. Use 118 inch extension cable to run power station in the shade.
Easy install with pre-drilled holes
Easy to install with pre-drilled holes on the back of panels for fast mounting, securing and cooling.
Corrosion-resistant aluminum frame
Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades.
More safety
20A built-in LCD solar charge controller provides overcharge protection, reducing fire risk. Negative-ground charge controller for compatibility with your RV, boat, trailer, etc.
| Specifications |

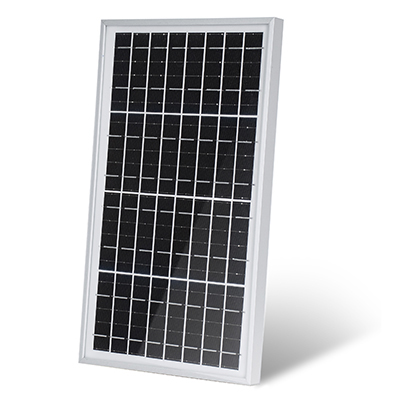

Rated power: 10W
Open Circuit Voltage (Voc): 20.6V
Peak voltage (Vmp): 17.3V
Short circuit current (Isc): 0.69A
Working current (Iop): 0.58A
Output tolerance: ±3%
Size: 13.3*8.1*0.7inches
Pre-installed cable: 3.28 feet

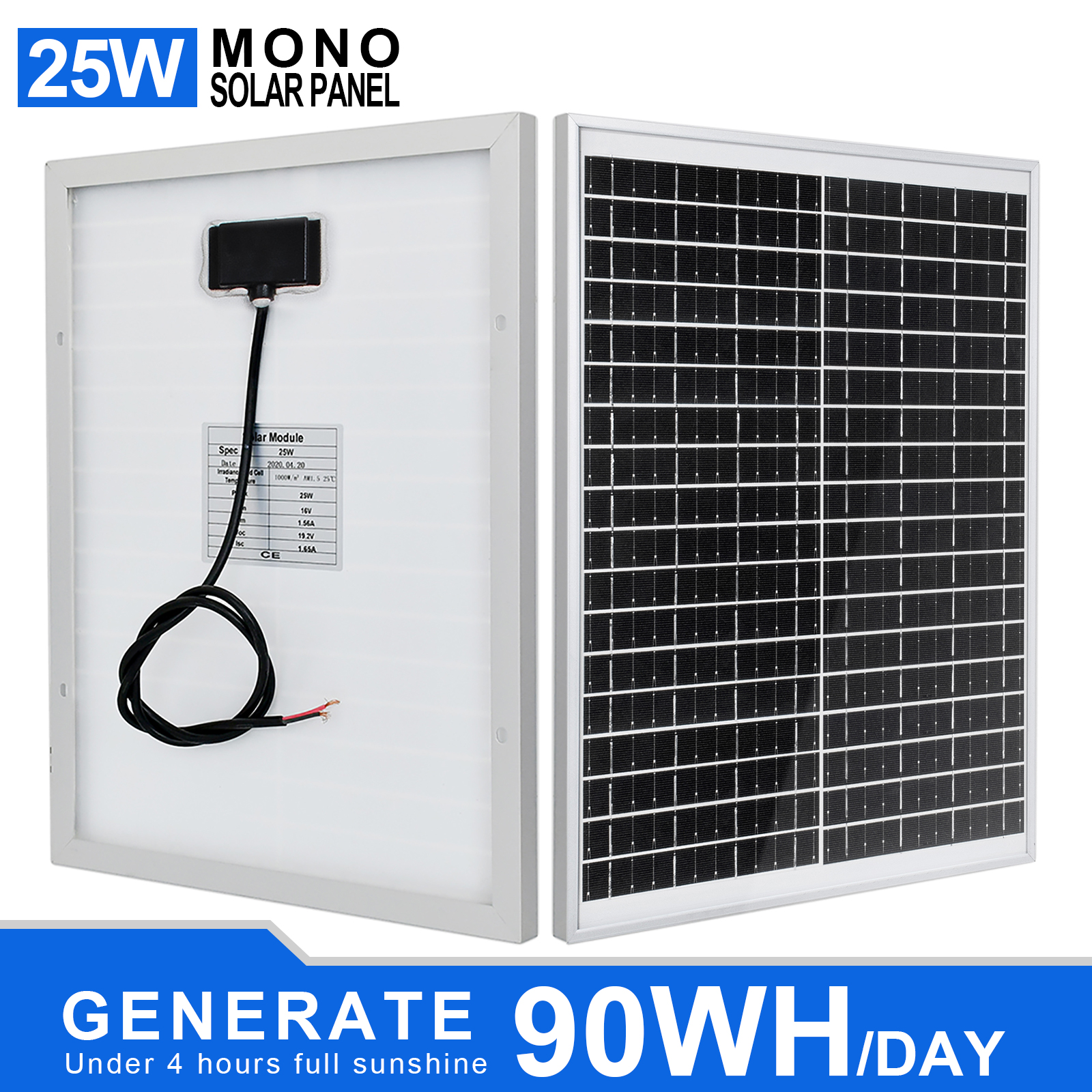

Rated Power: 25W
Voltage at Pmax(Vmp): 18V
Short Curcuit Current: 1.22A
Working current(lop): 1.11A
Short ciruit current: 1.22A
Size: 16.9*13.4*0.7inches
Pre-installed cable: 39inch/19AWG

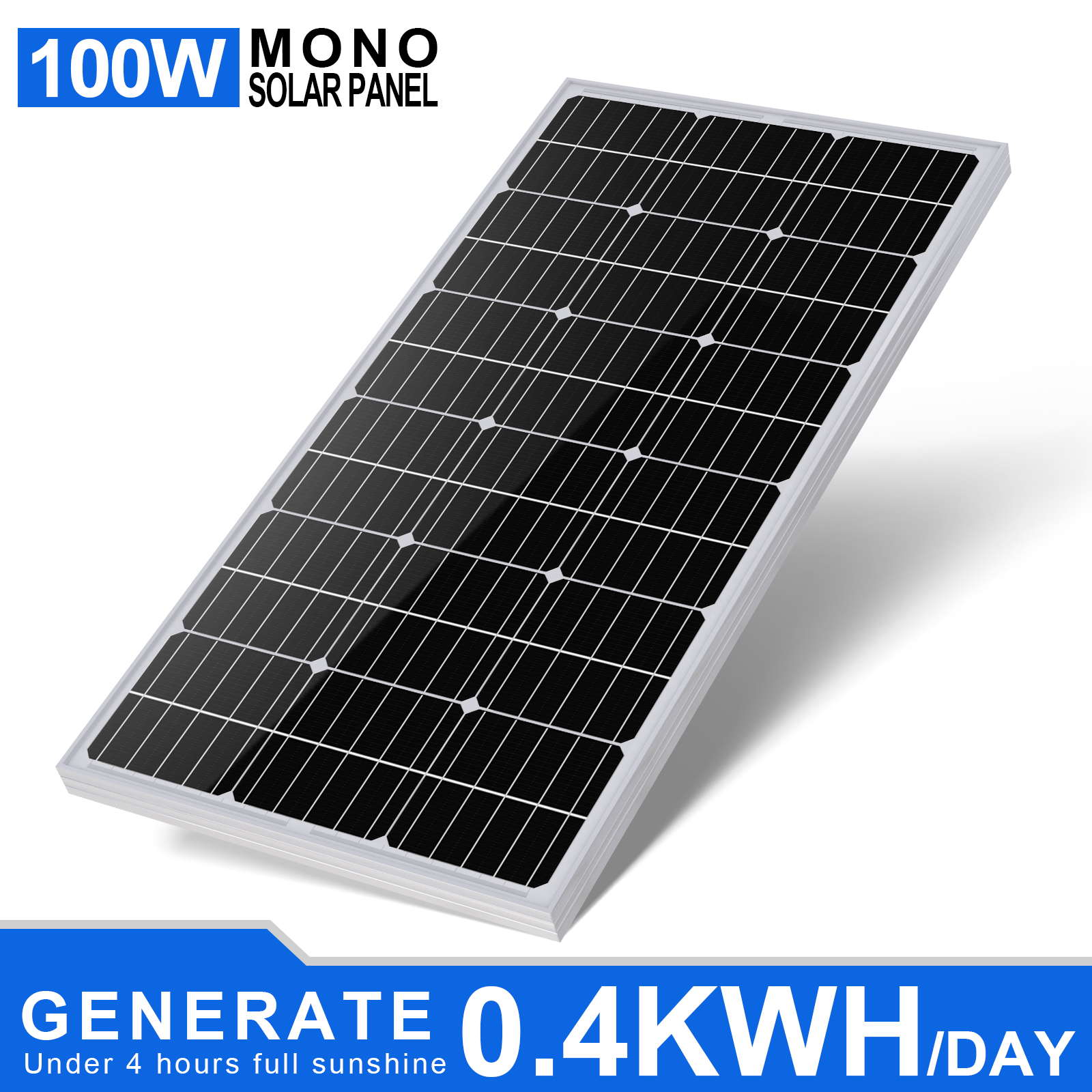

Rated Power: 100W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 6.13A
Working Current (Iop): 5.78A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 1010*510*35mm (39.8*20.1*1.4inch)
Weight: 8.6kg

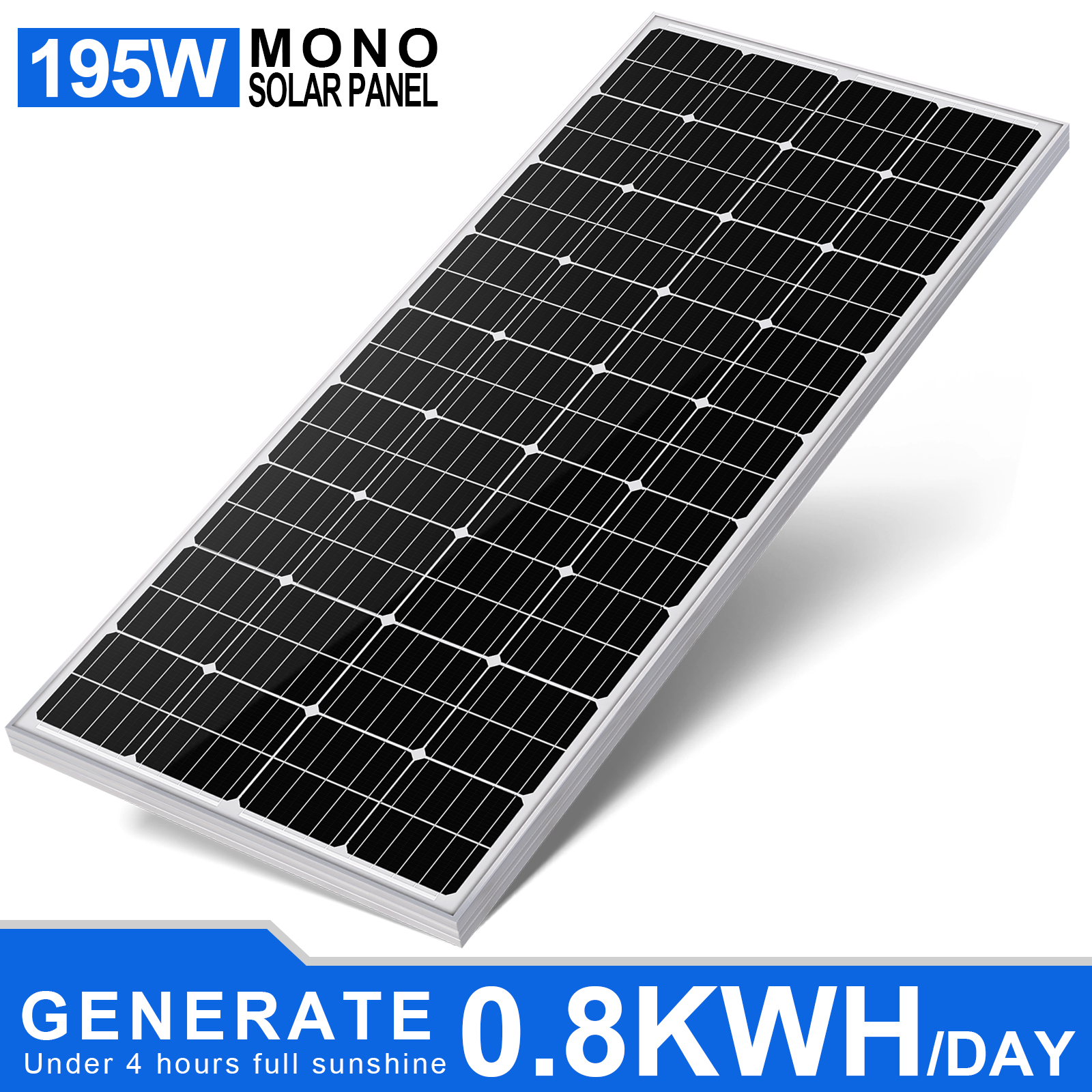

Rated Power: 195W
Open Circuit Voltage (Voc): 21.6V
Short Circuit Current (Isc): 10.83A
Working Current (Iop): 9.02A
Output Tolerance: ±3%
Temperature Range: -40℃ to +80℃
Size: 58.3*26.3*1.4 inch (1480*668*35 mm)
Weight: 29.2 lbs (13.2kg)
| Product Details |
| Package Customize |
| Manufacturer |
USER MANUAL
