PWM LCD Display Solar Charge Controller

PWM LCD Display Solar Charge Controller

A PWM (pulse width modulation) controller can be thought of as an (electronic) switch between the solar panels and the battery.

The PWM is a good low-cost option for smaller systems/where the efficiency of the system is not critical, e.g trickle charging/for solar panels with a maximum power voltage (Vmp) of up to 18V for charging a 12V battery (36V for 24V battery, etc).

  • Certificate :

    CE
  • Lead Time :

    20Days
  • Payment Accept :

    T/T, PayPal, Western Union
  • Warranty :

    5Years
  • MOQ :

    50
Features

Multiple Protection Functions

ECO-WORTHY solar controller has short-circuit protection, open-circuit protection,reverse protection, over-load protection. Fully 3-stage PWM charge management, improve system efficiency and prolong the life span of the battery

Battery Type

The charge regulator is suitable for lead-acid batteries, gel batteries and lithium phosphate batteries. For protecting the lifespan of your battery, once the voltage of the battery drop below 8V, the solar controller will turn off automatically

LCD Display

Comes with a display that can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration, suitable for home, industrial, commercial etc.

Easy to Install and Operate

The charge controller should connect the battery first, then the solar panel, and finally the load! The disassembly sequence is contrary to the wiring order.Dual mosfet Reverse current protection, low heat production. ( Note: The charge controller will heat up when it is running. Please be careful to install the charger controller on a flat, well-ventilated place)

Specifications

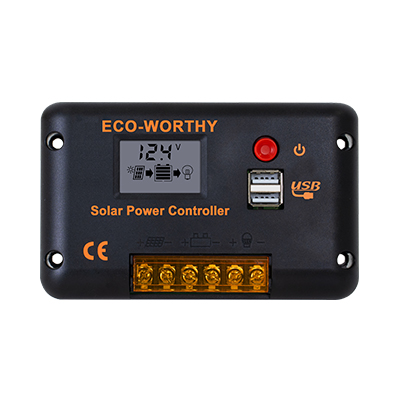

  • Max Charging Current: 30A

    Max Loading Current: 30A

    Rated Voltage: 12/24V

    Floating Charge Voltage: 13.7V/27.6V

    Cut-off Voltage of Discharge: 10.7V/21V

    Discharge Recovery Voltage: 12.6V/25V

    Self-consume: <15mA

    USB Output: 5V/2A

    Operating temperature: -20~+60℃

    Install hole size: 124*50mm

    Size/Weight: 138*85*30mm/150g

    Battery Type:AGM/GEL/Lithium batteries

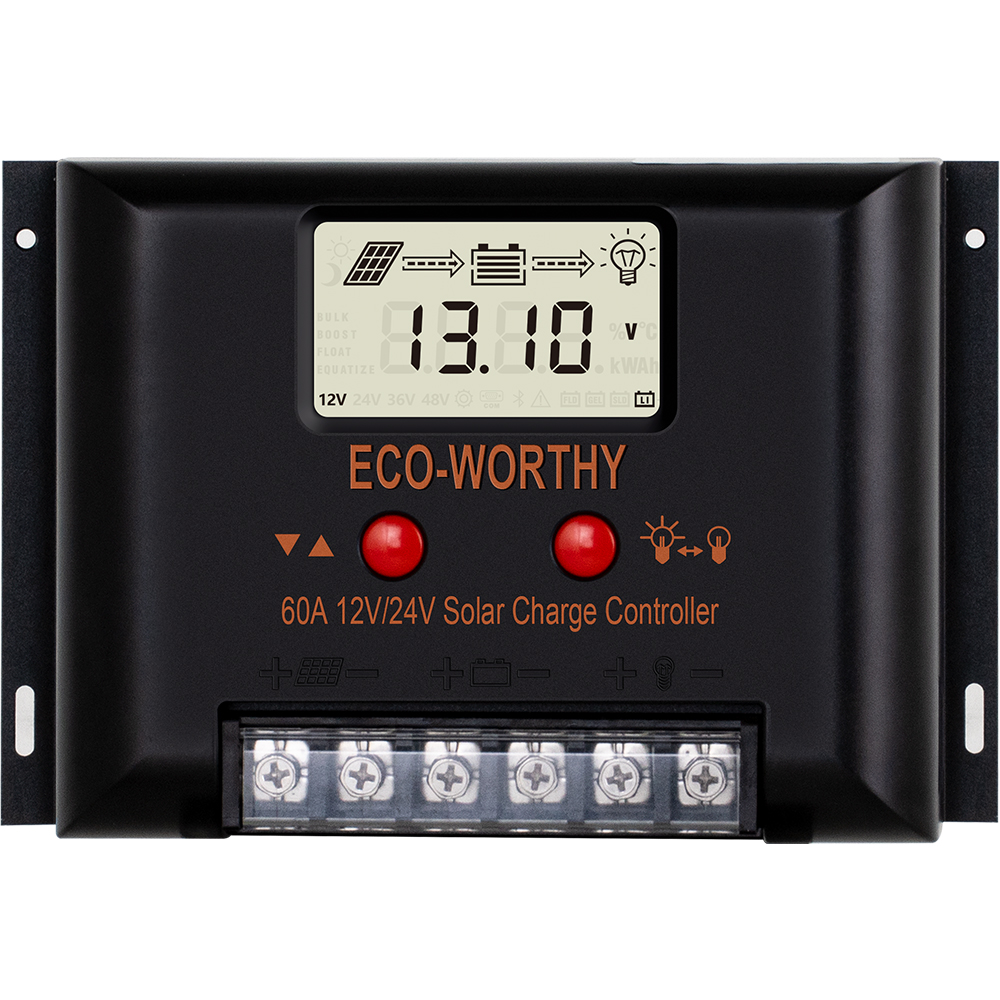

  • Max Charging Current: 60A

    Max Loading Current: 60A

    Rated Voltage: 12/24V/48V

    Floating Charge Voltage: 13.8V/27.6V/40.4V

    Cut-off Voltage of Discharge: 10.5V/21V/31.5V

    Discharge Recovery Voltage: 12.5V/25V/37.5V

    Self-consume: <10mA

    Operating temperature: -35℃~+75℃

    Weight: 1.43lbs

    Size: 7.44*5*2.13inch

  •

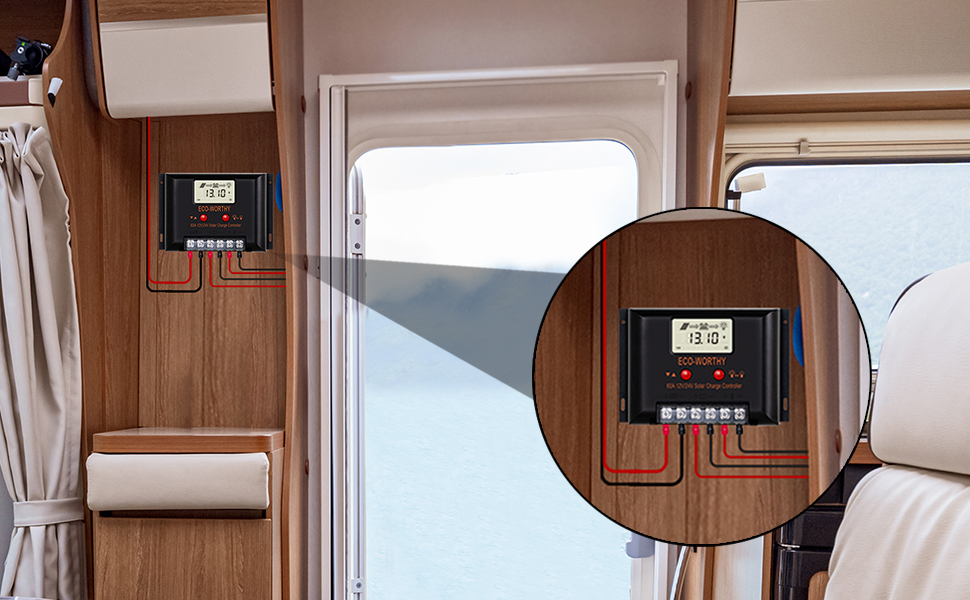

Usage Scenarios

Package Customize

Manufacturer



Leave a message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products

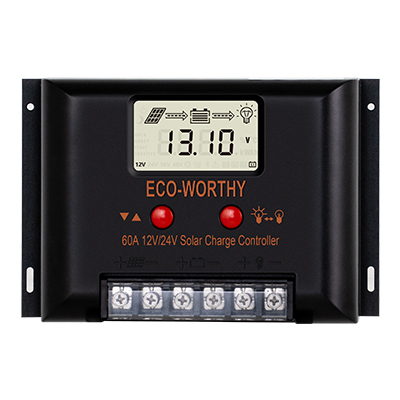

PWM LCD Display Solar Charge Controller
