3500W Solar Off-grid Inverter Charger 48V DC to 120V AC Split Phase Power Inverter
3500W Solar Off-grid Inverter Charger 48V DC to 120V AC Split Phase Power Inverter
3500W Solar Off-grid Inverter Charger 48V DC to 120V AC Split Phase Power Inverter
3500W Solar Off-grid Inverter Charger 48V DC to 120V AC Split Phase Power Inverter

3500W Solar Off-grid Inverter Charger 48V DC to 120V AC Split Phase Power Inverter

[Modes on Demand, Power with Ease] 4 charging modes: PV-priority、utility-priority、hybrid charging、only solar charging. 3 operating modes: PV-priority, utility-priority, and battery-priority. With 20ms switching uninterruptible power supply
[Superior Parallel-Connection Capability] Up to 6 devices can be connected in parallel, delivering a high power output of 21 KW. You can choose either single-phase or split-phase parallel connection, effortlessly meeting high-power electricity demands
[Versatile Battery Compatibility] Start lithium batteries via PV solar or mains. Our system allows the use of both lead-acid batteries and lithium batteries, offering you the flexibility to choose the power storage solution that best suits your needs

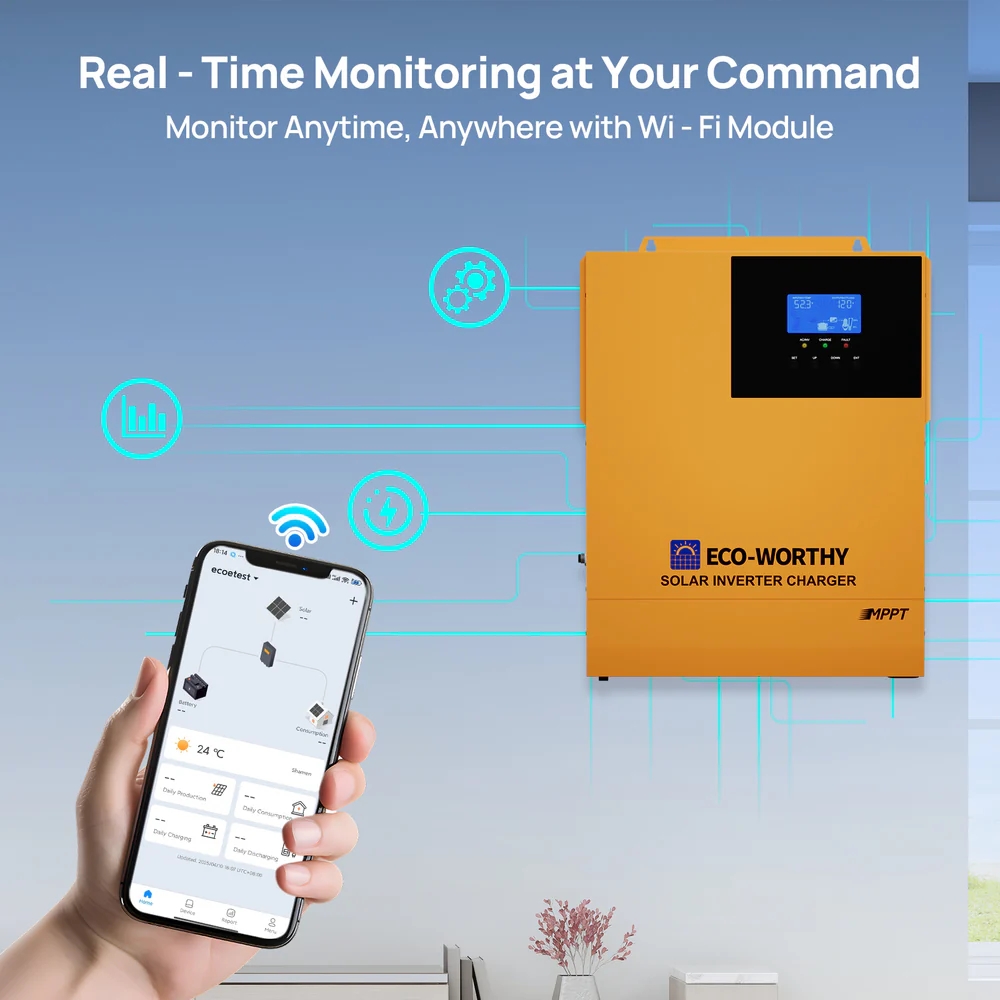

[Convenient Adjustment & Monitoring] Our product allows easy parameter setting via the LCD screen and buttons. Meanwhile, the ability to remotely monitor various data in real time on your phone ensures worry - free use

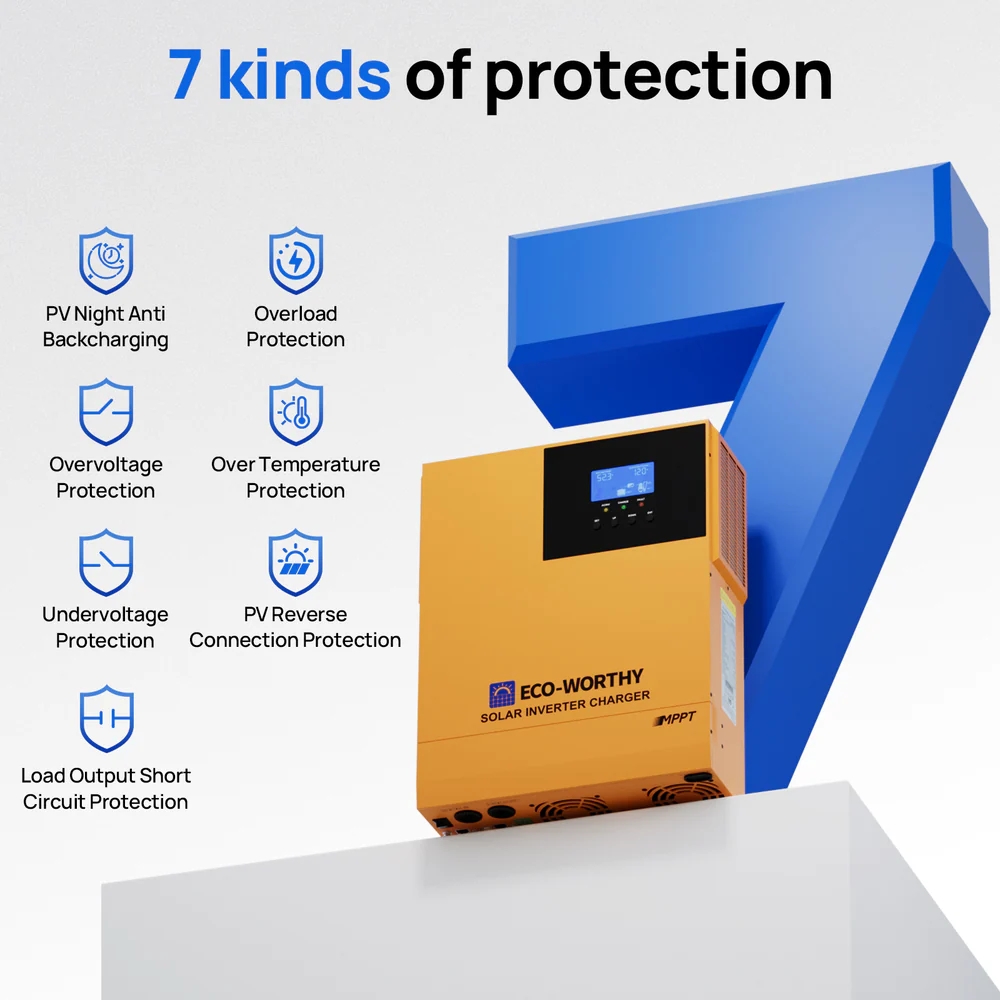

[Seven Layers of Protection] Our product is equipped with seven protection functions, such as short-circuit protection, overload protection, and reverse connection protection. Say goodbye to potential electrical hazards and fully enjoy a safe life

  • MOQ :

    10

[Modes on Demand, Power with Ease] 4 charging modes: PV-priority、utility-priority、hybrid charging、only solar charging. 3 operating modes: PV-priority, utility-priority, and battery-priority. With 20ms switching uninterruptible power supply
[Superior Parallel-Connection Capability] Up to 6 devices can be connected in parallel, delivering a high power output of 21 KW. You can choose either single-phase or split-phase parallel connection, effortlessly meeting high-power electricity demands
[Versatile Battery Compatibility] Start lithium batteries via PV solar or mains. Our system allows the use of both lead-acid batteries and lithium batteries, offering you the flexibility to choose the power storage solution that best suits your needs
[Convenient Adjustment & Monitoring] Our product allows easy parameter setting via the LCD screen and buttons. Meanwhile, the ability to remotely monitor various data in real time on your phone ensures worry - free use
[Seven Layers of Protection] Our product is equipped with seven protection functions, such as short-circuit protection, overload protection, and reverse connection protection. Say goodbye to potential electrical hazards and fully enjoy a safe life



AC Input Mode
Rated Input Voltage: 110/120VAC Input Voltage Range: 90V-140VAC
Frequency: 50Hz/60Hz(auto detect) Overload/Short Circuit Protection: Circuit breaker
Efficiency: 92% AC Reverse Protection: Available
Max Bypass Overload Current: 40A
Invert Mode
Output Voltage Waveform: Pure Sine Wave Rated Output Power: 3500W
Rated Output Voltage: 120VAC Peak Power: 6000W
Bypass Breaker: 40A Rated Battery Input Voltage: 48V
Min Starting Voltage: 44V Power Saving Mode: Load ≤50W
AC Charging Mode
Battery Type: Lead acid or lithium battery Max Charge Current: 40A
Charge Voltage Range: 40-60VDC Overcharge Protection: Alarm and turn off charging after 1 minute
PV Charging Mode
Max Input Power: 5000W PV Charging Current Range:0-80A(can be set)
Max PV Open Circuit Voltage: 500VDC PV Operating Voltage Range: 120-450VDC
MPPT Voltage Range: 120-450VDC Battery Voltage Range: 40-60VDC
Max Output Power: 4400W Charging Short Circuit Protection: Blown fuse
