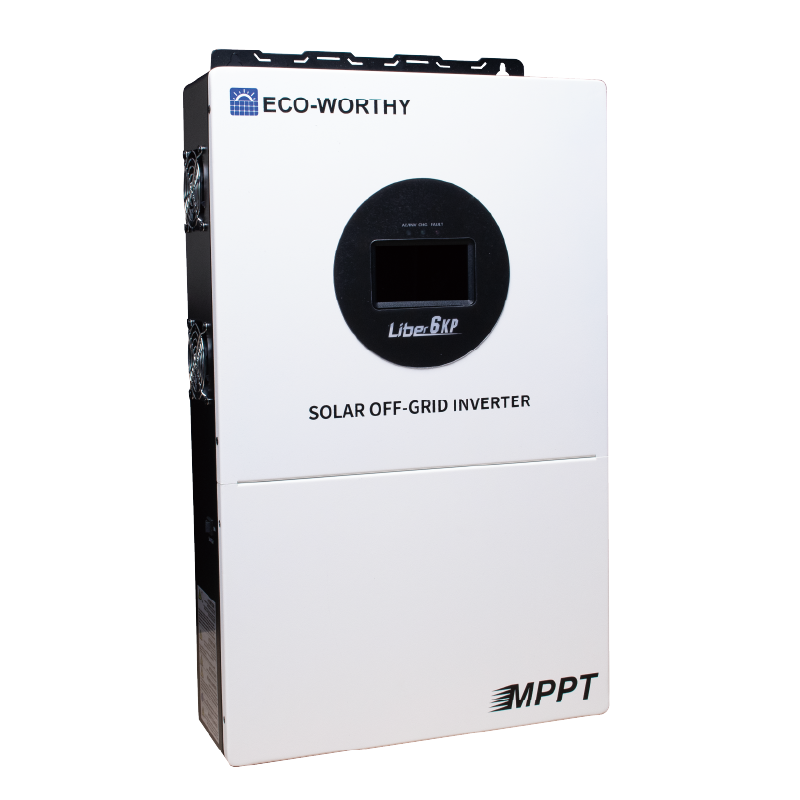

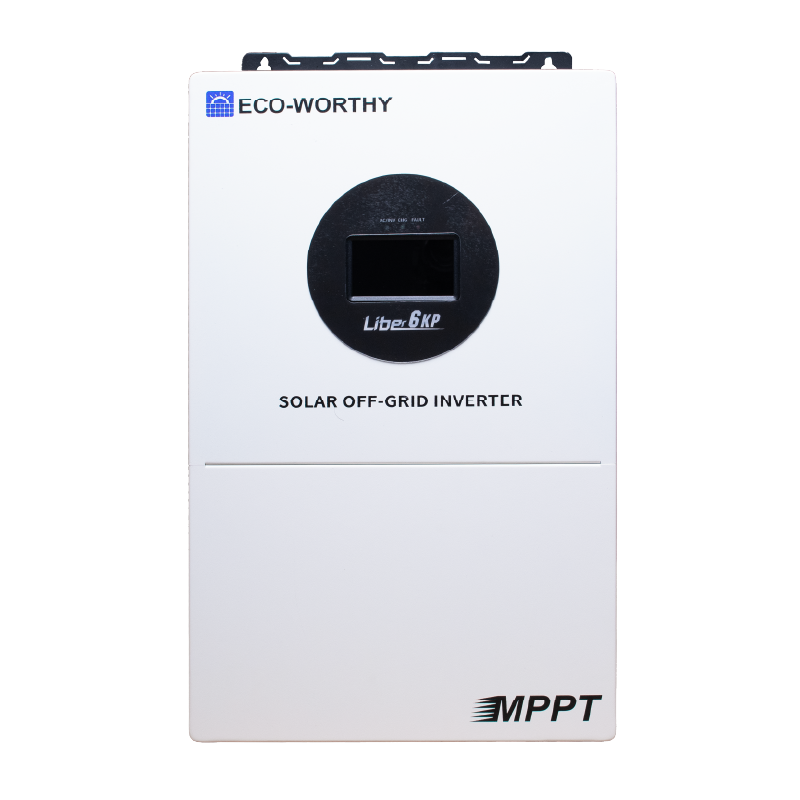

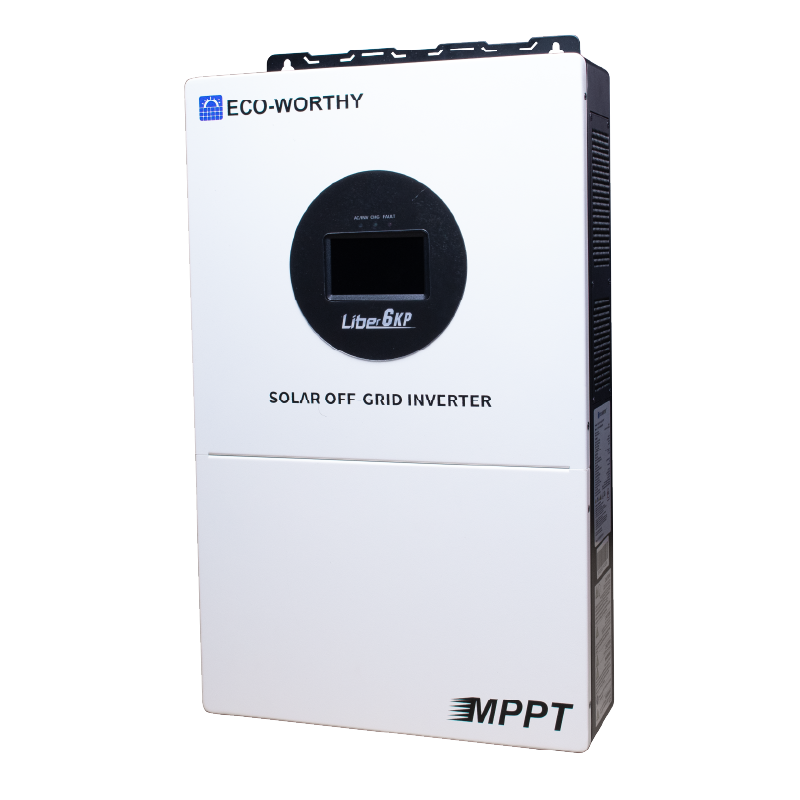

    Liber 6kP Solar Off-grid Split-phase Inverter

    The 6000W Split-Phase All-in-One Inverter converts 48V DC to split-phase 240V AC and integrates a 9000W MPPT solar charge controller with a 500VDC open-circuit voltage and 125-425VDC MPPT range.

      • certification (7)
      • certification (3)
      • certification (5)
      • certification (4)
      • certification (1)
      • certification (6)
      Contact us
      product details
      Specification
      download
      The 6000W Split-Phase All-in-One Inverter converts 48V DC to split-phase 240V AC and integrates a 9000W MPPT solar charge controller with a 500VDC open-circuit voltage and 125-425VDC MPPT range. It supports multiple operation modes (UTL, SOL, SBU, and SUB), offering flexible power management between solar, battery, and grid sources. With three charging options—hybrid, limited solar, and pure solar—the inverter ensures safe and efficient charging through comprehensive protection features and BMS communication for server rack batteries. Its LED capacitive touchscreen enables easy setup, real-time monitoring, and quick fault diagnosis, complemented by dynamic LED indicators. Ideal for home backup systems and off-grid cabins, it can reliably power large split-phase appliances such as air conditioners, water heaters, and washing machines.

      Features

      High Power

      6,000W rated continuous output power, scalable up to 36kW with 6 units in parallel.

      Impressive Solar Mppt

      9KW Solar Input Capacity,500VDC Solar Input Voltage,120A Solar Charge Current.

      120V/240V Split Phase

      Two separate 120V circuits, for both 120Vac/240Vac

      appliances,compatibility with your electrical infrastructure.

      Closed Loop Available

      Real-time, two-way exchange of critical battery data (such

      as SOC, voltage, current, tempe.),compatible with

      eco-worthy batteries and other batteries using the

      PylonTech communication protocol.

      All-IN-ONE

      Included inverter, AC-DC charger,MPPT Solar charge,Wi

      fi and Bluetooth module in one unit.

      PLEASE NOTE

      Lithium batteries ship under Class 9 Dangerous Goods PI965 Section IA.Please contact your carrier company to determine their requirements for shipping.
      MSDS Sheets are available upon request.

      Float charging is not applicable to lithium iron phosphate batteries,long-tem float charging will accelerate battery aging or damage.
      If you have to set the float voltage for MPPT/PWM charge controller in solar system,we suggest to set it to (12V Battery)13.2V-13.6V,
      (24V Battery)26.4V-27.2V,(36V Battery)39.6V-40.8V,(48V Battery)52.8V-54.4V.
      Liber 6kP Solar Off-grid Split-phase Inverter detail (1)
      Liber 6kP Solar Off-grid Split-phase Inverter detail (2)
      Liber 6kP Solar Off-grid Split-phase Inverter detail (3)
      Liber 6kP Solar Off-grid Split-phase Inverter detail (4)
      ECO-INV-48V6000WES01
      Inverter Output
      Rated Output Power 6,000W
      Maximum Peak Power 12,000W
      Rated Output Voltage 120/240V(Single-phase/Split-phase)
      Motor Loading Capacity 4.8HP
      Rated Frequency 50/60Hz
      Output Waveform pure sine wave
      Switching Time 10ms (typical value)
      Battery
      Battery Type Lithium-ion battery / Lead-acid battery / User - defined
      Rated Battery Voltage 48V
      Voltage Range 40～60V
      Maximum Photovoltaic Charging Current 120A
      Maximum Mains/Generator Charging Current 100A
      Maximum Hybrid Charging Current 120A
      Photovoltaic Input
      Number of MPPT Routes 1
      Maximum Input Power 9000W
      Maximum Input Current 27A
      Maximum Open - circuit Voltage 500V
      MPPT Operating Voltage Range 125 - 425V
      Mains Power/Generator Input
      Input Voltage Range a.c.90V~140V
      Rated Frequency 60Hz,60Hz
      Current(maximum continuous) a.c.45A
      Efficiency
      MPPT Efficiency 0.999
      Maximum Efficiency of Battery Inversion 0.93
      General
      Dimensions(W*H*D) 412*662*130mm (Without Bracket)
      Weight 18.7（Net weight）
      Ingress protection Type 1，For indoor use only
      Operating ambient temperature -10~55℃,>45℃ Derating
      Noise Level @ 1m ≤45dB @ 25℃ (77°F)
      Type of Cooling Intelligent Air Cooling
      Warranty 1 Year
      Communication
      Communication method RS485/CAN//WiFi/Bluetooth/4G（Optional）
      Certification
      Overview UL 1741, CSA-C22.2 No.107.1-16, FCC SDOC Part 15B
