ECO-WORTHY PowerMega 314 Home ESS: 16.08kWh LiFePO4 Battery & 5kW Hybrid Inverter System - Scalable BESS for Residential & Commercial Projects
Industrial-Grade LiFePO4 Cells & Extreme Longevity
Utilizes 16 series-connected Grade-A 314Ah cells, delivering a massive 16.08kWh per unit. Engineered for mission-critical reliability, the system maintains >80% DOD after 10,000+ cycles, ensuring a 10-15 year operational lifespan with minimal maintenance—ideal for long-term PPA or leasing models.
Scalable Architecture for Large-Scale Projects

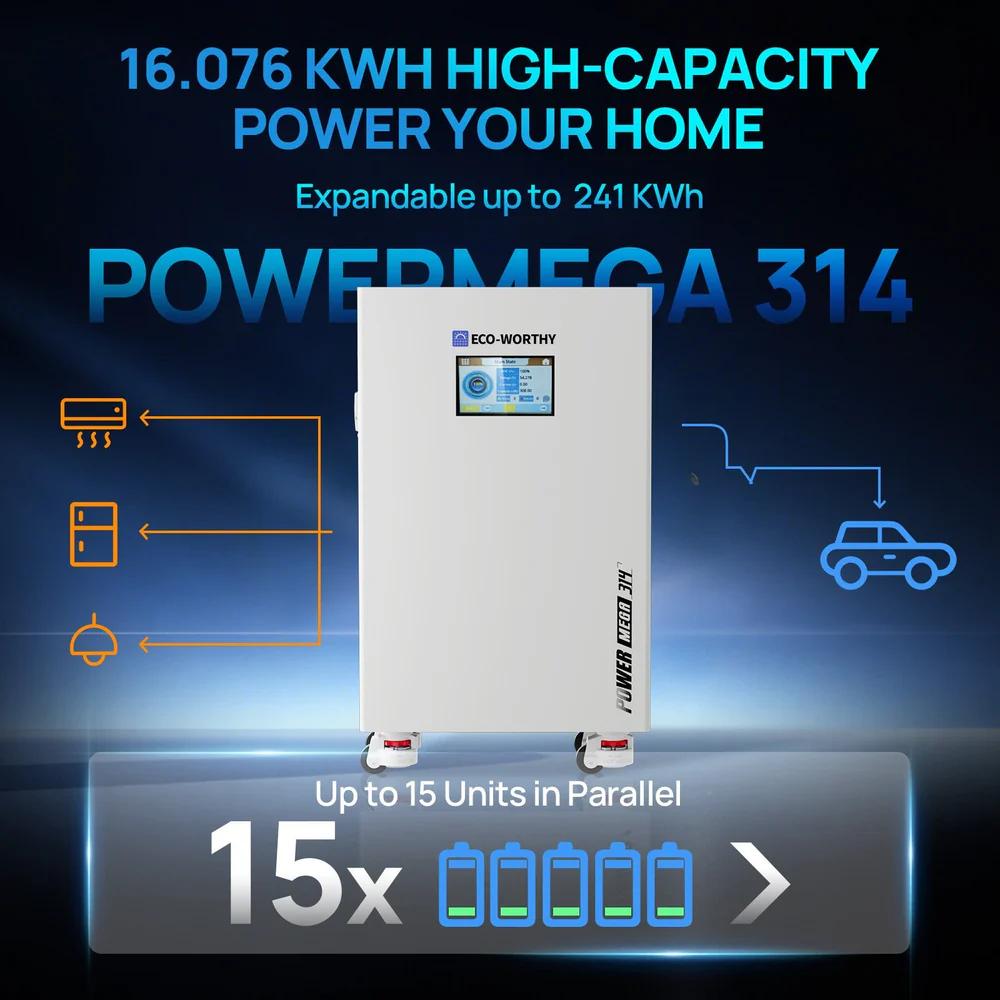

Designed for modular expansion to meet diverse energy demands. Supports up to 15 battery units in parallel (240kWh+ total capacity) and up to 6 inverters in parallel for a 30kW max output. This flexibility allows installers to service everything from high-end residential to small commercial (C&I) applications.
Advanced Multi-Phase Output & Grid Versatility
The integrated 5kW inverter supports versatile power configurations, including Single-Phase, Split-Phase (120V/240V), and Three-Phase (208V) via parallel units. This broad compatibility ensures seamless integration into standard North American electrical panels without complex rewiring.
Smart High-Efficiency MPPT & Charging Management
Features a high-performance MPPT controller with a 120-500V DC wide PV input range and 5500W max solar input. The system optimizes energy harvest in low-light conditions, while the 80A charging current ensures rapid battery replenishment, maximizing system uptime and ROI for end-users.
Enhanced Safety, Mobility & Certified Protection

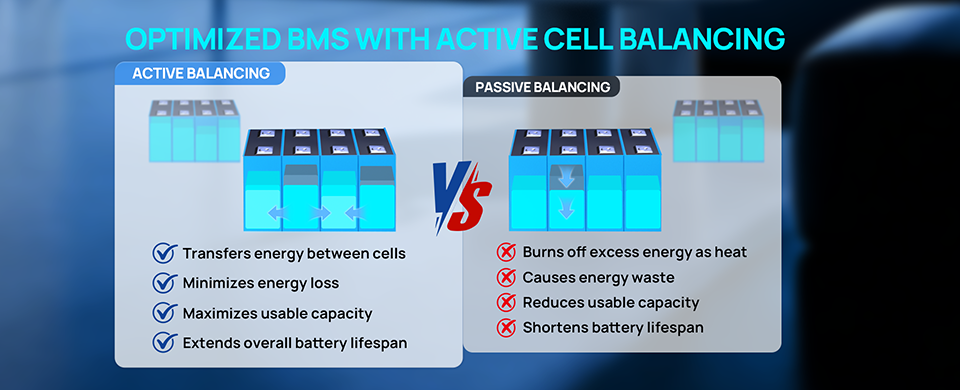

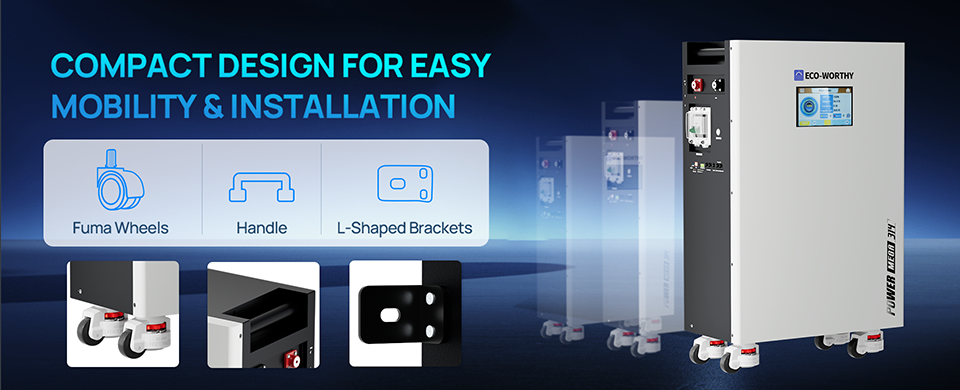

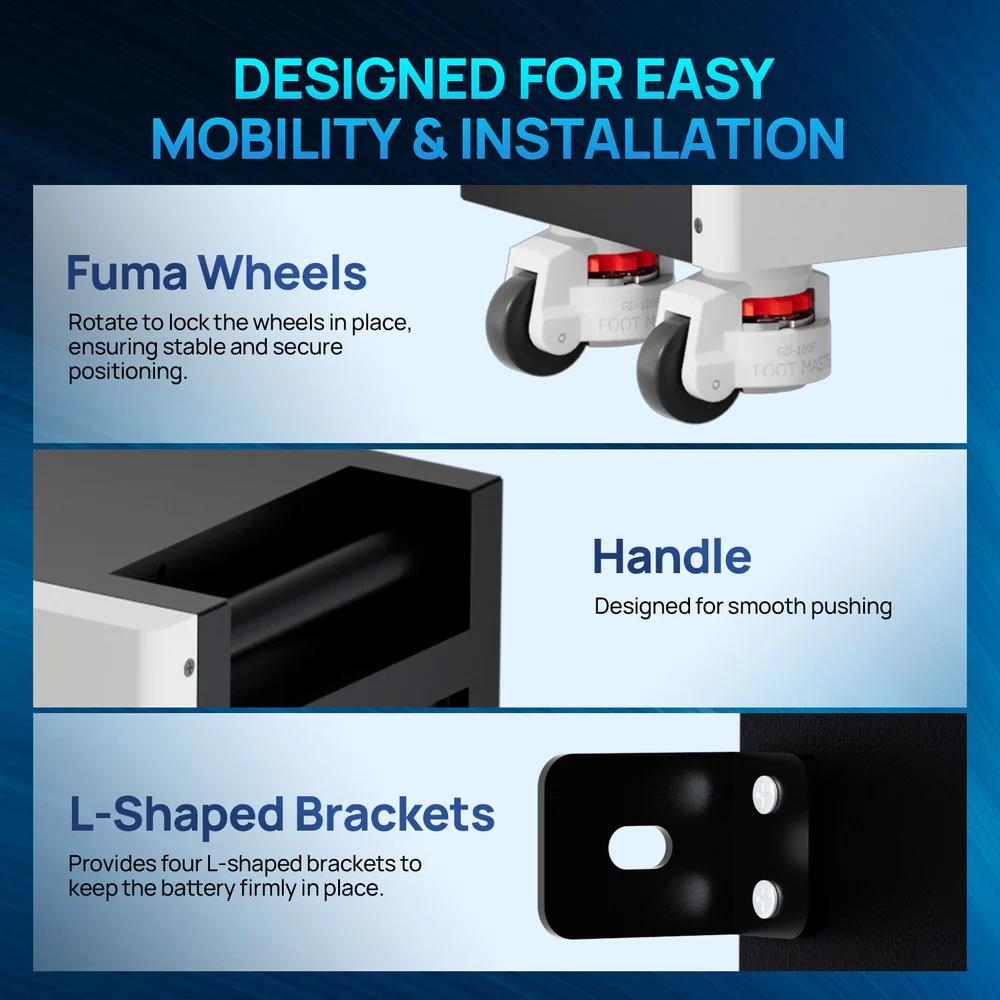

Equipped with a Professional-Grade BMS providing real-time monitoring and comprehensive protection (short circuit, overcurrent, thermal). Unlike fixed wall-mounted systems, the heavy-duty mobility design (100kg/wheel) significantly reduces installation labor costs and time, allowing for rapid deployment and easy site maintenance.
ECO-WORTHY PowerMega 314 16.08kWh Home Backup Battery with 10kW Inverter
| 51.2V 314Ah LiFePO4 Home Backup Battery | |
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Battery Weight: 279.99Ib/127kg | Battery Size: 33.13*19.69*10.24in/84.15*50*26cm |
| Standard charge current:150A | Standard discharge current:150A |
| Max.charge current:200A | Max. discharge current:200A(initial temp.≤35 C) |
| Max. parallel number:15pcs | Model No:ECO-LFP4831400 |
| 10kW 48V Off Grid All-in-one Inverter | |
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 125-425VDC |
| Max Input Power: 11000W（2*5500W） | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10kW |
| Rated Output: 120VAC/240VAC | Rated Battery Input Voltage: 48V |
| Peak Power: 20kW | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) | |
