ECO-WORTHY PowerMega 314: 16kWh LiFePO4 ESS Cluster with 10kW Hybrid Inverter – Scalable Residential & Commercial Energy Storage Solution
Tier-1 Grade-A Cells & 10,000+ Cycle Life
Engineered with 16 series-connected Grade-A 314Ah LiFePO4 cells, providing 16.08kWh per unit. The system maintains over 80% DOD after 10,000+ cycles, ensuring a 10-year+ service life and significantly lowering the Levelized Cost of Storage (LCOS) for commercial projects.
Industrial-Scale Scalability & Flexibility
Designed for versatile project requirements, the system supports up to 15 battery units in parallel and up to 6 inverters in parallel (60kW total output). It offers flexible single-phase or split-phase configurations, adapting seamlessly from high-end residential to light commercial (C&I) applications.
High-Performance Hybrid Integration & Compatibility

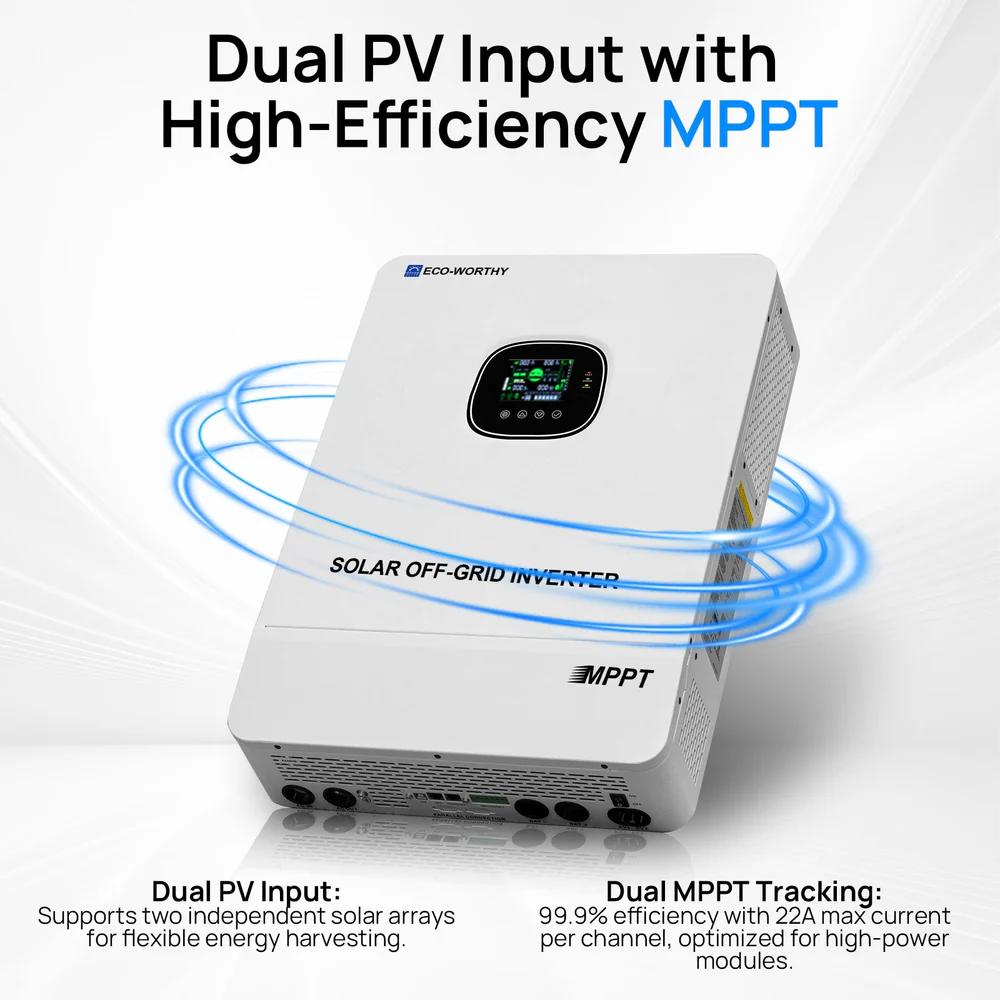

Features a 10kW hybrid inverter with a 20,000W surge capacity. It supports 10,000W PV input (125-425V DC) and battery-free operation mode, allowing PV DC to power loads directly. With 4 charging and 3 output modes, it ensures maximum energy optimization and grid stability.

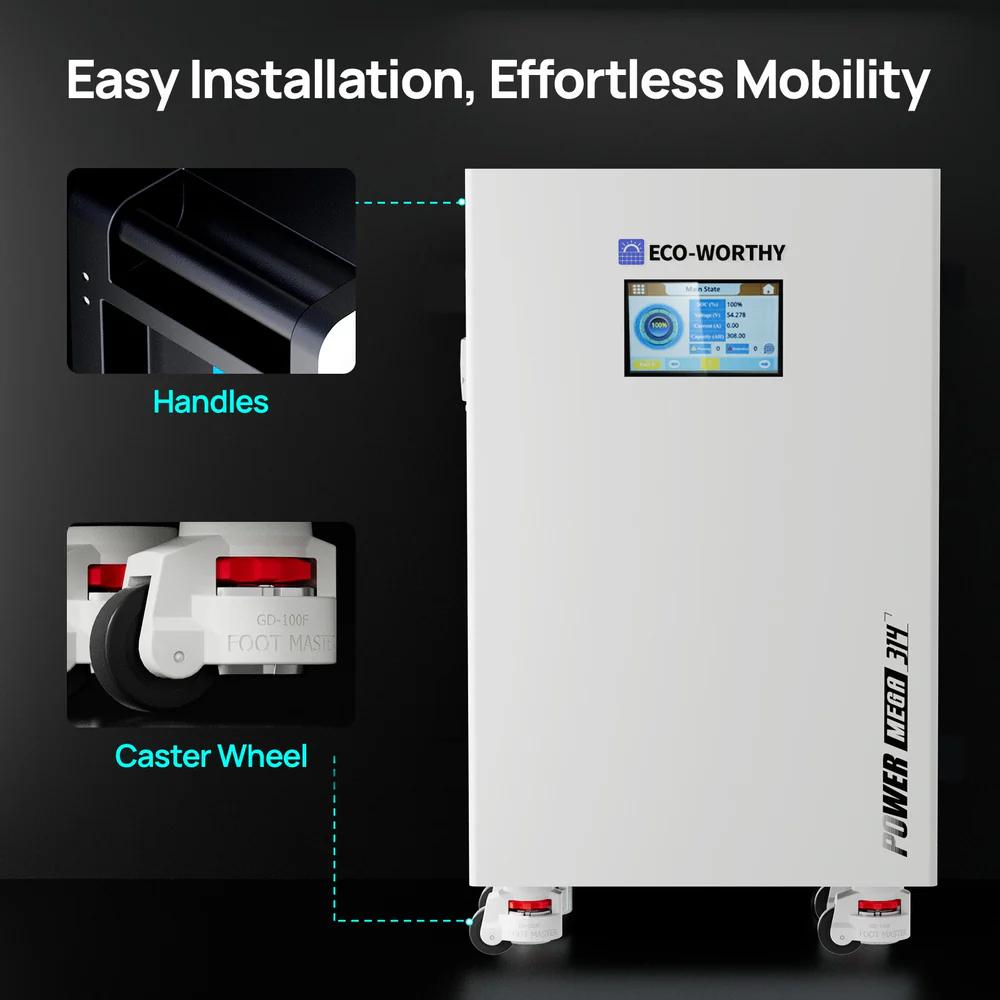

Labor-Efficient Design & Rapid Deployment
Optimized for installers, the floor-standing design features heavy-duty nylon wheels (100kg load capacity each). This eliminates the need for wall reinforcement or complex mounting brackets, drastically reducing on-site installation time and labor costs compared to traditional wall-mounted systems.
Advanced Safety & Intelligent Power Management

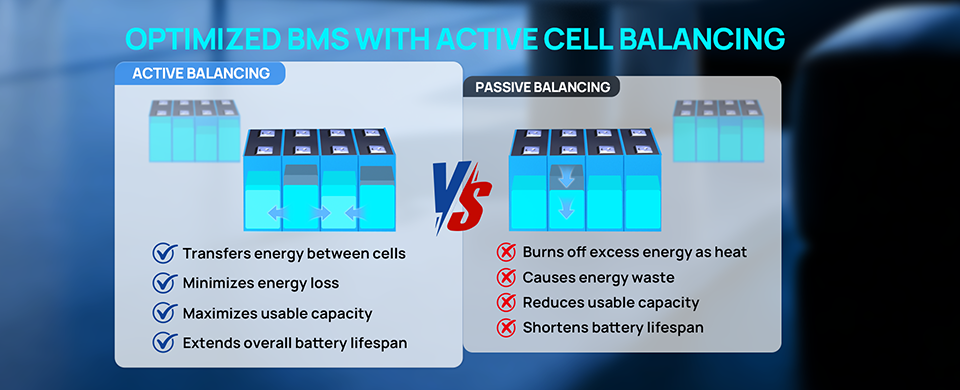

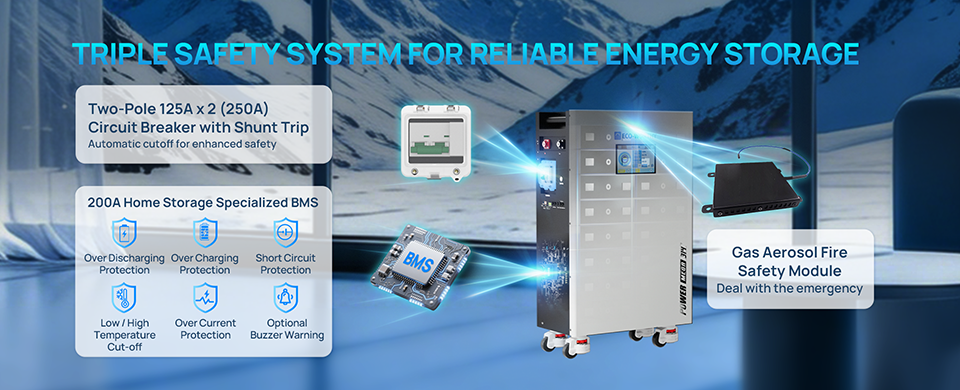

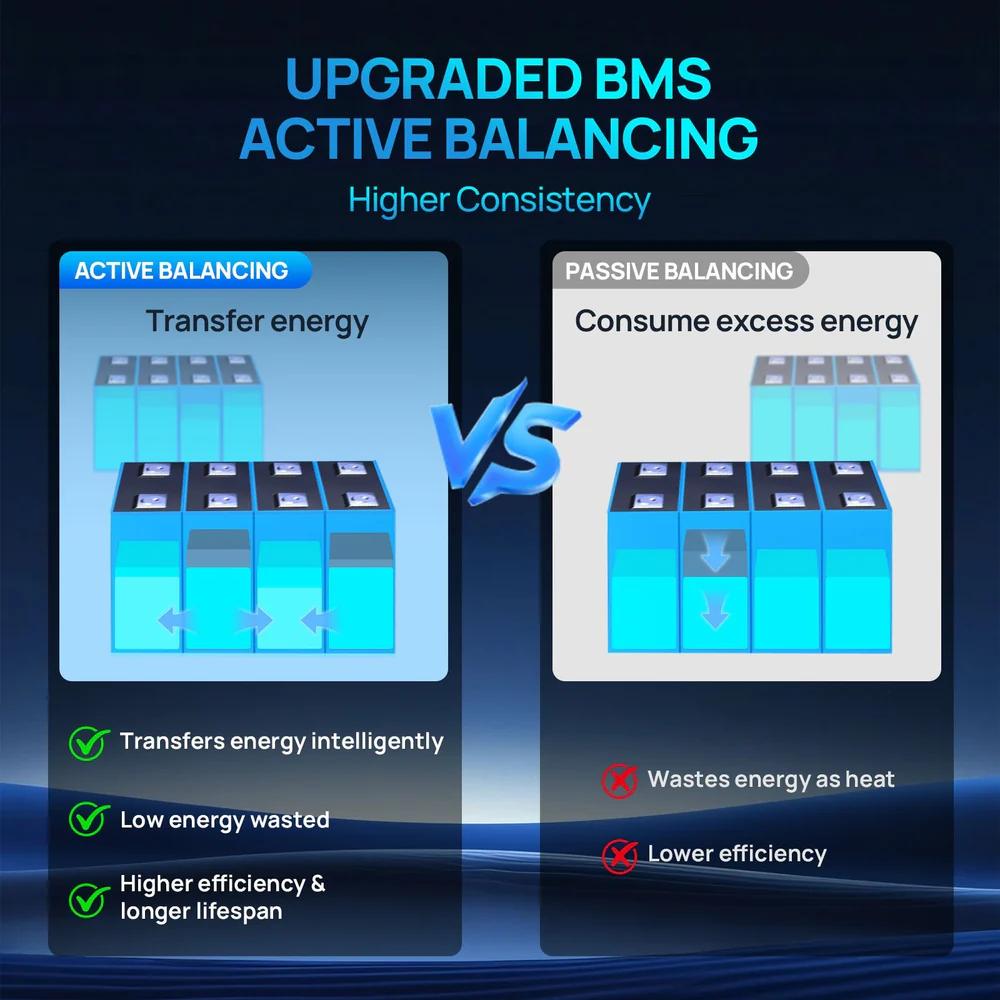

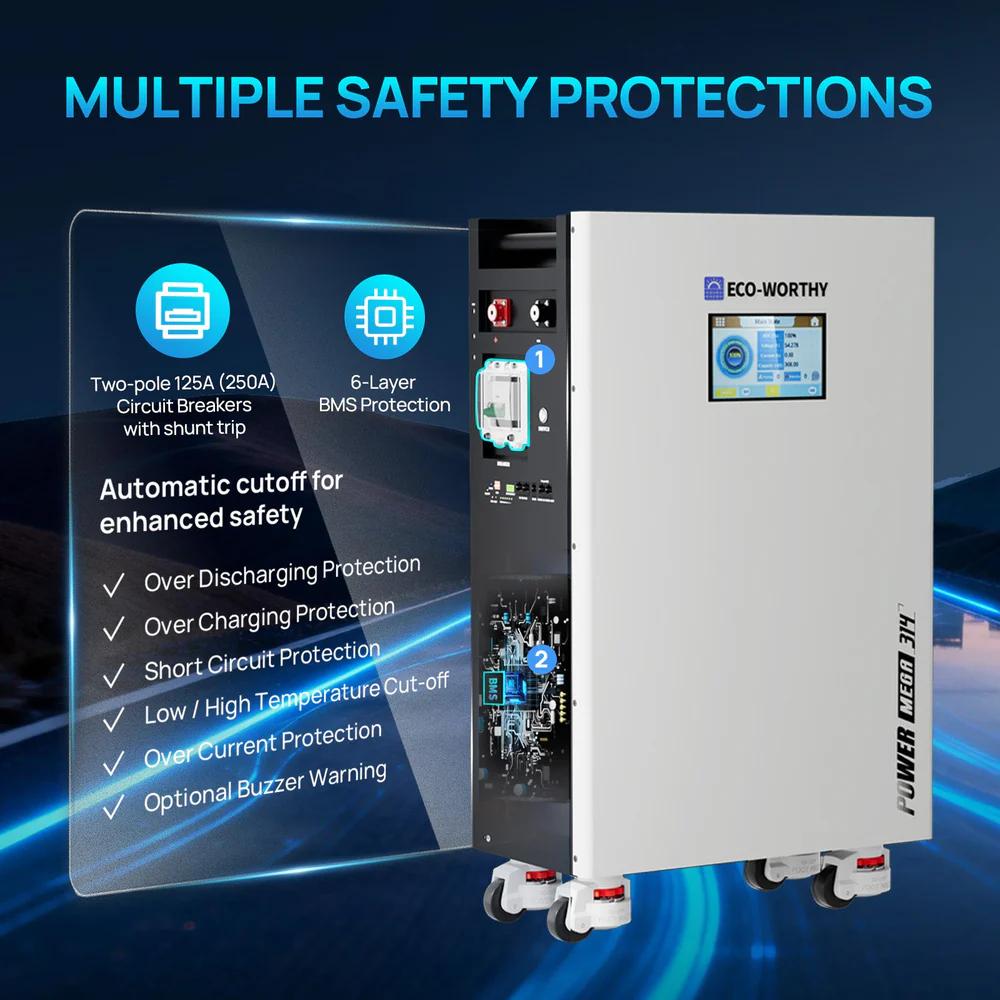

Equipped with an industrial-grade BMS providing comprehensive protection against overcharge, over-discharge, and thermal risks. The system includes real-time fault alerts and time-of-use (TOU) scheduling, allowing distributors to offer smart microgrid solutions that optimize energy usage based on peak/off-peak rates.

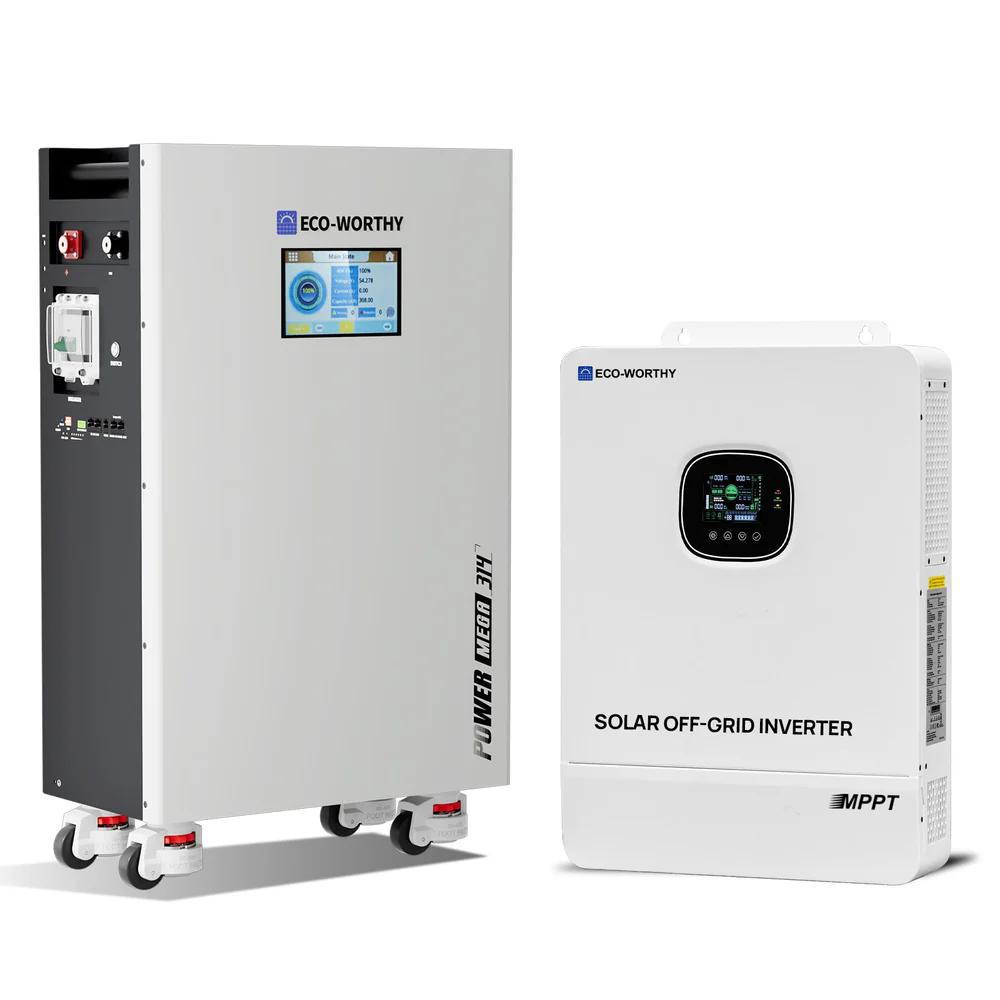

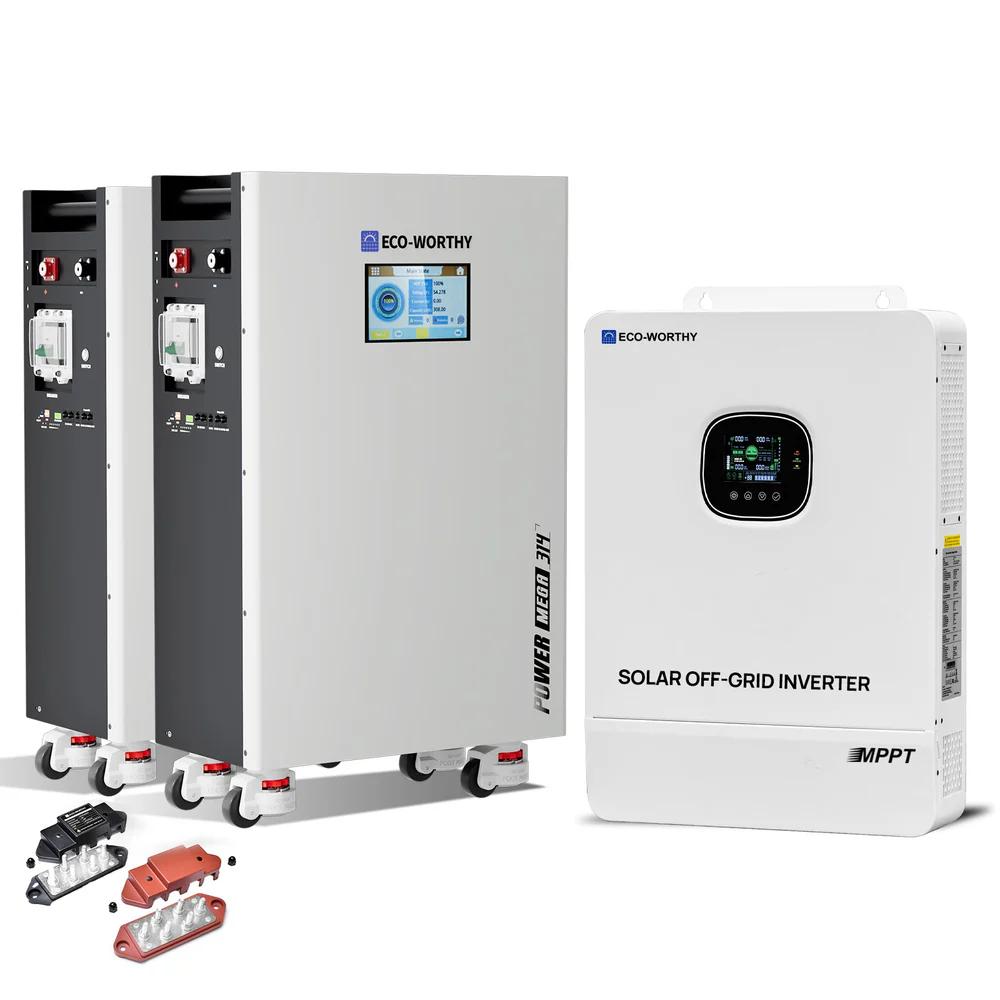

ECO-WORTHY PowerMega 314 16.08kWh Home Backup Battery with 10kW Inverter
| 51.2V 314Ah LiFePO4 Home Backup Battery | |
| Battery Capacity: 314Ah | Battery Power: 16.08kWh |
| Rated Voltage: 51.2V | Voltage Range: 40~58.4V |
| Maximum Charge/ Discharge Current: 200A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Battery Weight: 279.99Ib/127kg | Battery Size: 33.13*19.69*10.24in/84.15*50*26cm |
| Standard charge current:150A | Standard discharge current:150A |
| Max.charge current:200A | Max. discharge current:200A(initial temp.≤35 C) |
| Max. parallel number:15pcs | Model No:ECO-LFP4831400 |
| 10kW 48V Off Grid All-in-one Inverter | |
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 125-425VDC |
| Max Input Power: 11000W（2*5500W） | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10kW |
| Rated Output: 120VAC/240VAC | Rated Battery Input Voltage: 48V |
| Peak Power: 20kW | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) | |
