ECO-WORTHY Complete Off-Grid Solar Power System - 10000W 120/240V Output | 20.48kWh/61.44kWh Lithium Battery
FAQ
-
Q1: What warranty is included with this solar kit?
-
Q2: Can l expand this system in the future?
-
Q3: How do I install the system?
-
Q4: How is the kit shipped?
-
Q5: Will I be able to track my order and deliveries?
-
Q6: What's Your Return Policy?
-
Q7: What happens if stuff arrives damaged?

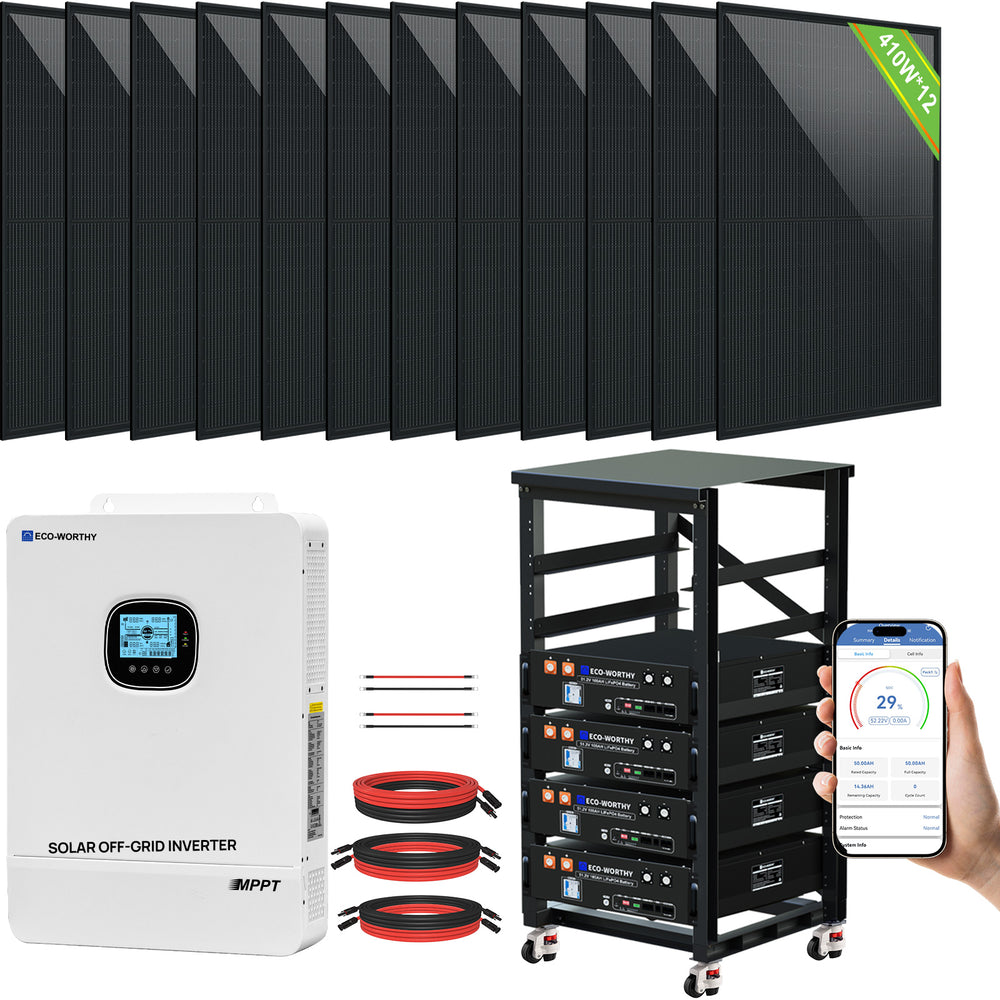

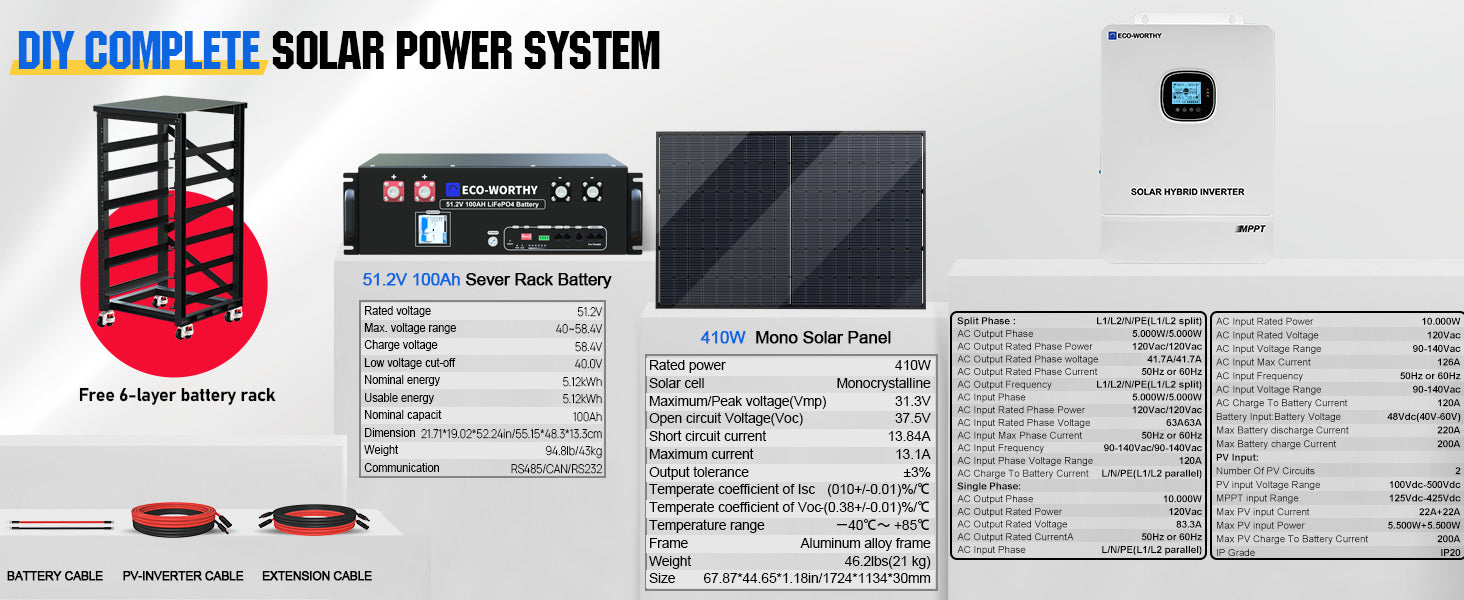

Package Includes

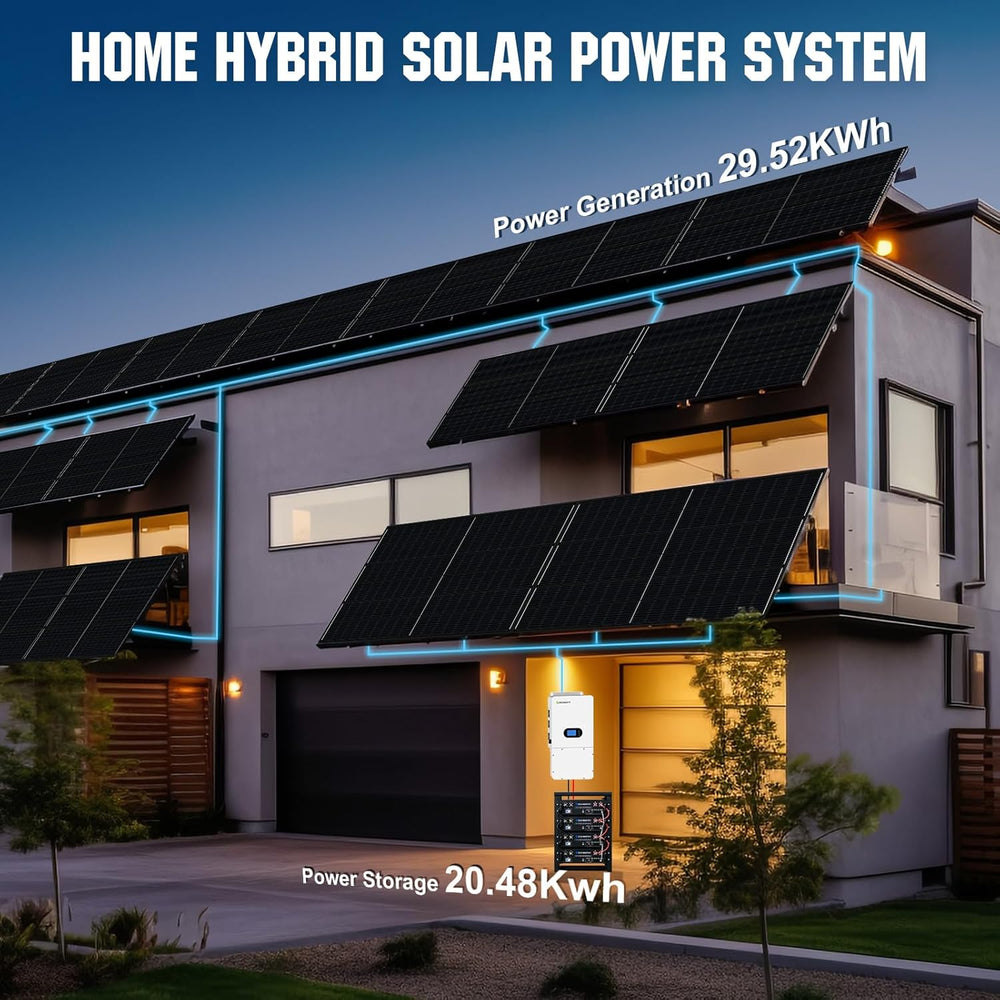

4920W PV&20.48kWh Battery
12xECO-WORTHY & 410W SOLAR PANEL-BLACK
1xECO-WORTHY 10000W ALL-IN-ONE OFF-GRID INVERTER
1xPV-INVERTER CABLE
2xPV EXTENSION CABLE
4xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY

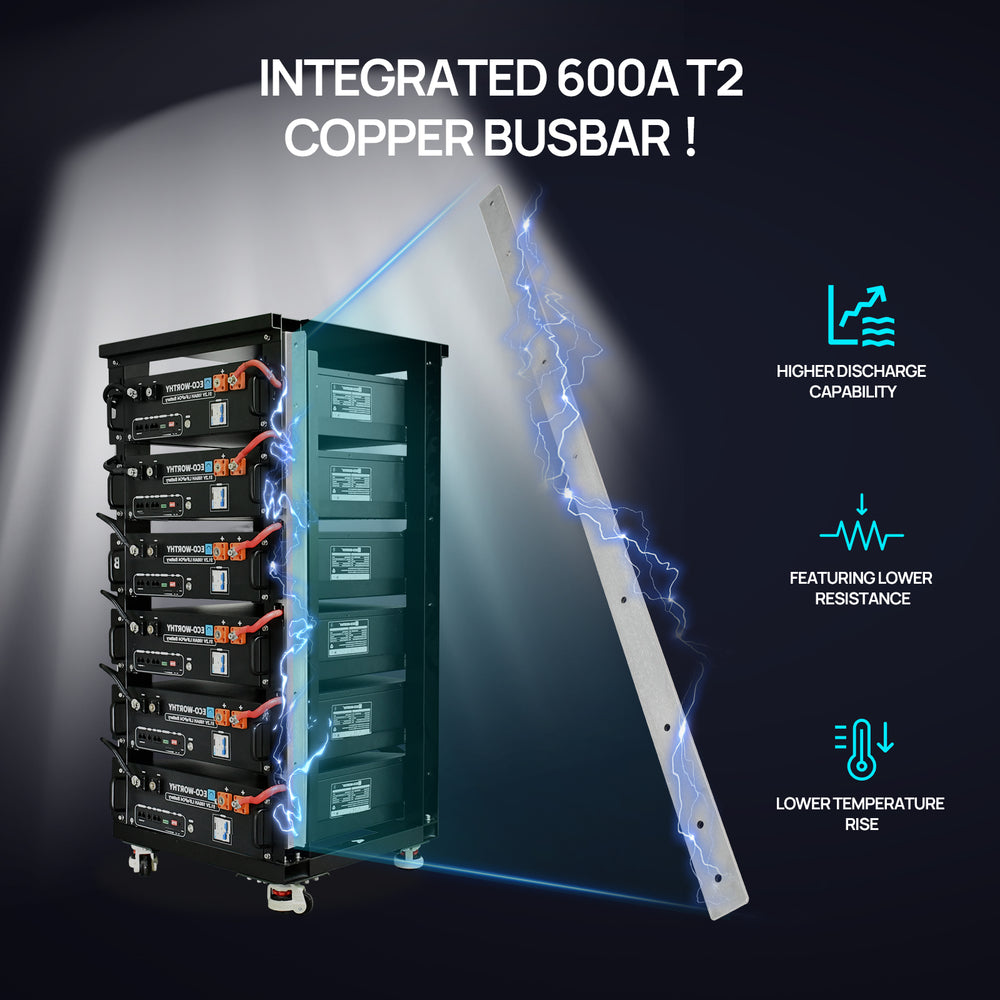

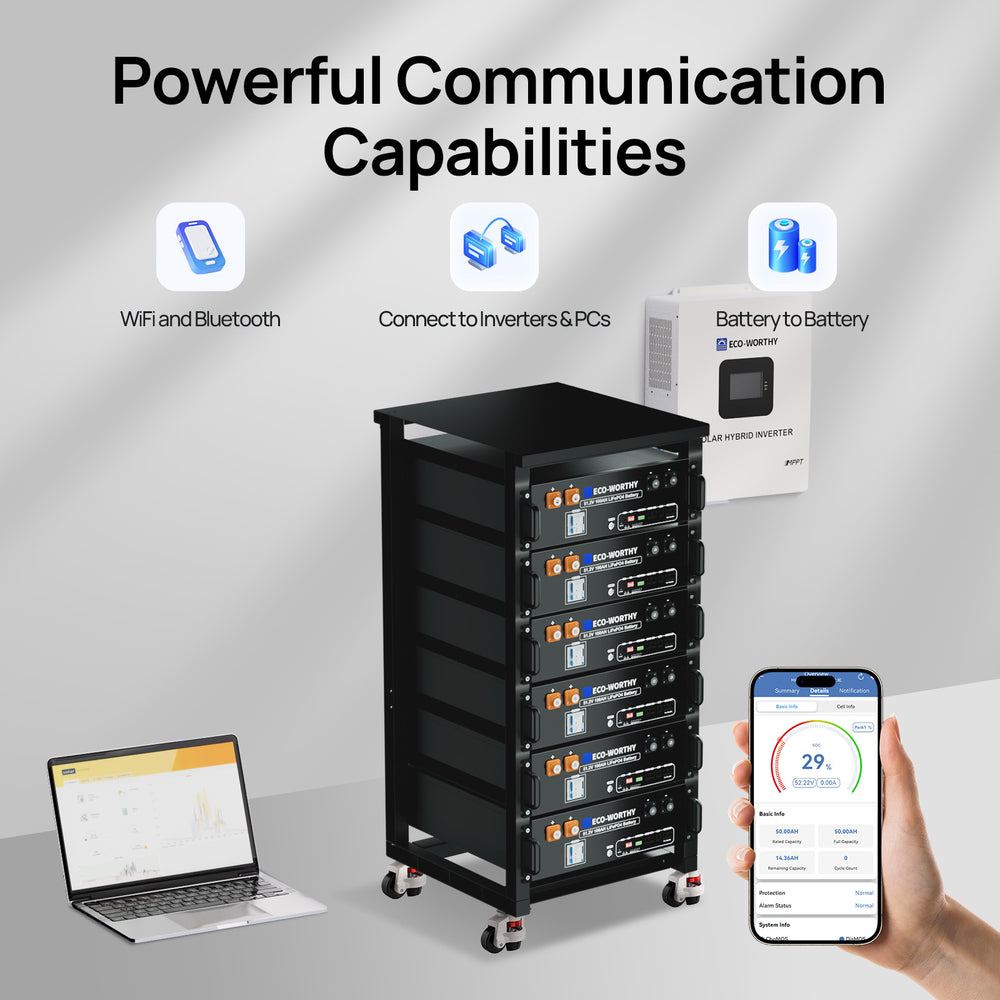

1xECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

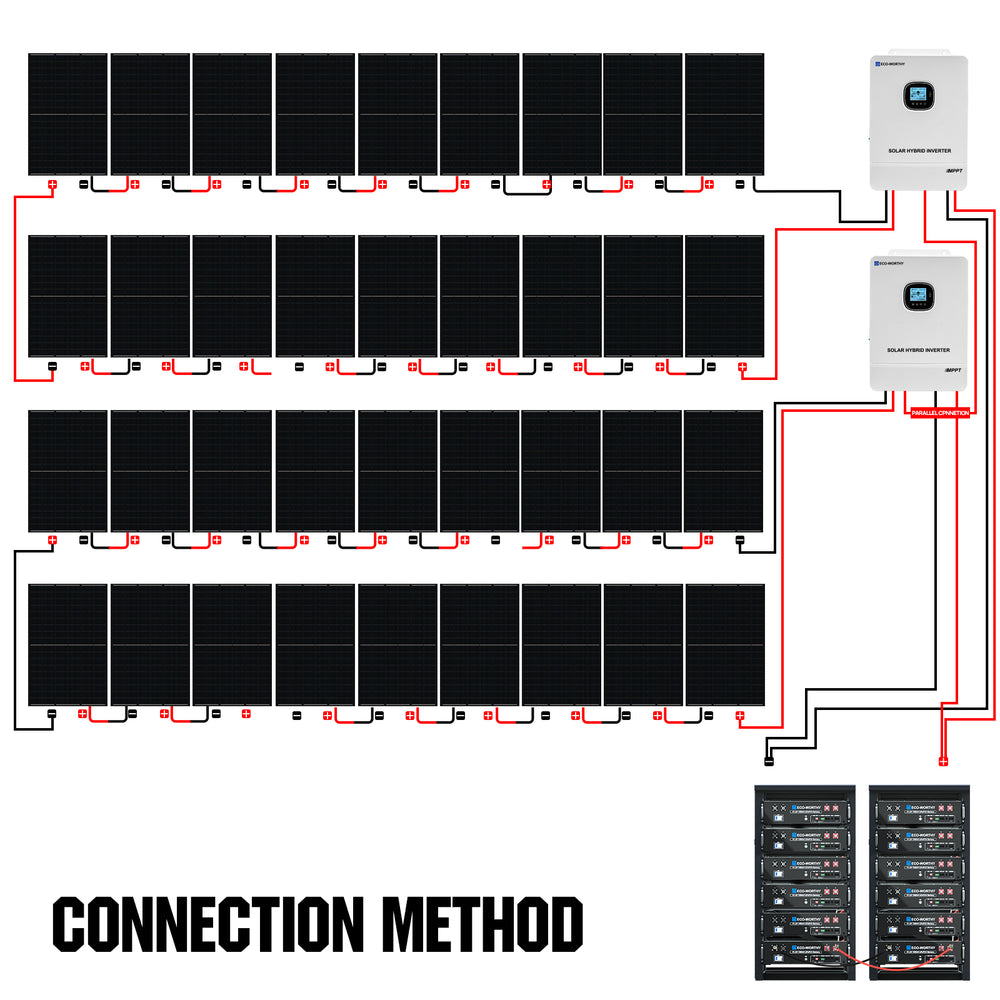

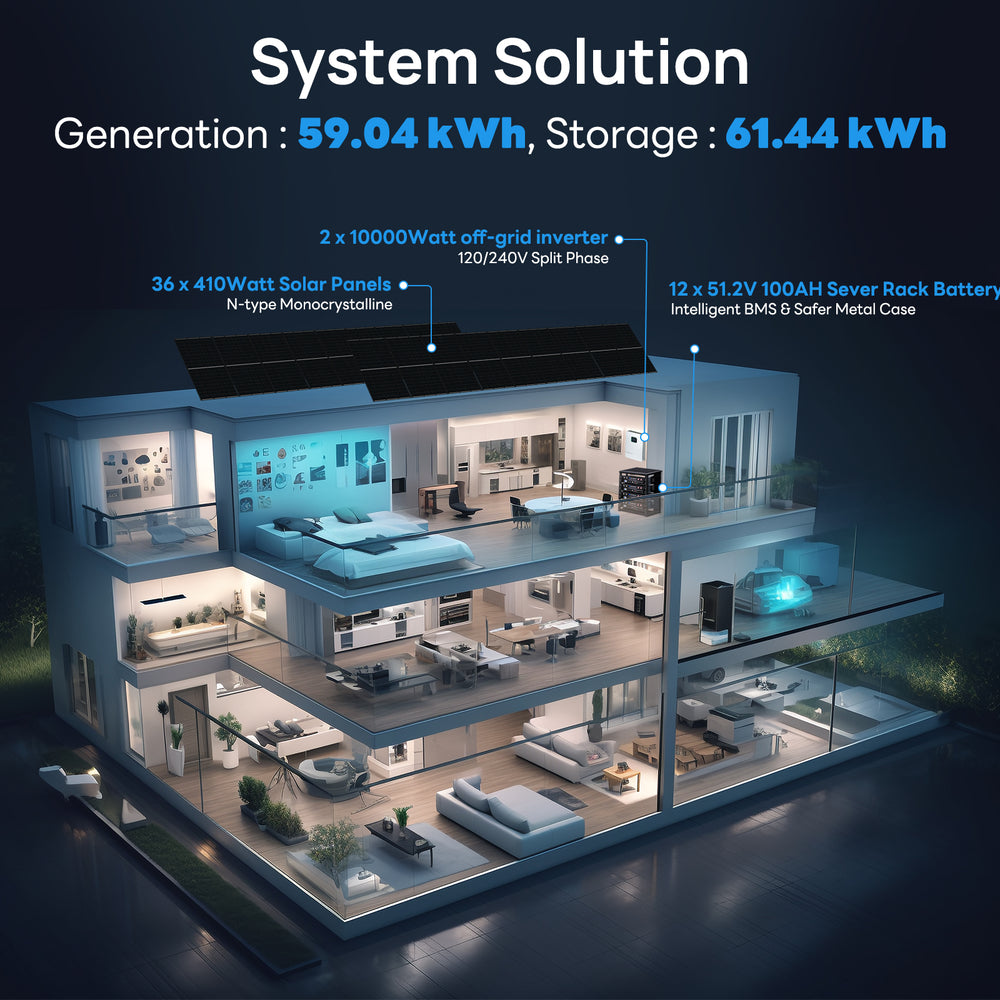

14760W PV&61.44kWh Battery
36xECO-WORTHY & 410W SOLAR PANEL-BLACK
2xECO-WORTHY 10000W ALL-IN-ONE OFF-GRID INVERTER
4xPV-INVERTER CABLE
8xPV EXTENSION CABLE
12xECO-WORTHY 51.2V 100AH LiFePO4 BATTERY
2x ECO-WORTHY RACK6 V2 I 6-Layer Rack With 600A Busbar

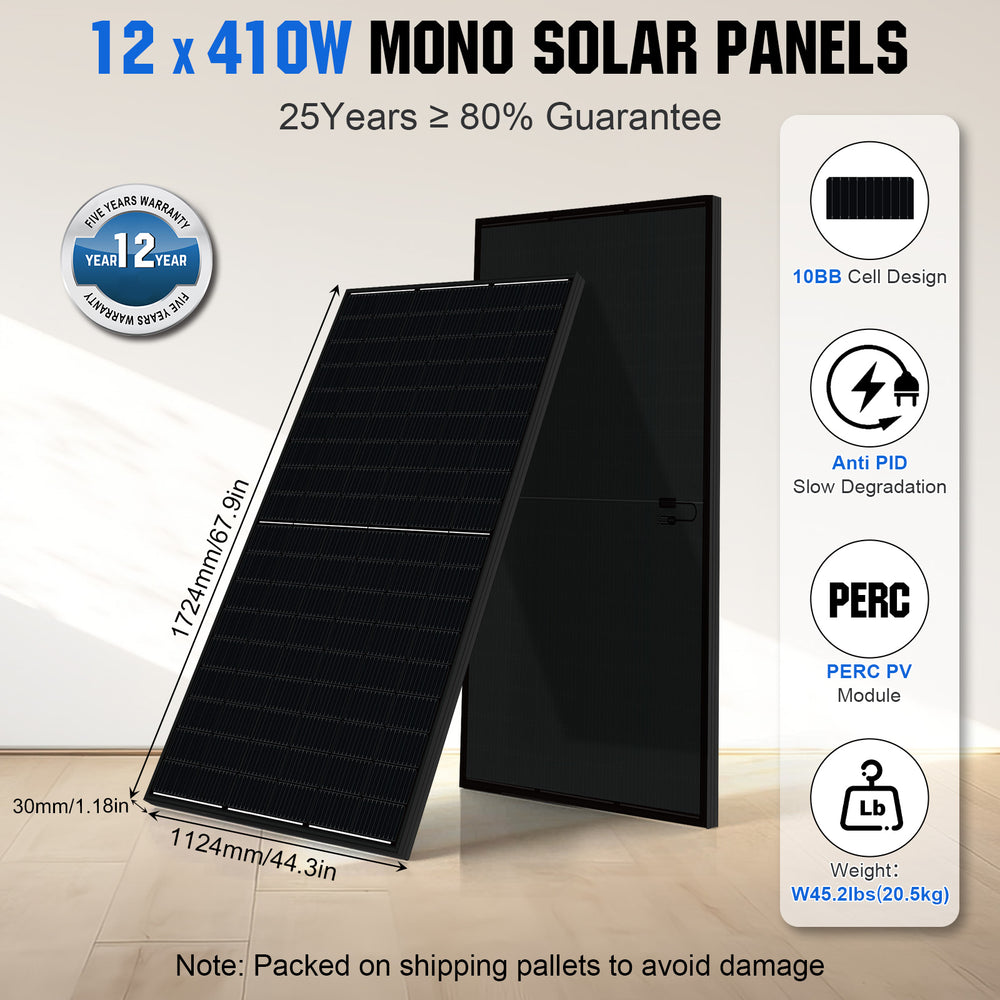

410W Monocrystalline Solar Panel
| Rated Power: 410W | Solar Cell: Mono PERC |
| Maximum/Peak Voltage(Vmp): 31.30V | Open Circuit Voltage(Voc): 37.50V |
| Short circuit current: 13.84A | Maximum current: 13.10A |
| Output Tolerance: ±3% | Temperate coefficient of Isc: 0.05%/℃ |
| Temperate coefficient of Voc: -0.29%/℃ | Temperature range: -40℃~ +85℃ |
| Frame: Aluminum alloy frame | Weight: 20.5 kg |
| Size: 1724x1134x30 mm(With Frame) |

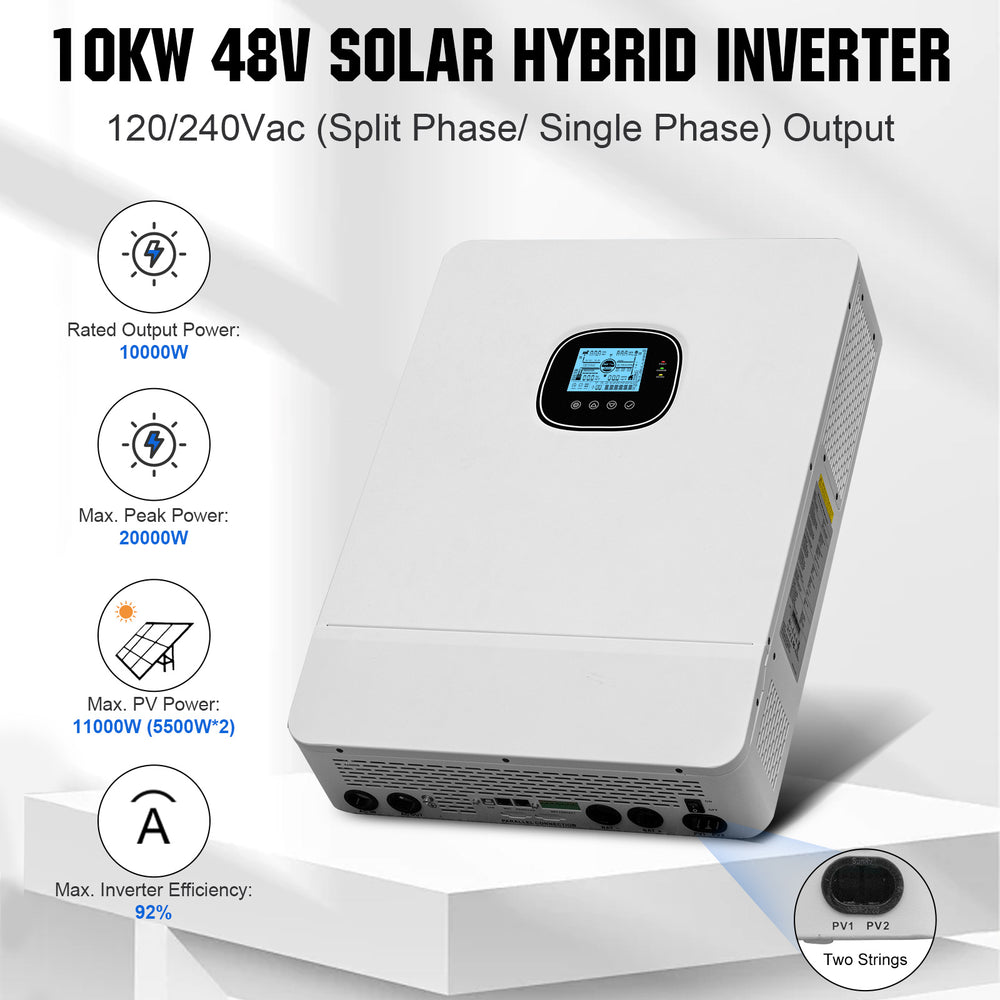

10kW 48V All-in-one Inverter with 200A MPPT
| Solar Charging Mode | |
| PV Charging Current Range: 0-200A | MPPT Voltage Range: 125-425VDC |
| Max Input Power: 11000W | Battery Voltage Range: 40-60VDC |
| Invert Mode | |
| Output Waveform: Pure Sine Wave | Rated Output Power: 10000W |
| Rated Output: 120VAC/240VAC 50Hz/60Hz | Rated Battery Input Voltage: 48V |
| Peak Power: 20000W | |
| AC/Grid Charging Mode | |
| Rated Input: 90VAC-140VAC 50Hz/60Hz(auto detect) |

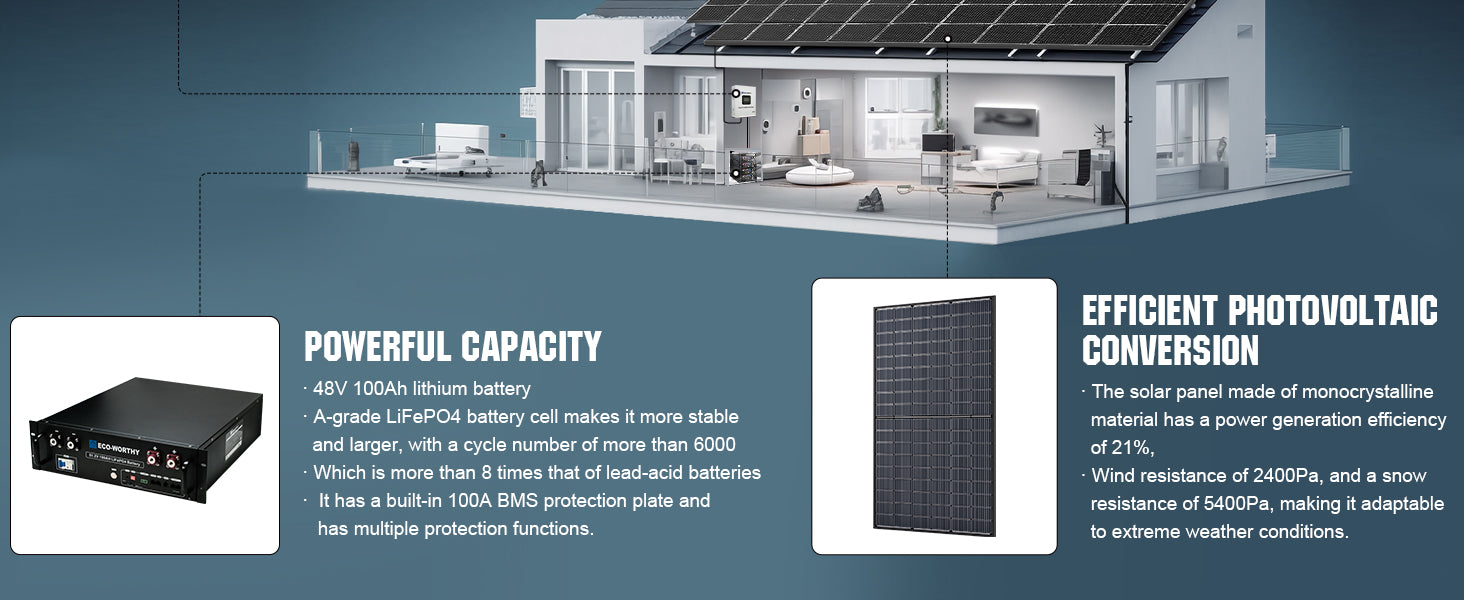

48V 100Ah LiFePO4 Lithium Battery
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Battery Voltage: 51.2V | Maximum Charging Current: 100A |
| Maximum Discharging Current: 100A | Max Charge Voltage: 58.4V |
| Discharge Cut-Off Voltage: 10V | Operating Temperature: -4°F to 140°F |
| Cycle Life: ≥4000 at 50% DoD (depth of discharge) | Size: 22.55*17.13*5.63inch |
| Weight: 95 lbs |
