1. Commercial-Grade Power Output & Scalability
Rated for 6,000W continuous output, expandable up to 36kW through parallel connection of up to 6 units. Designed to meet the growing energy demands of businesses, from mid-sized installations to full-scale commercial power systems.

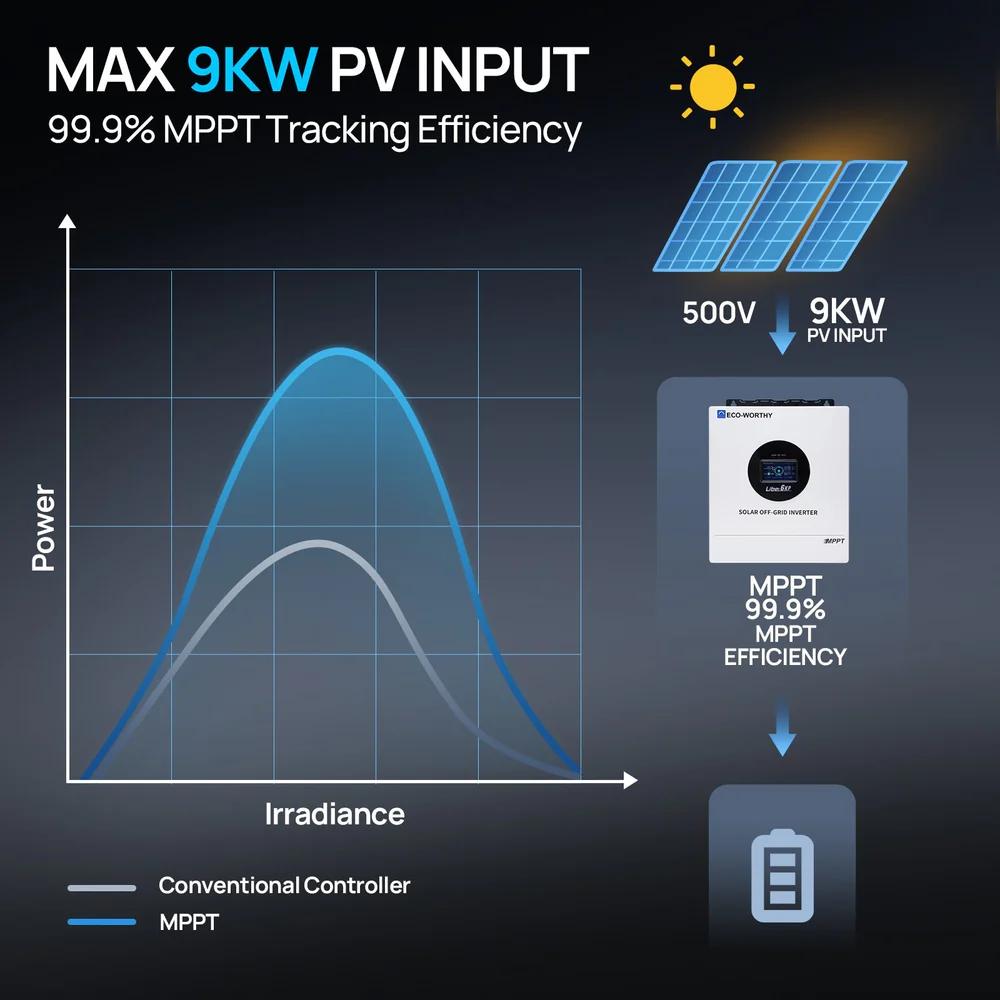

2. High-Efficiency Solar Management
Features a 9,000W solar input capacity, with an MPPT voltage range of 125–500VDC and a maximum charge current of 120A. Optimizes solar harvesting and system ROI by supporting diverse PV array configurations.

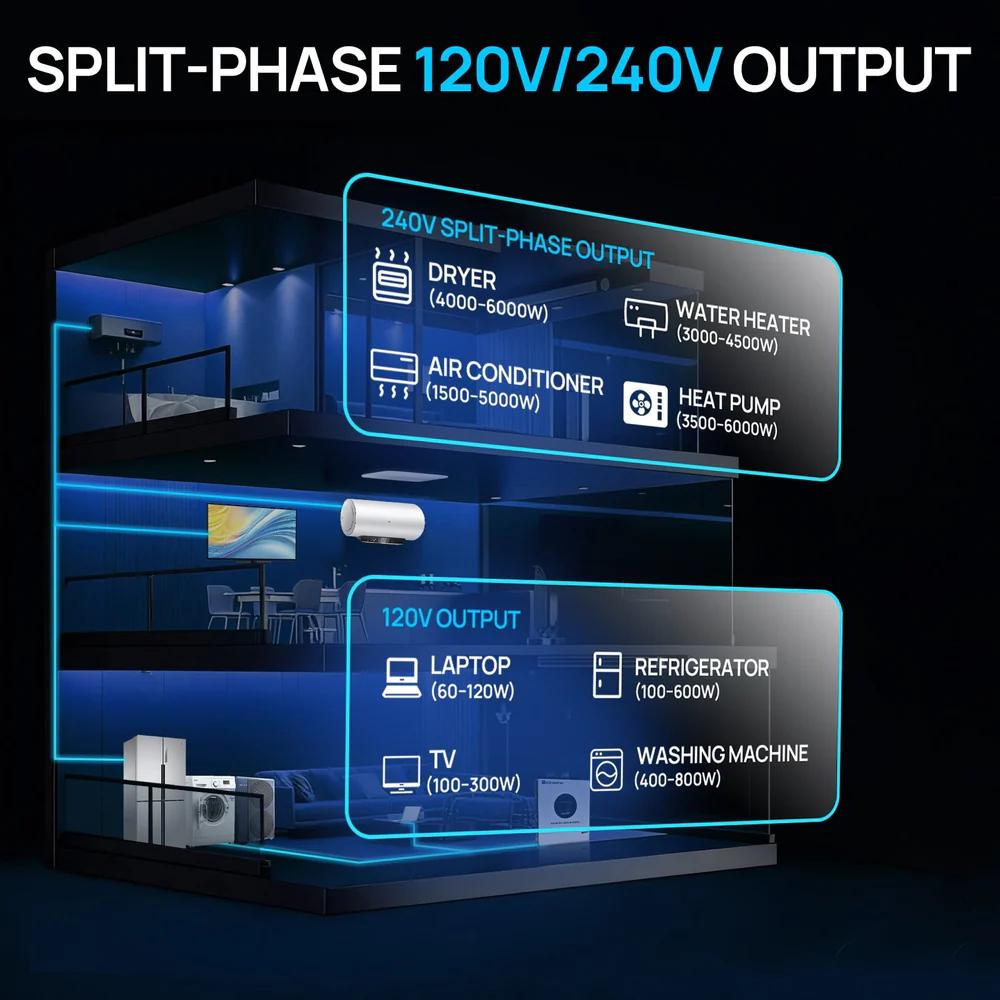

3. Professional Split-Phase Power Output
Delivers independent dual 120V circuits for standard 120V/240V split-phase AC output. Ensures seamless compatibility with both single-phase and split-phase equipment in commercial environments, enabling easy integration into existing electrical infrastructure.
4. Intelligent Battery Communication
Supports closed-loop communication for real-time, two-way exchange of critical battery data (SOC, voltage, current, temperature). Compatible with batteries using the PylonTech protocol (such as Eco-Worthy) for precise management, extended battery life, and enhanced system reliability.
5. All-in-One Integrated Design

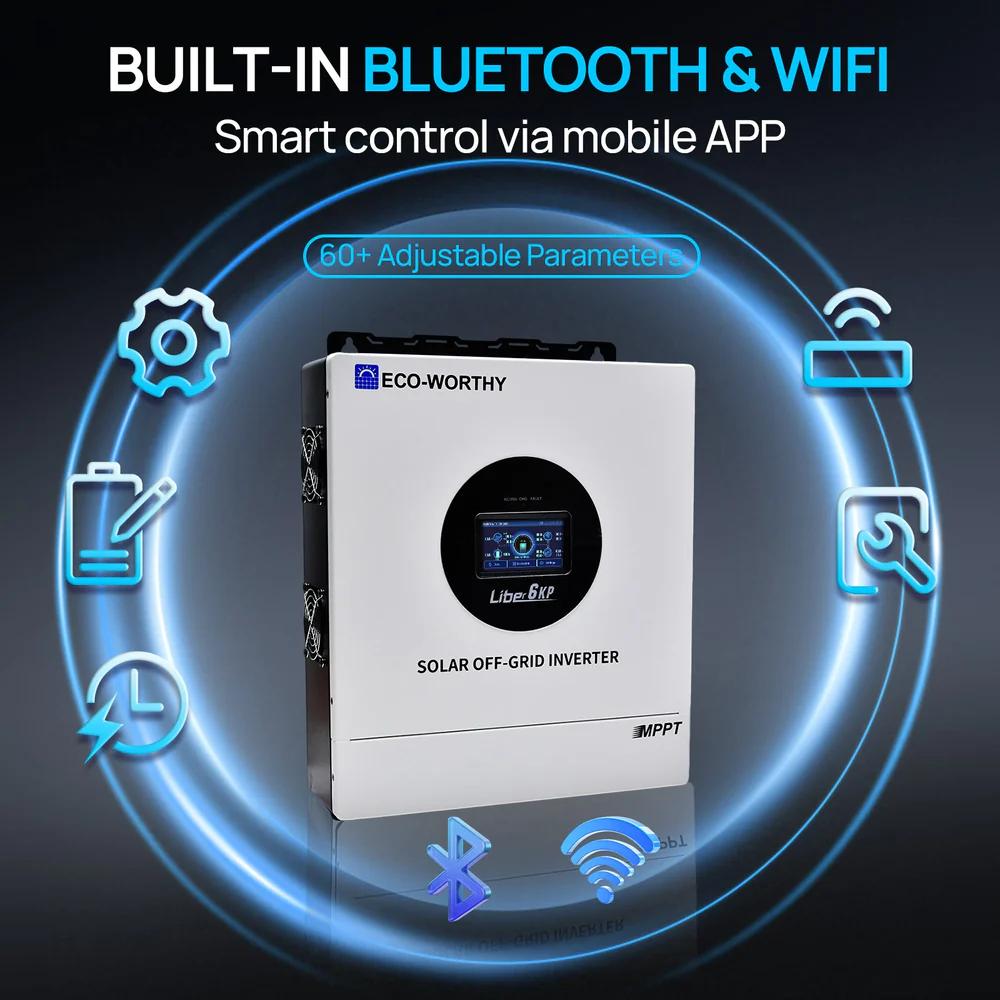

Combines an inverter, AC charger, MPPT solar controller, and Wi-Fi/Bluetooth monitoring module in a single unit. Simplifies system design, installation, and maintenance while reducing total deployment costs, with smart connectivity enabling remote monitoring and management.

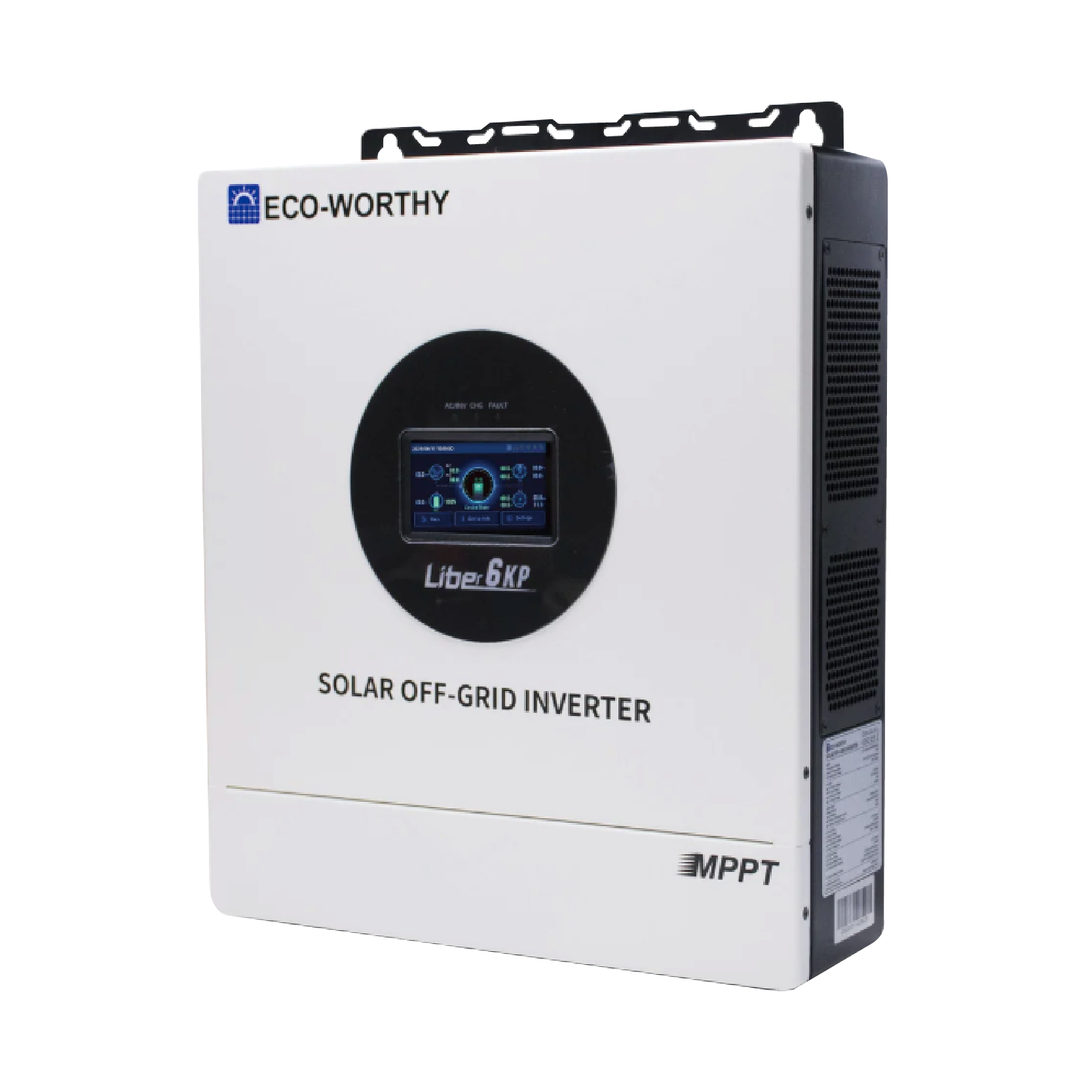

6Kw Solar Off Grid Split Phase Aio Inverter 48Vdc To 120Vac240Vac 9Kw At 500V Pv Input Charge Inverter Eco Worthy
| Model | 6000W 48V to 110V Split Phase |
| Output Waveform | pure sine wave |
| Solar Input Voltage Range (Vdc) | 125~425 |
| Maximum PV Array Wattage (W) | 9000 |
| Maximum Solar Charge Currant(A) | 120 |
| Maximum Hybrid Charge Currant(A) | 120 |
| AC Input Voltage Range (Vac) | 90~140 |
| Battery Charge Type | MPPT |
| AC Output Voltage (Vac) | 120/240V（Single-phase/Split-phase） |
| AC Output Frequency (Hz) | 50/60 |

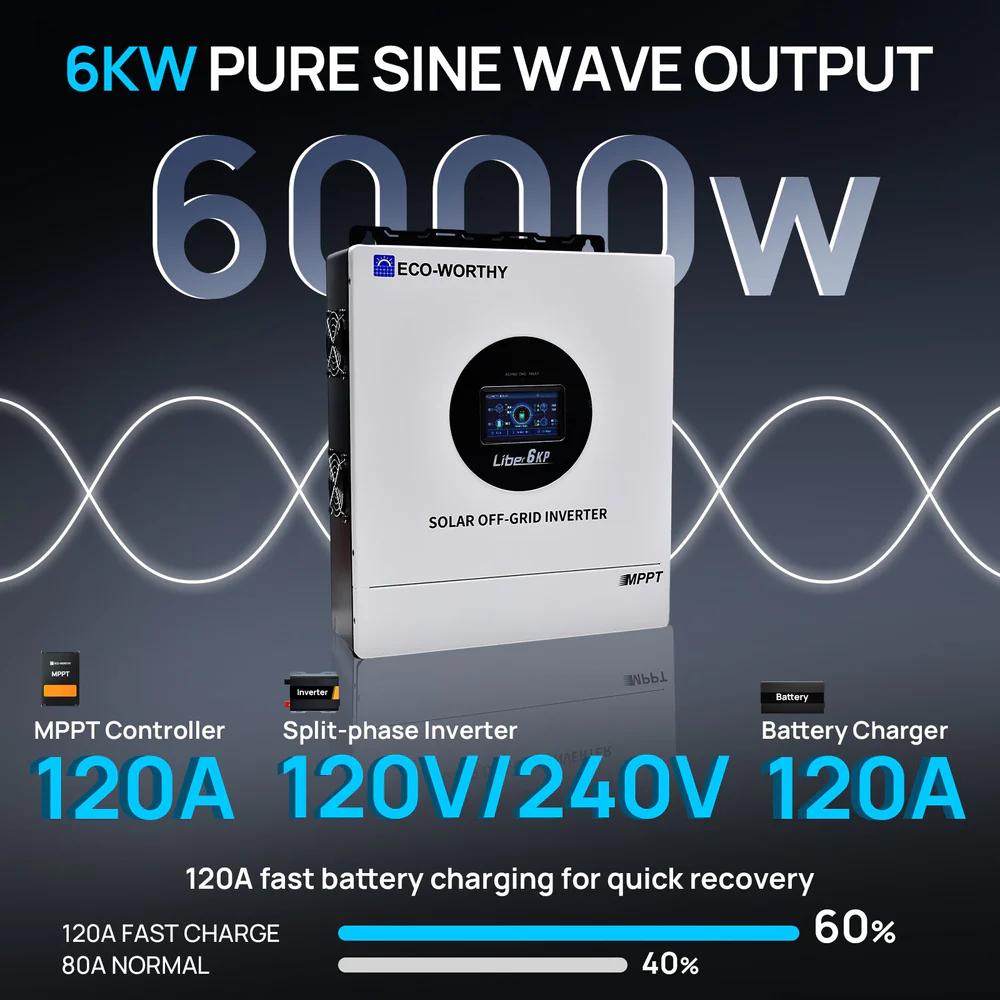

| AC Rated Output Power | 6000W |
| Max connected in parallel (unit) | 6 |
| Size (inch/mm) | 18.58*16.22*5.12 472*412*130 |
| Weight (lbs/kg) | 35.27/16 |
