· Flexible Parallel Expansion

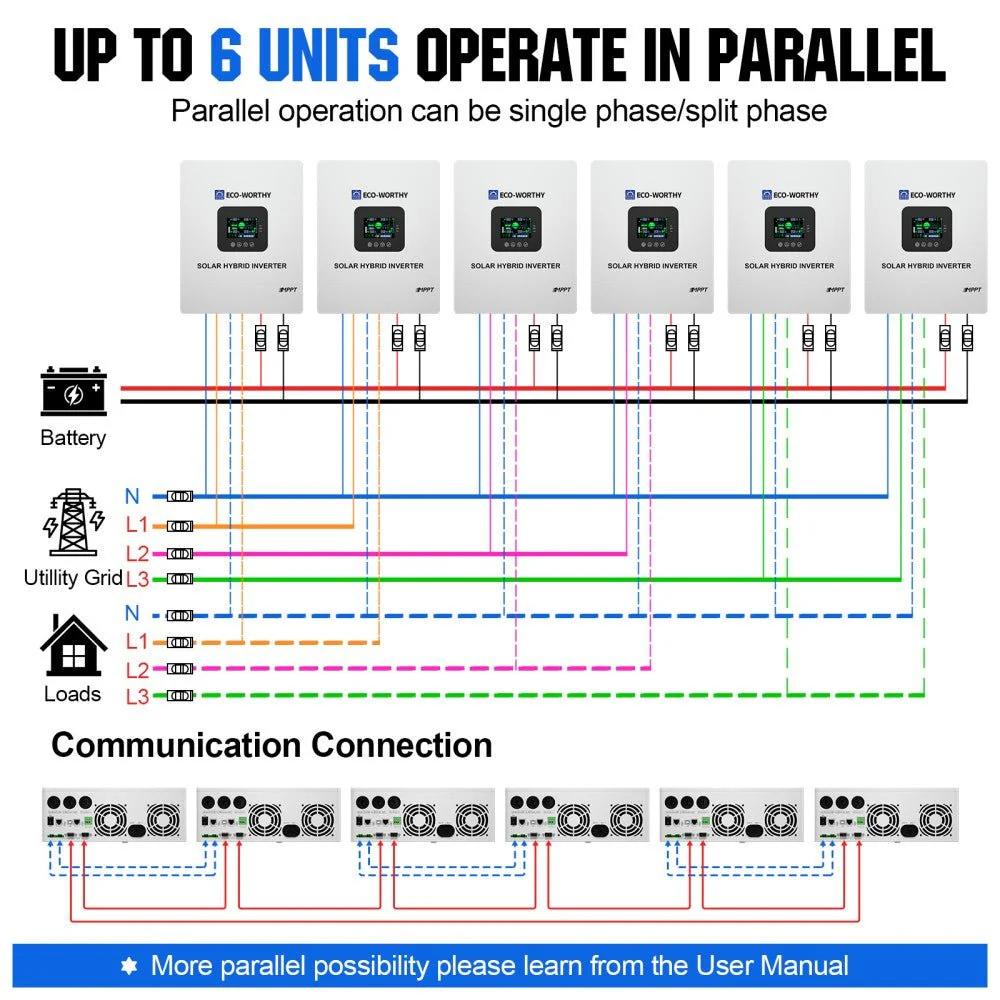

Supports parallel connection of up to 6 units, with total capacity up to 30kW. Configurable in single-phase or split-phase systems. Single inverter outputs 120V, while two or more units in parallel deliver 120V/208V/240V output, meeting diverse commercial power requirements.

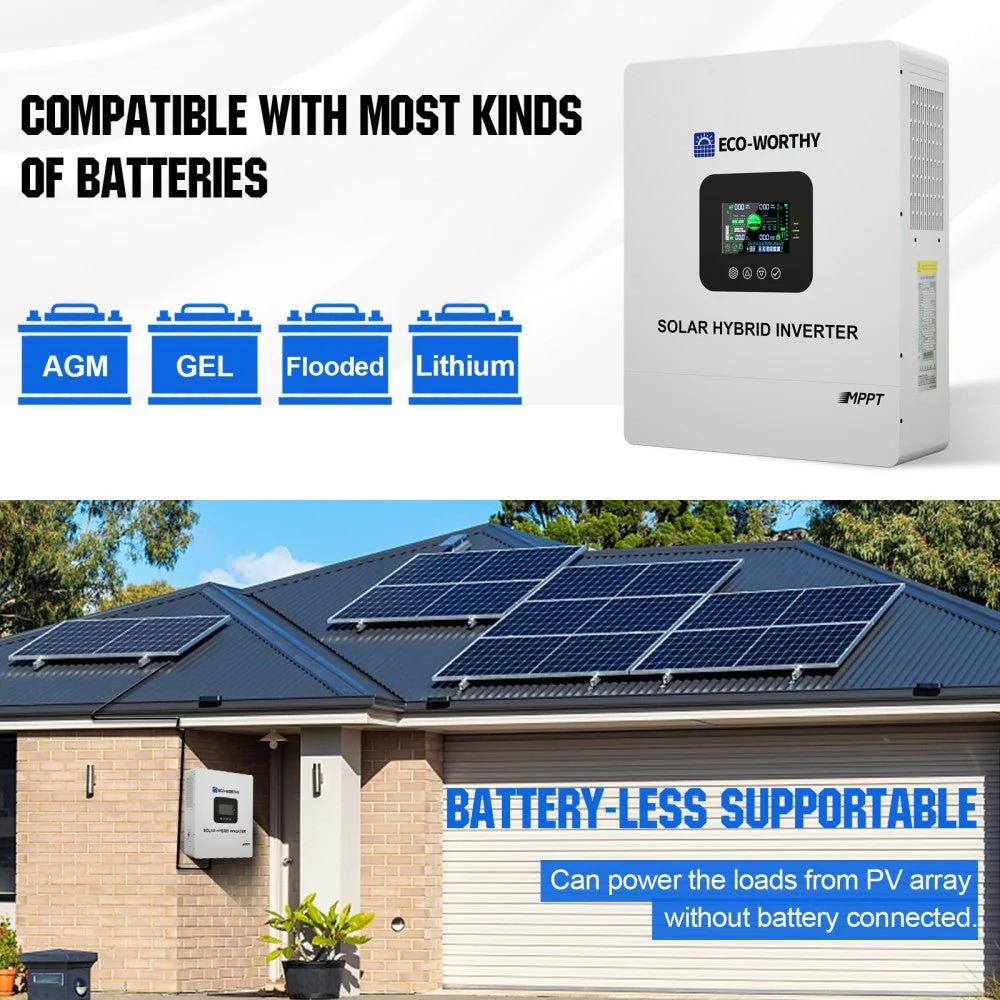

· Battery-Free Continuous Operation
Capable of powering loads directly without battery input, utilizing PV DC current for uninterrupted operation. Reduces initial investment and maintenance costs while ensuring continuous power supply.
· Intelligent Energy Management

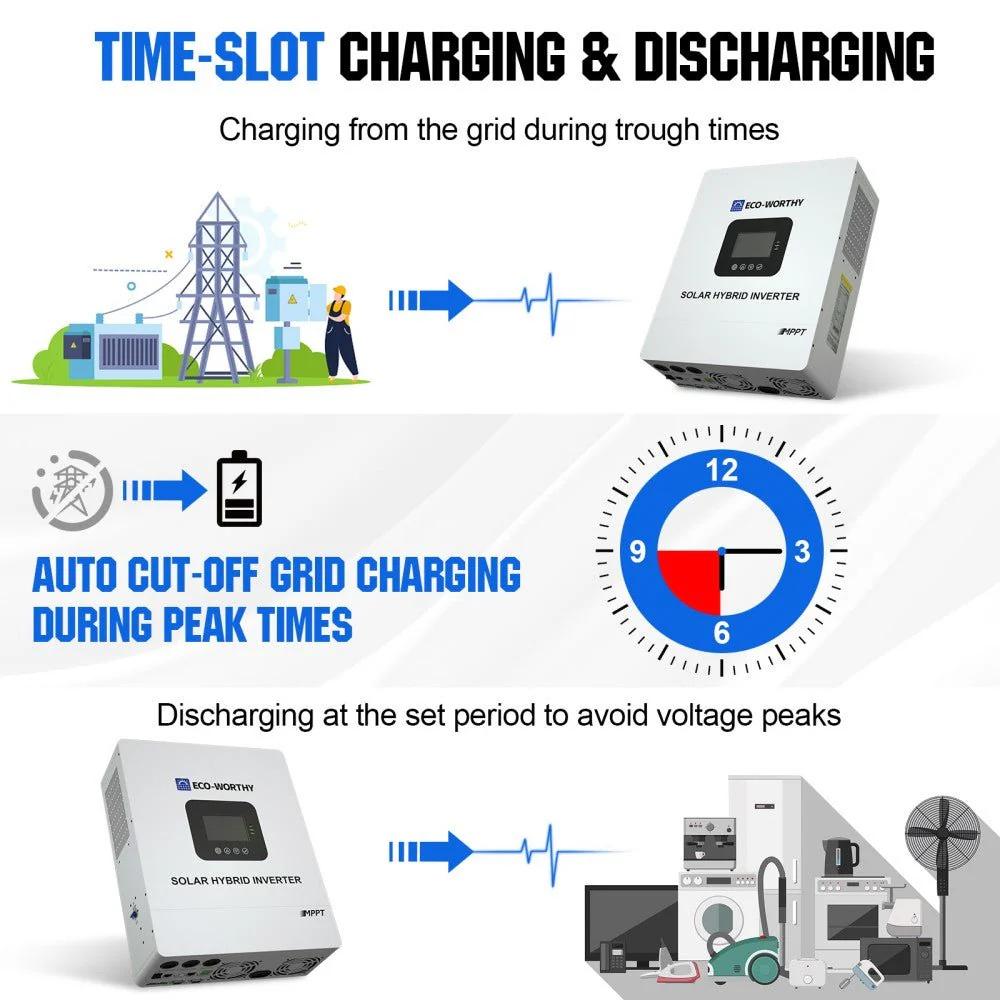

Features three output priority modes (Grid/Battery/PV) and four charging strategies (Solar Only/Grid Priority/Solar Priority/Hybrid). Allows flexible time-based charging/discharging settings according to electricity tariffs, significantly lowering operational costs.
· High-Performance & Reliable Specifications

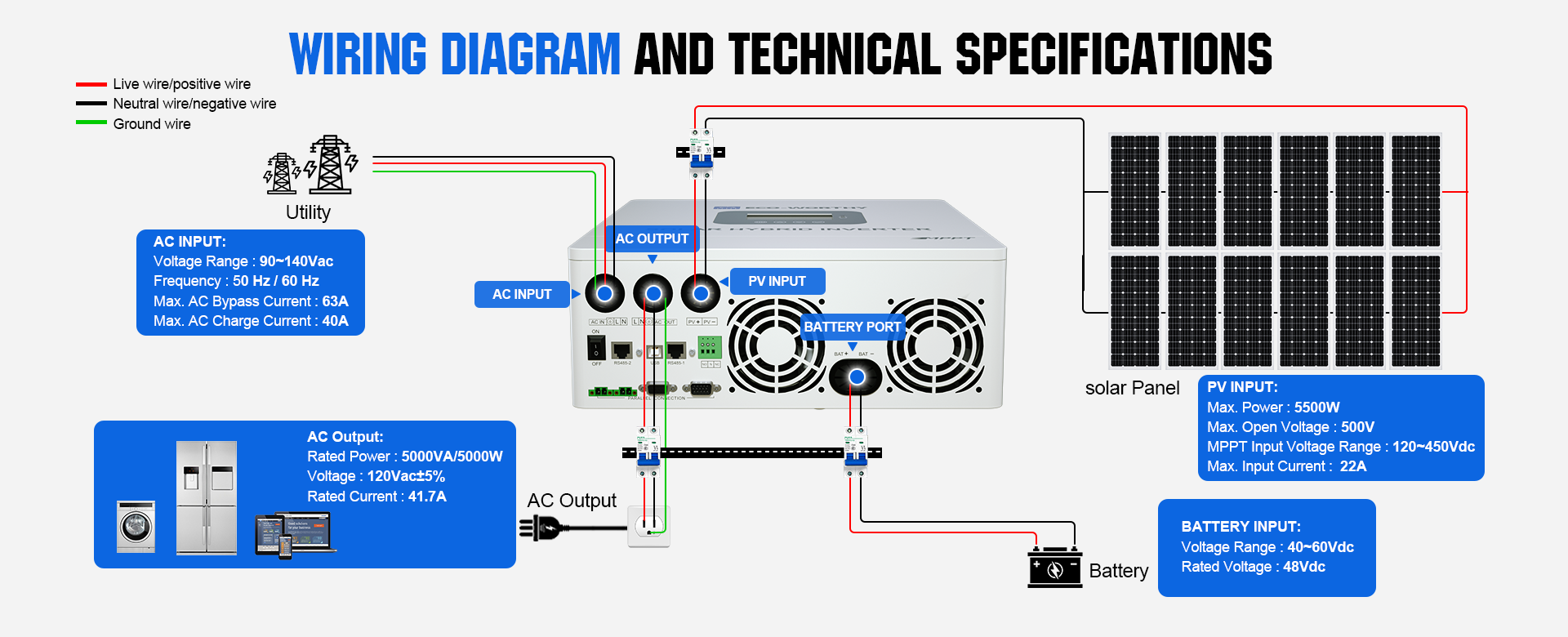

Max. PV input 5500W, MPPT voltage range 120–500V DC, charging current up to 80A. Rated output power 5000W, peak power 10000W. Supports 120/240Vac split-phase and single-phase output for broad application scenarios.
· Real-Time Monitoring & Comprehensive Protection

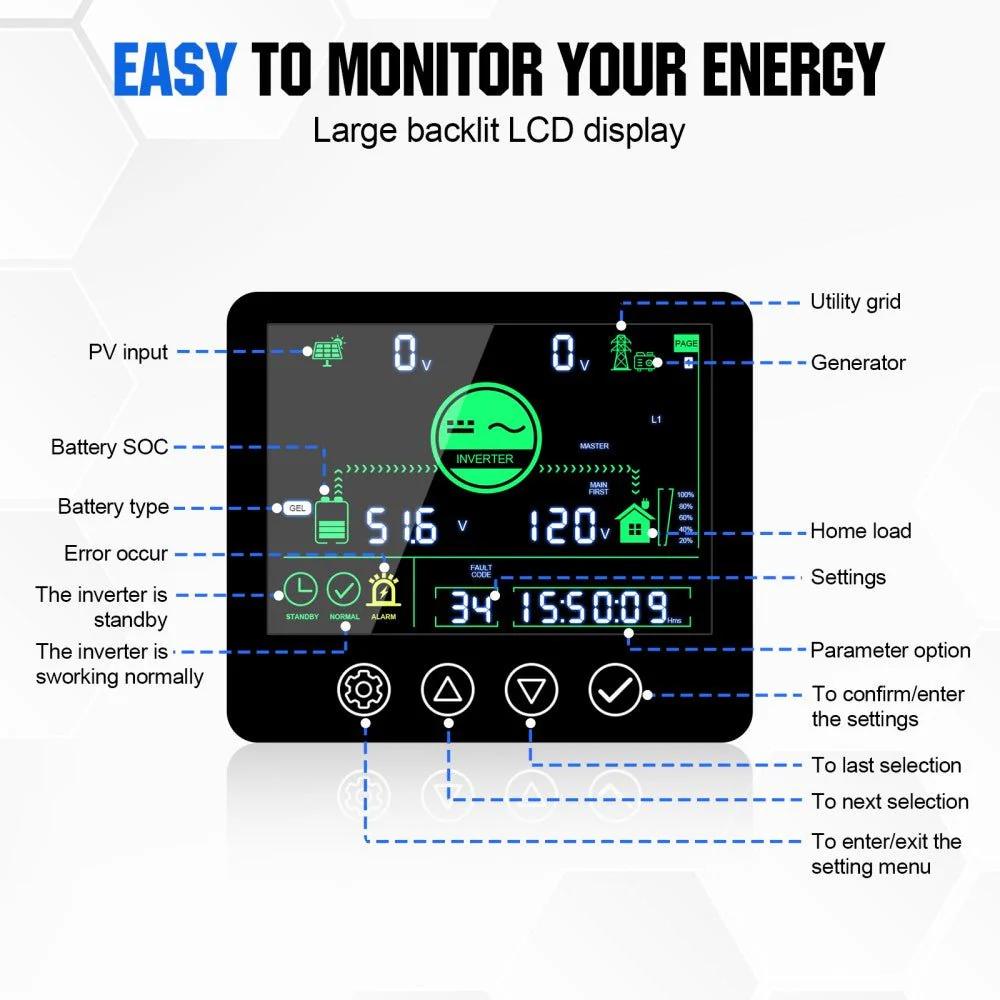

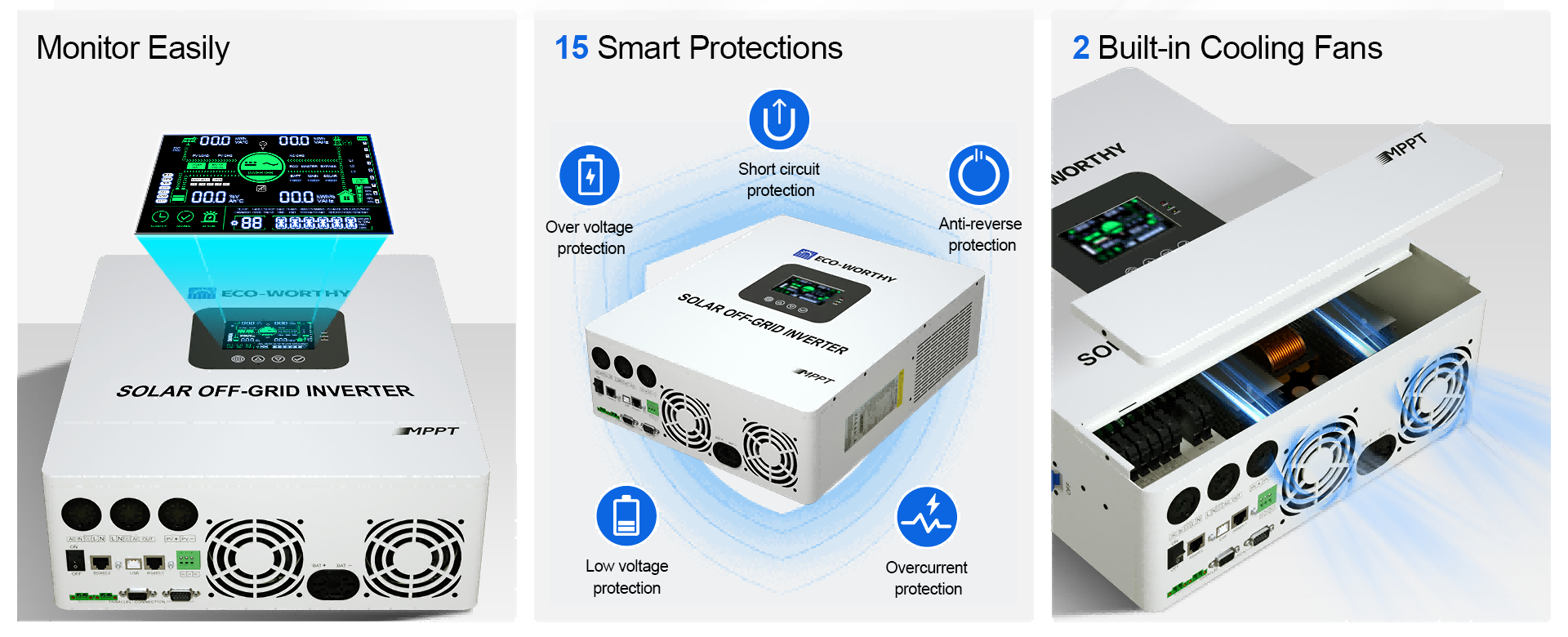

Equipped with an LCD for real-time data monitoring. Integrated protections include PV current/power limiting, over-voltage, night reverse current prevention, and multi-fan cooling. Ensures system stability and facilitates remote maintenance and preventive management.

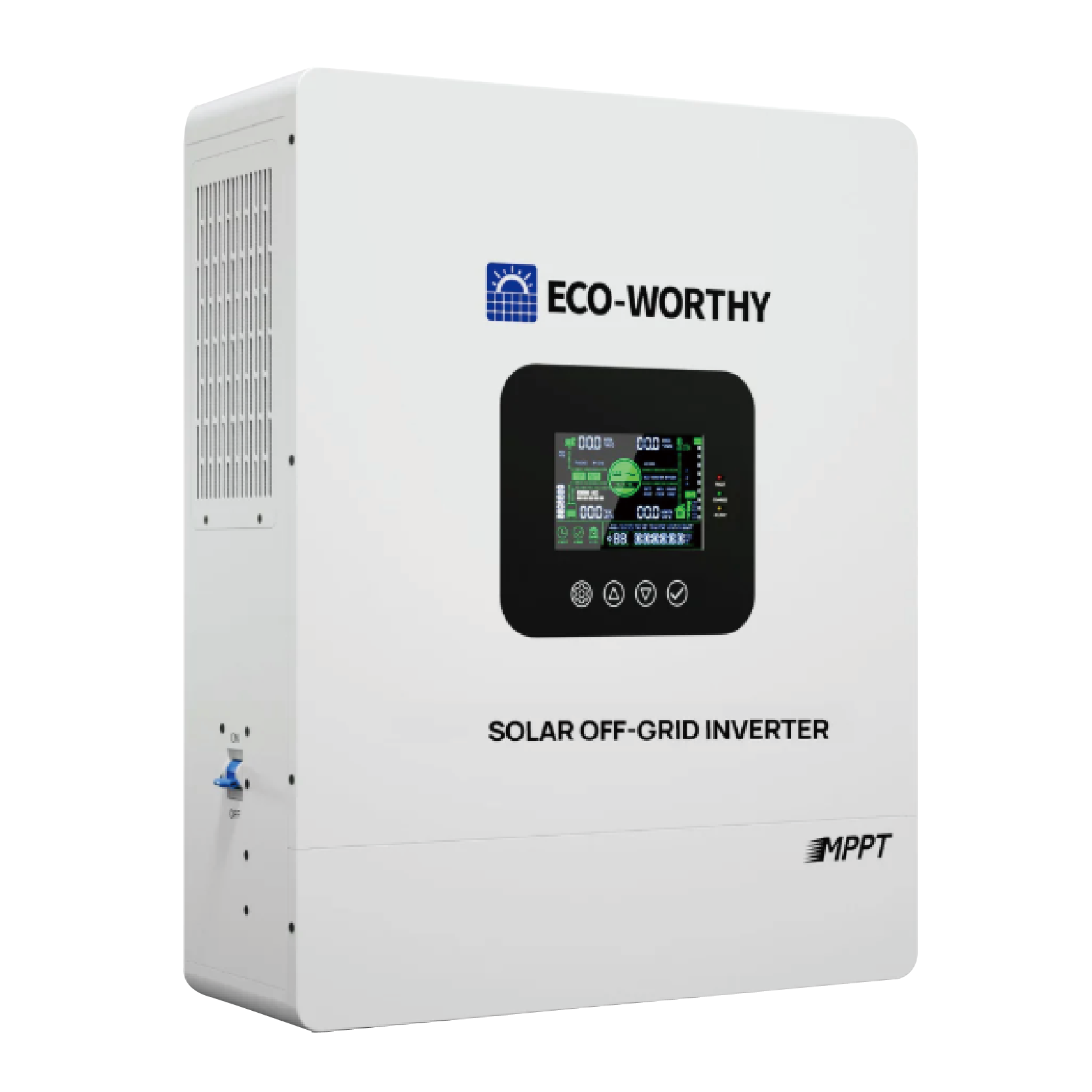

5000w Solar Off Grid Inverter Charger 48v Dc To 120v Ac Split Phase Power Inverter
| Model | 5000W 48V to 110V Split Phase |
| Output Waveform | pure sine wave |
| Solar Input Voltage Range (Vdc) | 120~500 |
| Maximum PV Array Wattage (W) | 5000 |
| Maximum Solar Charge Currant(A) | 80 |
| Maximum Hybrid Charge Currant(A) | 100 |
| AC Input Voltage Range (Vac) | 90~140 |
| Battery Charge Type | MPPT |
| AC Output Voltage (Vac) | 120 |
| AC Output Frequency (Hz) | 50/60 |
| AC Rated Output Power | 5000 |
| Max connected in parallel (unit) | 6 |

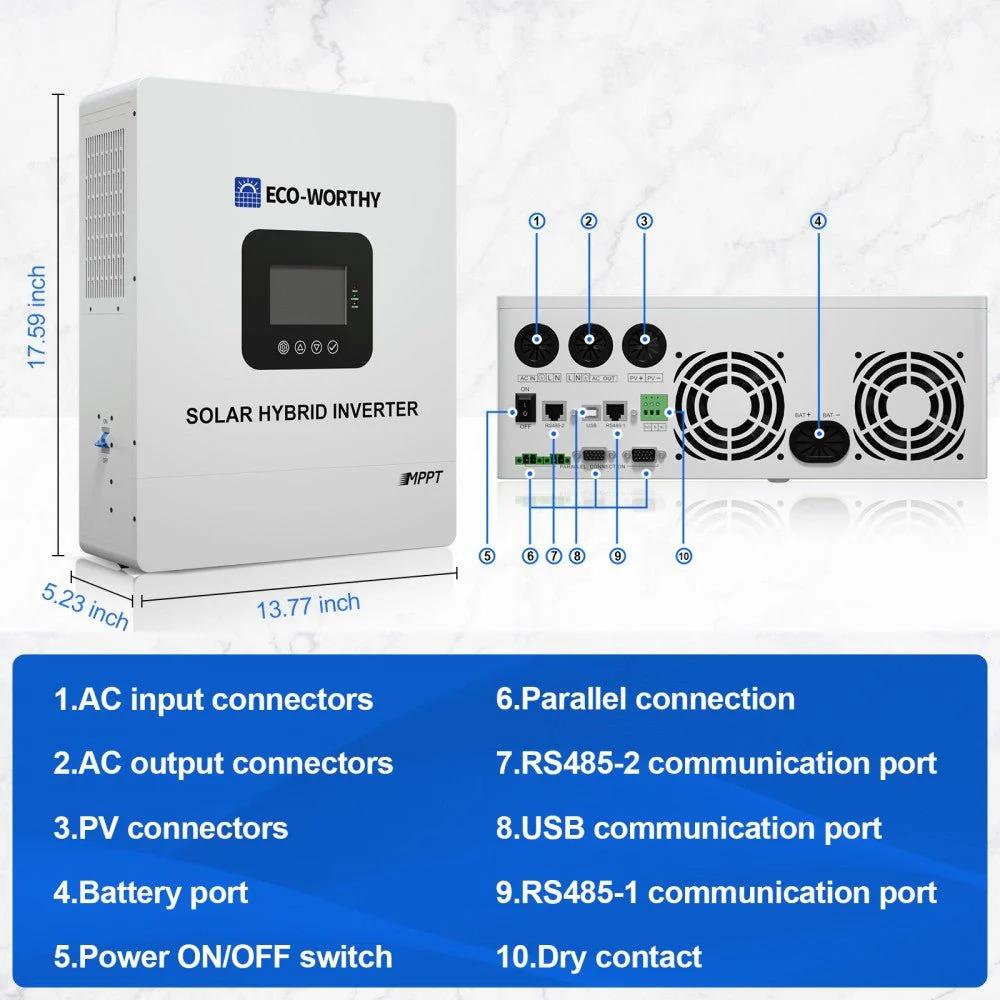

| Size (inch/mm) | 17.60*13.78*5.24 / 447*350*133 |
| Weight (lbs/kg) | 30.86 / 14 |
