ECO-WORTHY 5.12kWh LiFePO4 ESS: UL-Certified 48V 100Ah Battery & 3.5kW Hybrid Inverter System
Certified Safety & Global Compliance (UL1973 & UL9540A)
Our 48V 100Ah server rack batteries have cleared rigorous Intertek testing, achieving full North American safety standards. This ensures high-level thermal runaway management and electrical safety, reducing liability and meeting strict project requirements for commercial and residential installations.
Seamless Integration & Protocol Compatibility

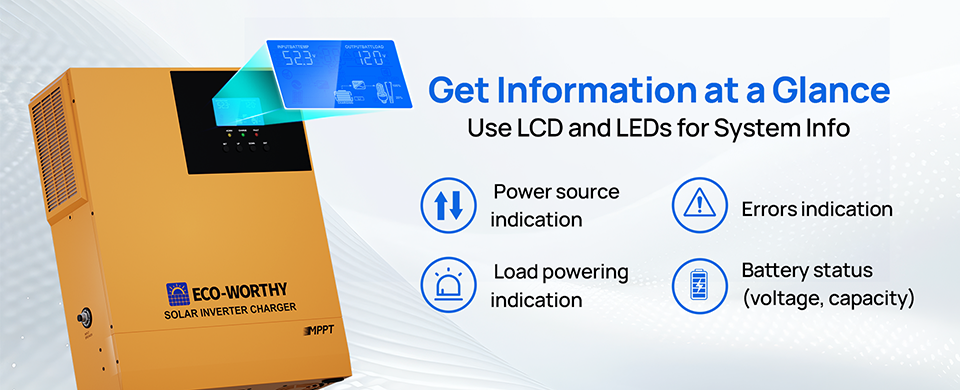

Designed for professional installers, the system supports real-time monitoring via Bluetooth/WiFi App and industrial-grade CAN/RS485 communication. It is engineered for high compatibility with leading inverter brands (such as Victron, Deye, and Growatt), ensuring rapid deployment in diverse energy environments.
Versatile Hybrid Power Management
This system offers 4 intelligent charging modes and 3 output priority modes (Utility/Solar/Battery) to optimize energy ROI. With a <20ms UPS-grade switching time, it provides seamless power transition, making it an ideal solution for critical infrastructure and sensitive electronics.
Scalable Architecture for Growing Demand
Engineered for scalability, the system supports paralleling up to 6 inverter units (21kW total output). This modular design allows distributors to offer flexible configurations, ranging from single-phase 120V to split-phase 120V/240V or 208V systems, catering to various regional grid standards.

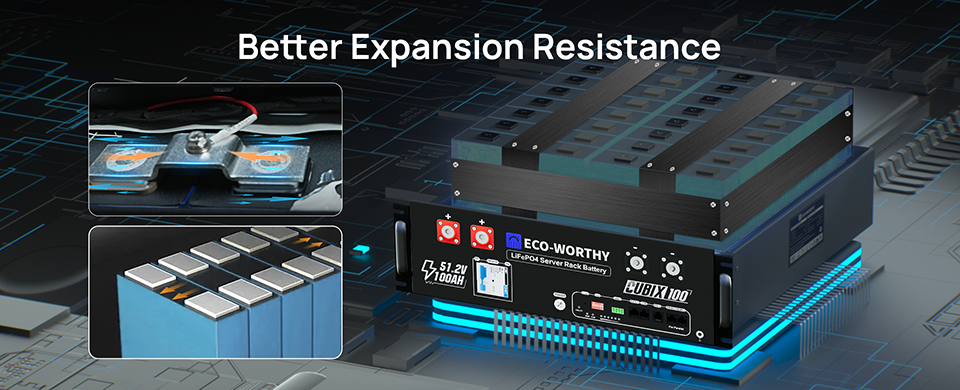

Industrial-Grade LiFePO4 Longevity
Utilizing premium Grade-A Lithium Iron Phosphate cells, our energy storage systems are built for long-cycle life and stability. As a direct BESS manufacturer, Eco-Worthy provides the technical reliability and consistent supply chain support necessary for long-term wholesale partnerships and large-scale solar projects.

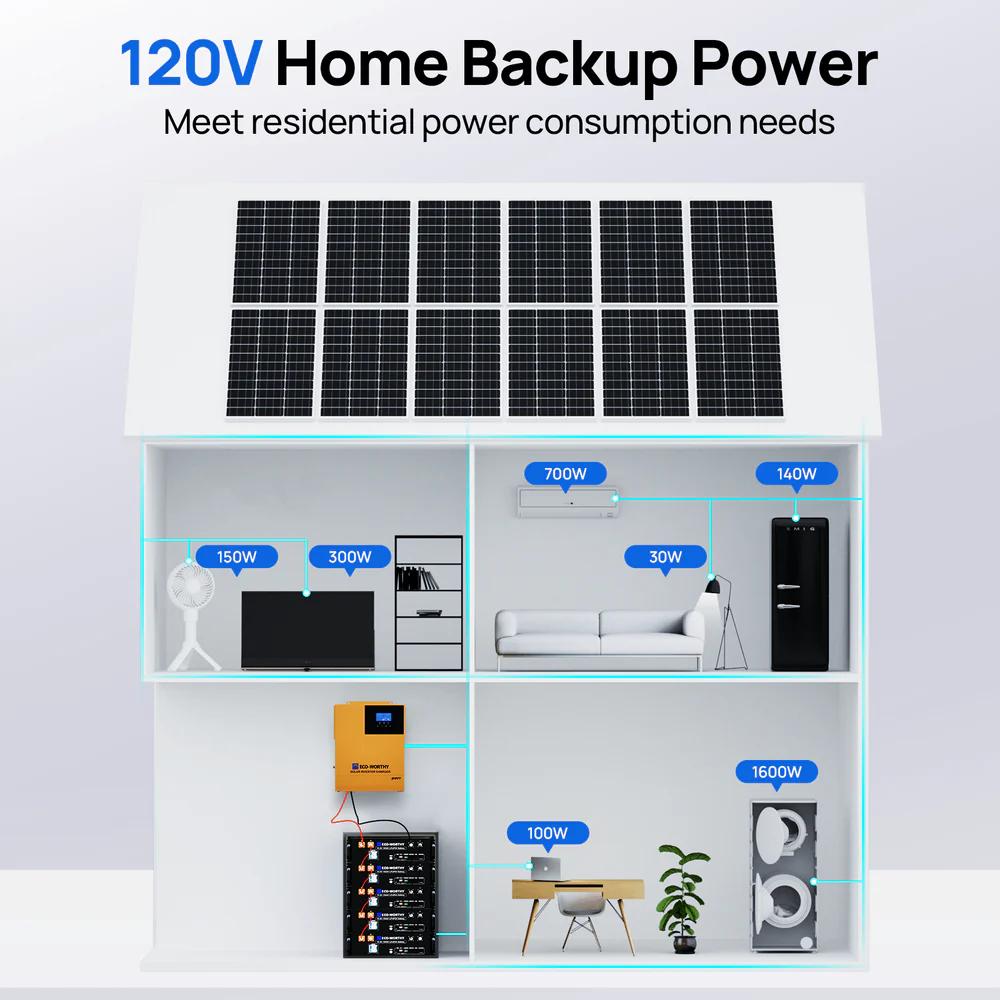

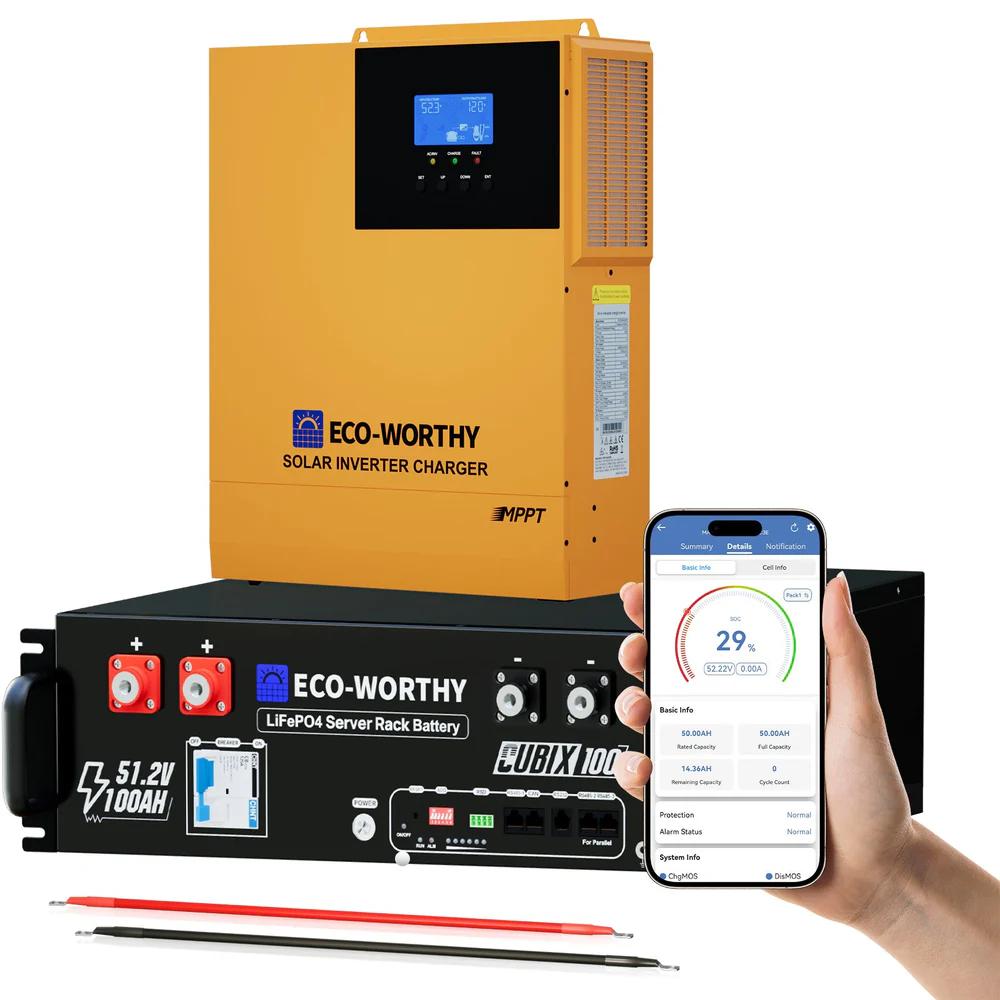

ECO-WORTHY 5.12kWh Home Backup Power System
| 48V 100Ah Server Rack Battery | |
| Battery Capacity: 100Ah | Battery Power: 5120Wh |
| Rated Voltage: 51.2V | Voltage Range: 40~58V |
| Maximum Charge/ Discharge Current: 100A | Charge Temperature Range: 0-55℃ |
| Disharge Temperature Range:﹣20－55℃ | Maximum Charge Voltage: 58.4V |
| Screw size: M8 | Battery Size: 22.55*17.13*5.63inch |
| Battery Weight: 103 lbs | Each battery comes with a pair of battery parallel cables |
| Certification：UL1973 | UL9540A | |

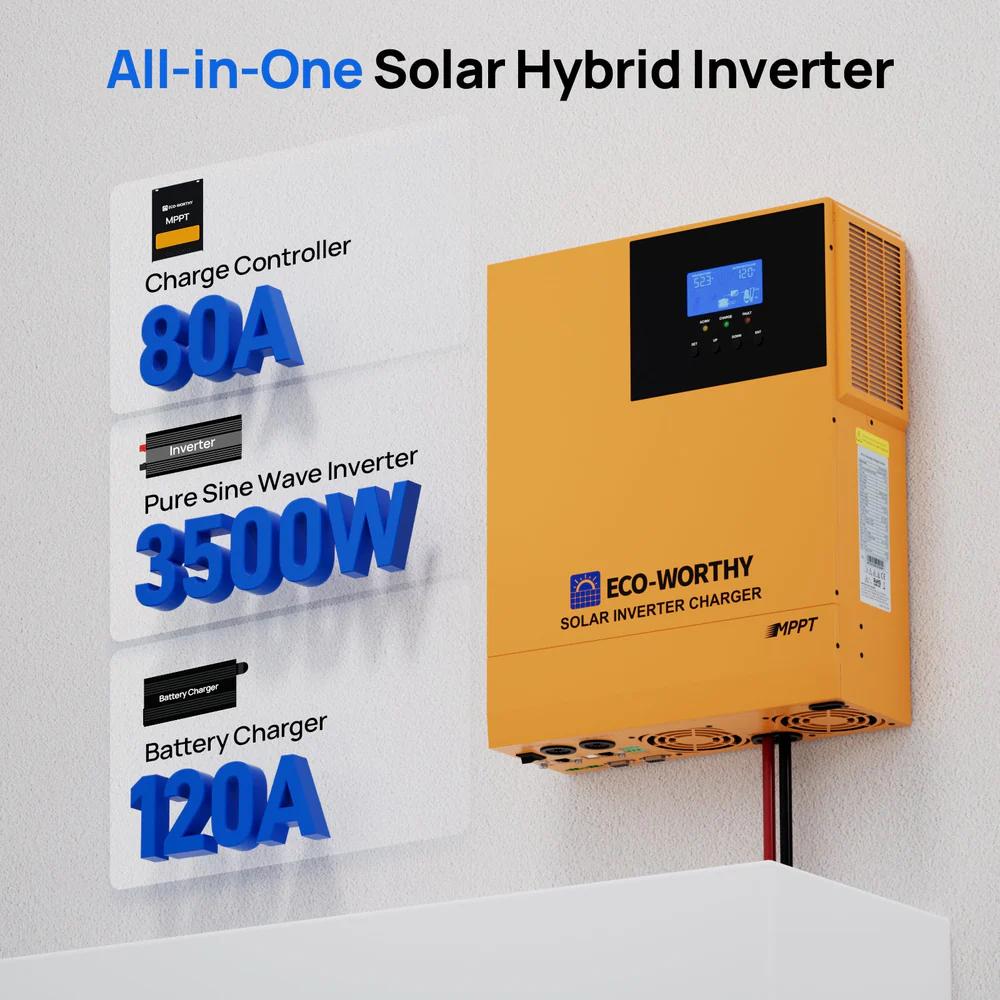

| 3500W 48V Off-Grid Inverter | |
| AC Input Mode | |
| Rated Input Voltage: 110/120VAC | Input Voltage Range: 90V-140VAC |
| Frequency: 50Hz/60Hz(auto detect) | Overload/Short Circuit Protection: Circuit breaker |
| Efficiency: 92% | AC Reverse Protection: Available |
| Max Bypass Overload Current: 40A | |
| Invert Mode | |
| Output Voltage Waveform: Pure Sine Wave | Rated Output Power: 3500W |
| Rated Output Voltage: 120VAC | Peak Power: 6000W |
| Bypass Breaker: 40A | Rated Battery Input Voltage: 48V |
| Min Starting Voltage: 44V | Power Saving Mode: Load ≤50W |
| AC Charging Mode | |
| Battery Type: Lead acid or lithium battery | Max Charge Current: 40A |
| Charge Voltage Range: 40-60VDC | Overcharge Protection: Alarm and turn off charging after 1 minute |
| PV Charging Mode | |
| Max Input Power: 4400W | PV Charging Current Range：0-80A |
| Max PV Open Circuit Voltage: 145VDC | PV Operating Voltage Range: 60-145VDC |
| MPPT Voltage Range: 60-115VDC | Battery Voltage Range: 40-60VDC |
| Max Output Power: 4200W | Charging Short Circuit Protection: Blown fuse |
