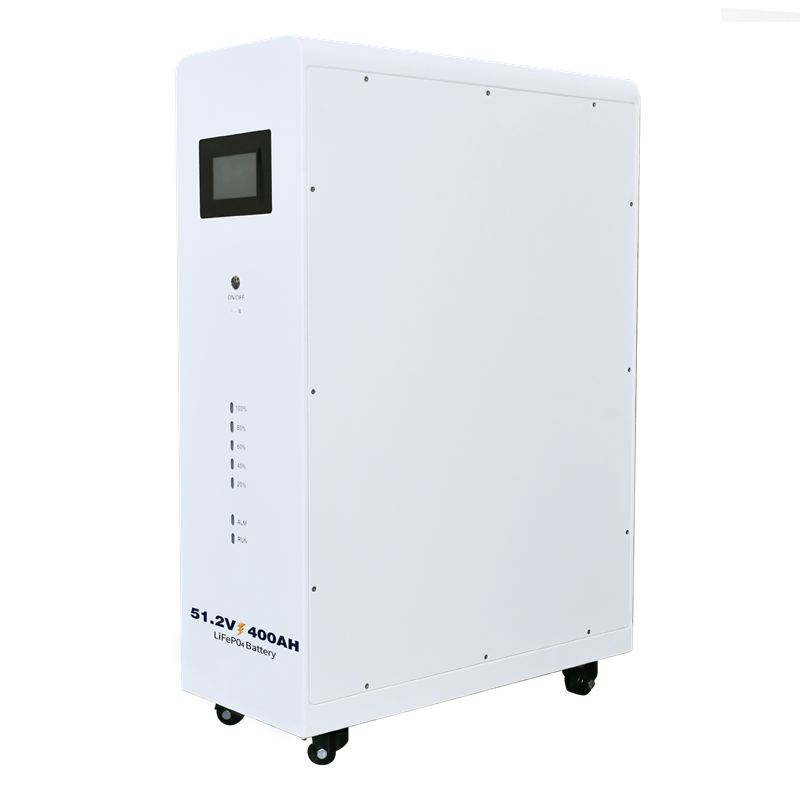

    Eco-worthy 48V (51.2V) 400Ah Movable LFP Battery01.png

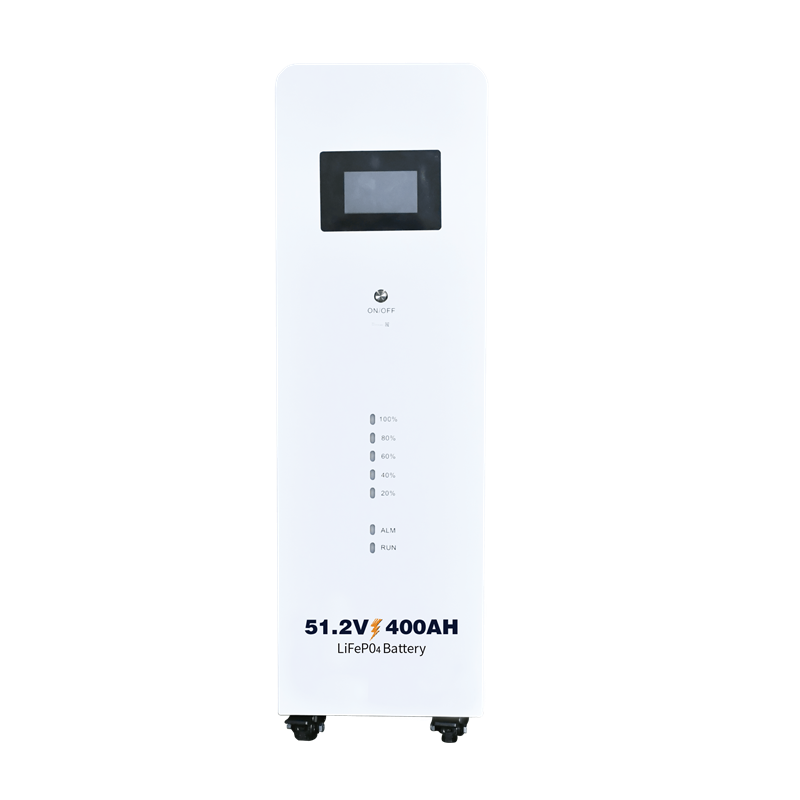

    Eco-worthy 48V (51.2V) 400Ah Movable LFP Battery02.png

    Eco-worthy 48V (51.2V) 400Ah Movable LFP Battery

    Eco-worthy 48V (51.2V) 400Ah Movable LFP Battery is a professional-grade energy storage solution defined by high capacity and exceptional flexibility. Built with the safest LiFePO4 chemistry, this system delivers 20.48 kWh per unit and a 20-year design life (6000+ deep cycles). It features a robust Smart BMS with seven-tier protection and dual power terminals for high efficiency. With universal CAN/RS485 compatibility and easy deployment via heavy-duty wheels, it is scalable up to 307.2 kWh. An ideal choice for reliable, large-scale residential and commercial projects globally.

      • certification (7)
      • certification (3)
      • certification (5)
      • certification (4)
      • certification (1)
      • certification (6)
      Contact us
      product details
      Specification
      download

      Features

      Powerful Single Unit

      51.2V $\times$ 400Ah delivers 20.48 kWh capacity.

      Massive Expansion

      Up to 15 units can be connected in parallel, achieving a total capacity of 307.2 kWh for large-scale energy needs.

      Heavy-Duty Casters

      Equipped with four robust Footmaster Nylon Wheels for smooth, quiet, and secure movement across flat surfaces.

      Integrated Lifting Handles

      Features strong top handles supporting rope-lifting for easy transportation and precise positioning on-site or in the warehouse.

      Real-Time Data

      Allows for remote monitoring of State of Health (SOH), charge/discharge status, and performance, ensuring proactive system management.

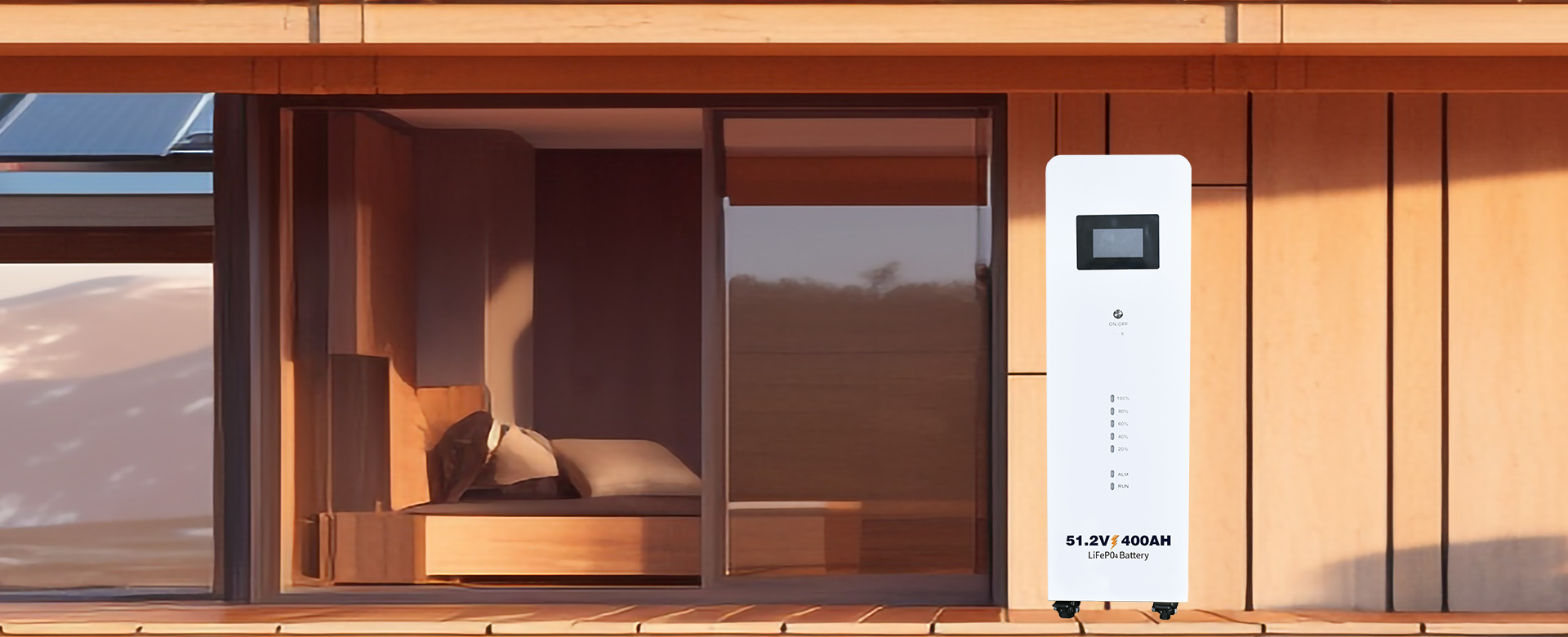

      product description01

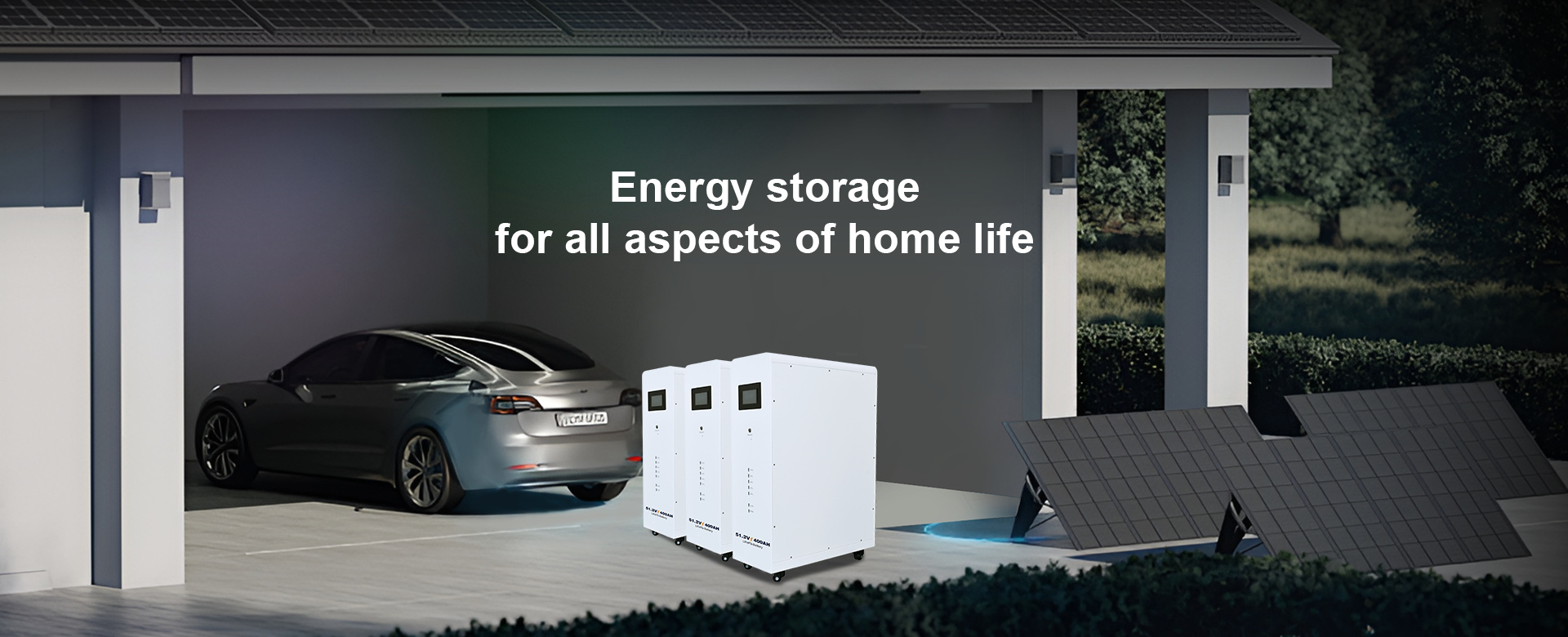

      product description02
      Nominal Voltage 51.2V
      Rated Capacity 400AH
      Charge Method CC/CV
      Charge Voltage 58.4V
      Bulk/Absorption Voltage 58.4V
      BMS Balancing Voltage Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging
      Equalize Voltage Not applicable
      Float Voltage * Not applicable
      Temperature Compensation No/Disable
      Charge Cut-off Voltage 58.4V
      Discharge Cut-off Voltage 40V
      Recommended Charge Current 100A
      Recommended Discharge Current 100A
      Maximum Continuous Charge Current 200A
      Maximum Continuous Discharge Current 200A
      Peak Current 210A/1s
      WiFi Yes
      Bluetooth Yes
      Communication CAN/RS485/RS232
      Self Heating No
      Protection Rating IP20
      BMS Protection • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature
      Internal Resistance ≤30mΩ
      BMS Leakage Current ≤10mA
      Charge Temperature Range 32°F (0°C) to 131°F (55°C)
      Discharge Temperature Range -4°F (-20°C) to 131°F (55°C)
      Storage Temperature 1 week  -4(-20°C) to 149°F (65°C)
      Storage Temperature 1 month -4°F (-20°C) to 113°F(40°C)
      Storage Temperature 1 year -4°F (-20°C) to 77°F (25°C)
      Humidity Operating: 5% to 90 % RH
      Humidity Storage: 35% to 85% RH
      Certifications: MSDS; UN38.3; CE; PSE
      Cycle Life 6000 cycles
      Max connected in Parallel 15 units Max connected in Series 1 units
