Smart Monitoring

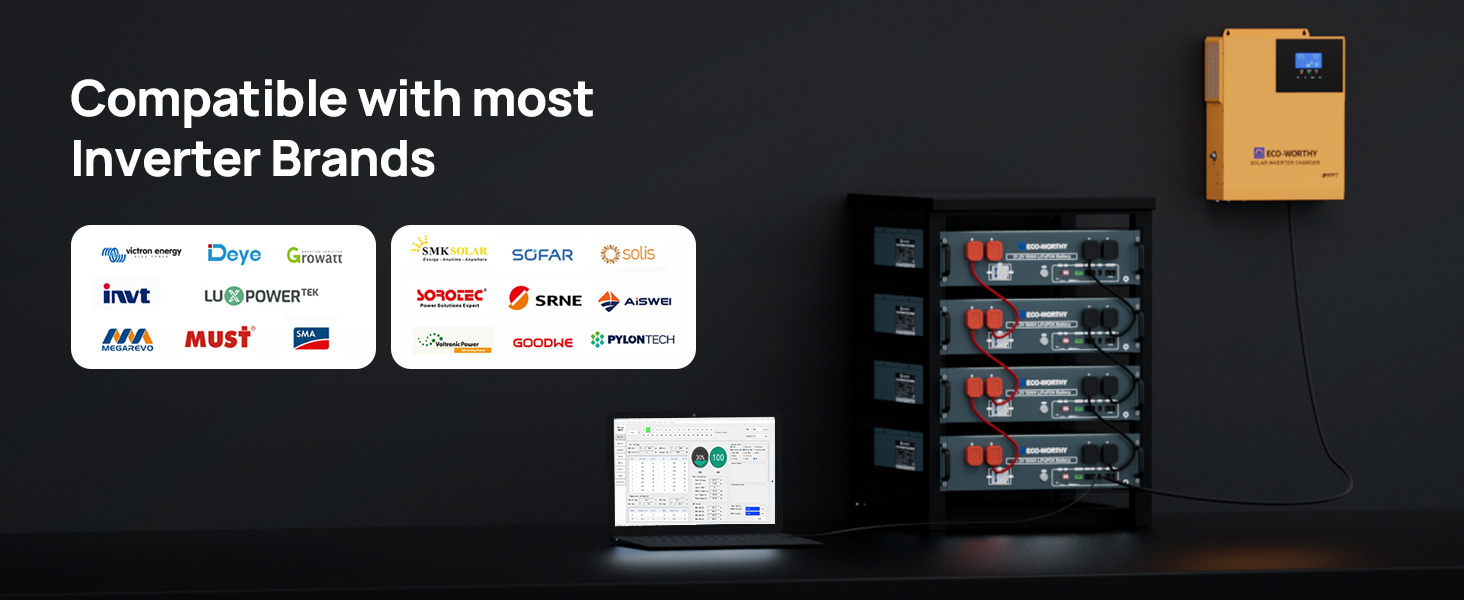

Supports CAN/RS485/RS232 communications. Pre-loaded with multi-brand inverter protocols for grid/backup/off-grid modes. Real-time monitoring via Bluetooth & WiFi connections. Access battery status through mobile apps or PC software.
Versatile & Powerful
Perfect for Home Energy Storage & UPS Backup Power. Includes all necessary cables for plug-and-play setup. Powers your shed, cabin, and enables off-grid living—say goodbye to electricity worries.
Quality Assurance:
Powered by premium A-grade cells with extended lifespan. Enjoy 5-year after-sales support from a top DIY brand.
DIY Customizable Assembly

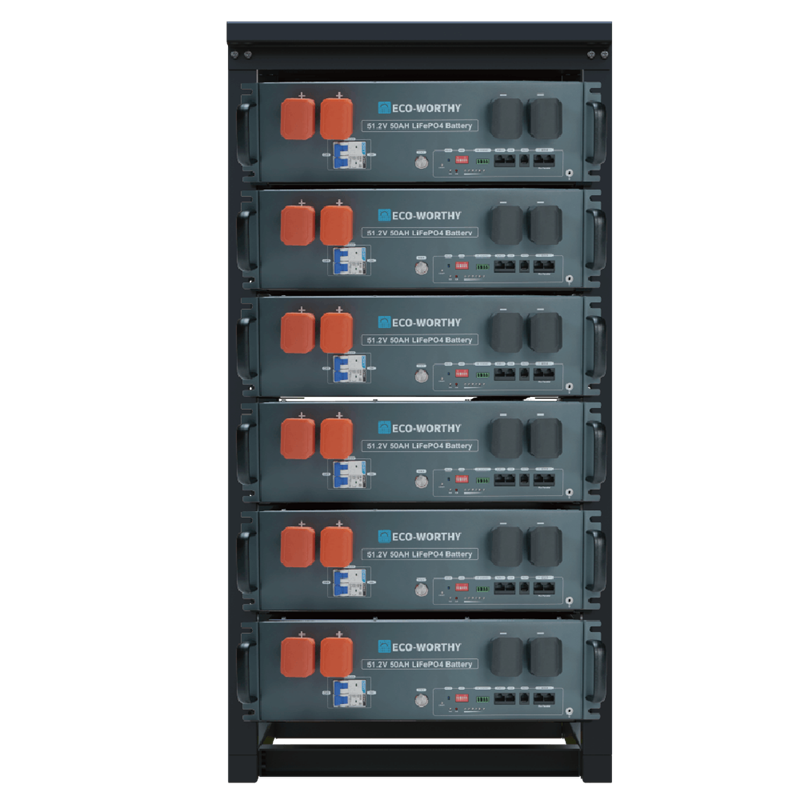

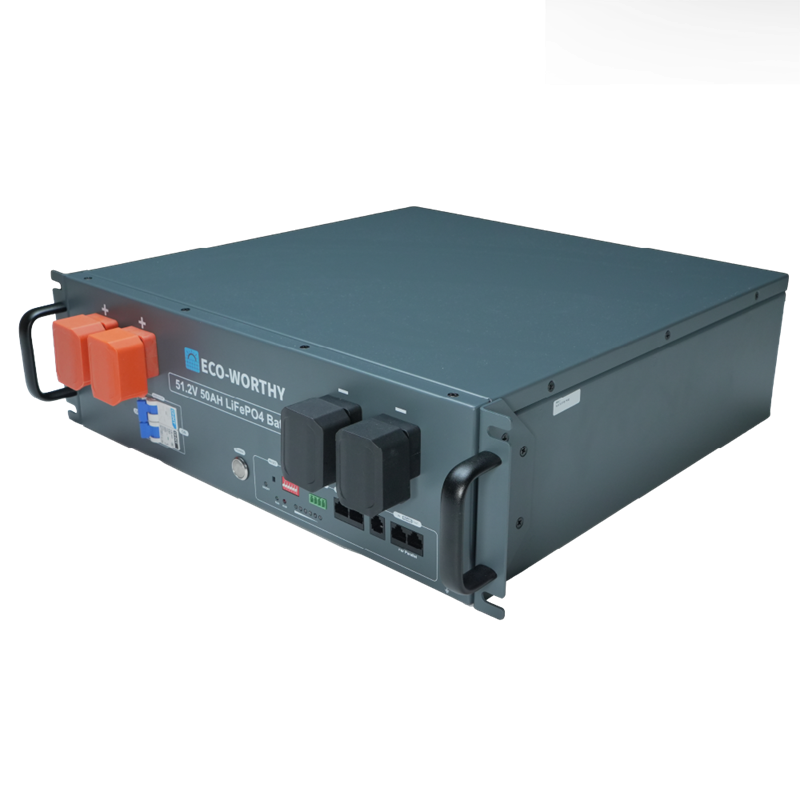

3U rack-optimized design (61.9lbs) for single-person setup. Scalable to 32 parallel units with space-efficient stacking.
High safety

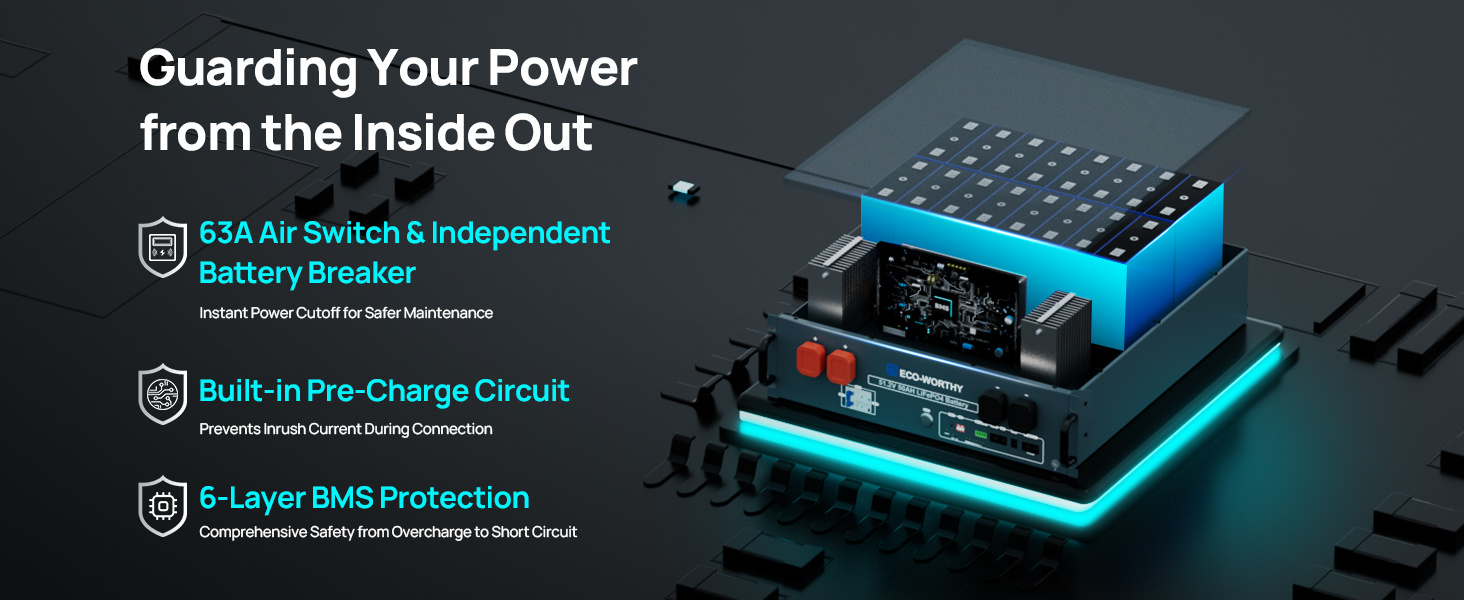

Full-metal enclosure + 100A BMS (OC/OD/OC/SC/OTP safeguards) + 63A circuit breaker & master switch.

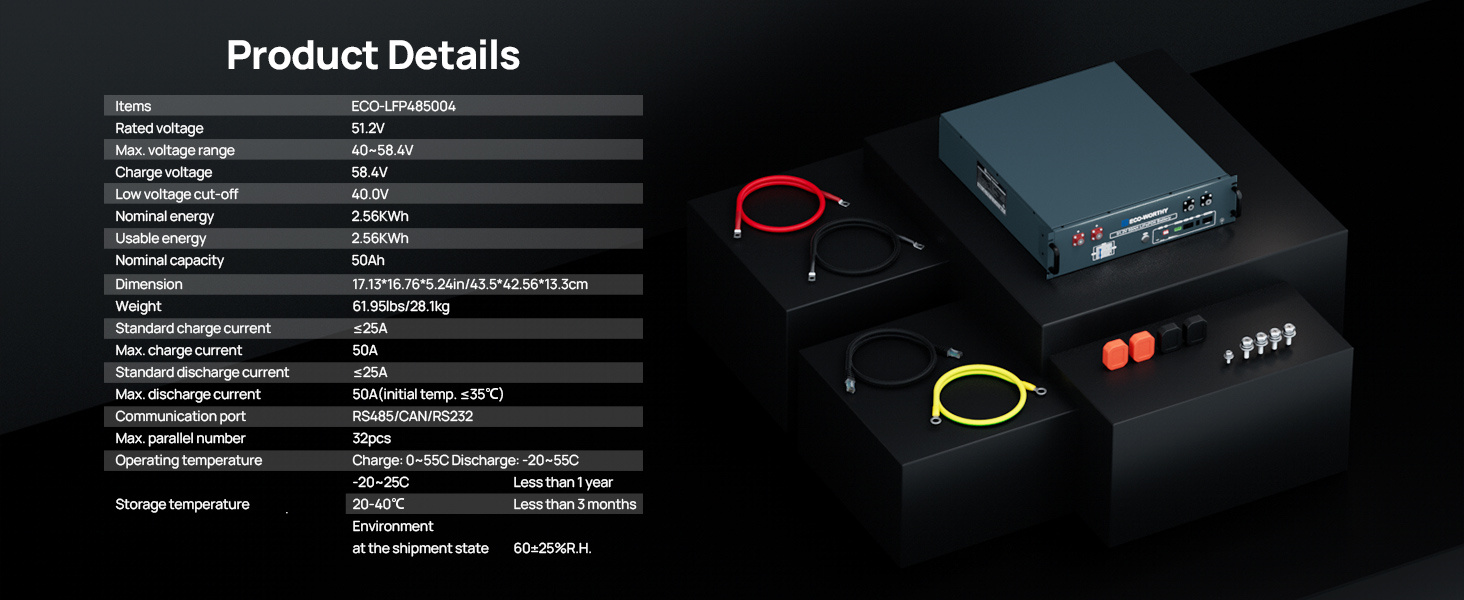

Items |
ECO-LFP485004 |
|
Rated voltage |
51.2V |
|
Max. voltage range |
40~58.4V |
|
Charge voltage |
58.4V |
|
Low voltage cut-off |
40.0V |
|
Nominal energy |
2.56KWh |
|
Usable energy |
2.56KWh |
|
Nominal capacity |
50Ah |
|
Dimension |
17.13*16.76*5.24in/43.5*42.56*13.3cm |
|
Weight |
61.95lbs/28.1kg |
|
Standard charge current |
≤25A |
|
Max. charge current |
50A |
|
Standard discharge current |
≤25A |
|
Max. discharge current |
50A(initial temp. ≤35°C) |
|
Communication port |
RS485/CAN/RS232 |
|
Max. parallel number |
32pcs |
|
Operating temperature |
Charge: 0~55°C Discharge:-20~55'C |
|
Storage temperature |
-20~25'℃ |
Less than 1 year |
20~40℃ |
less than 3 months |
|
Environment at the shipment state |
60±25%R.H. |
|
