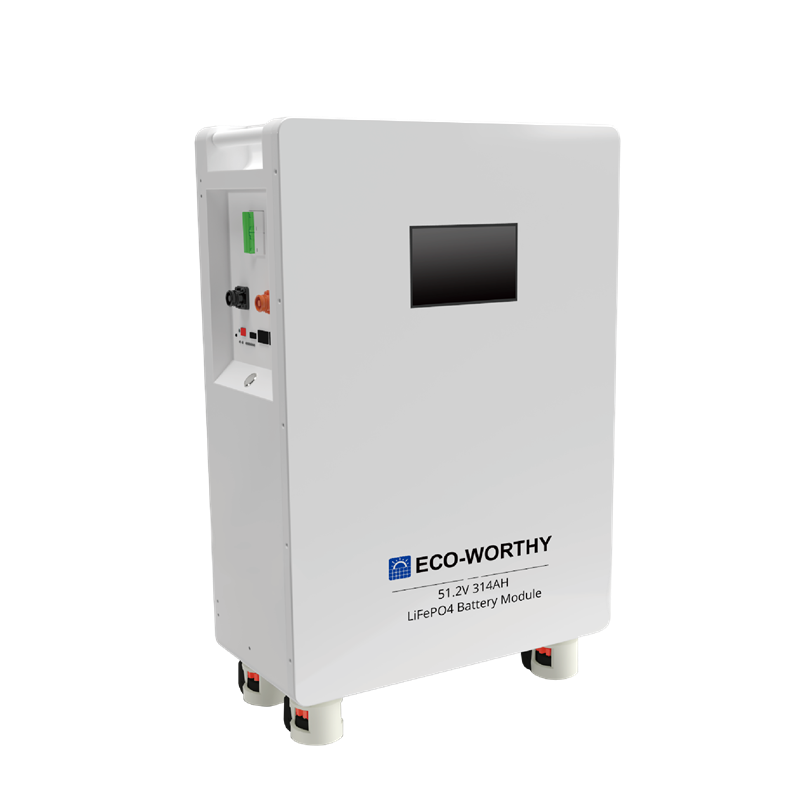

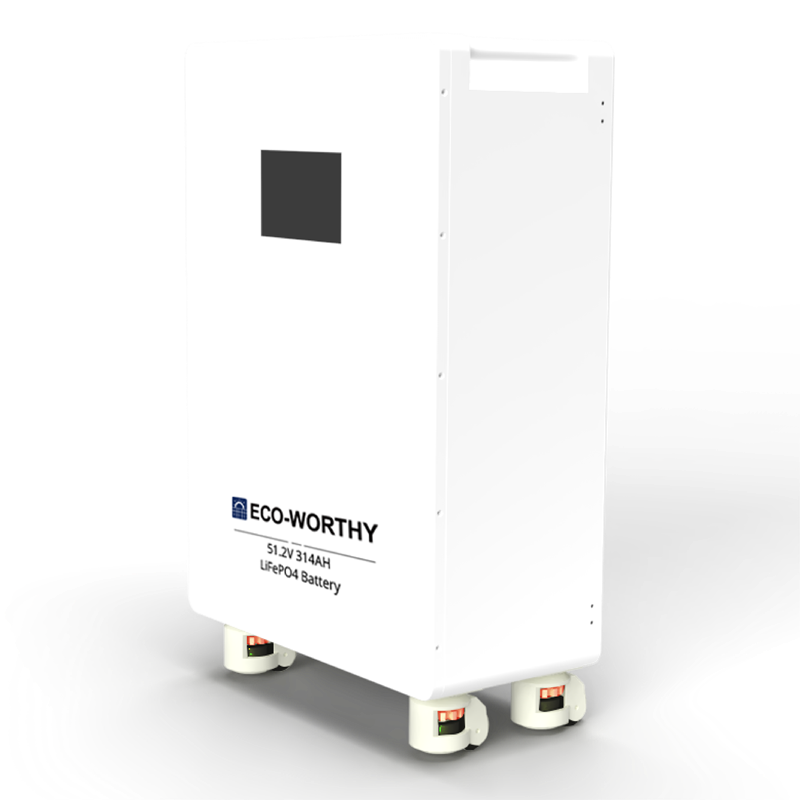

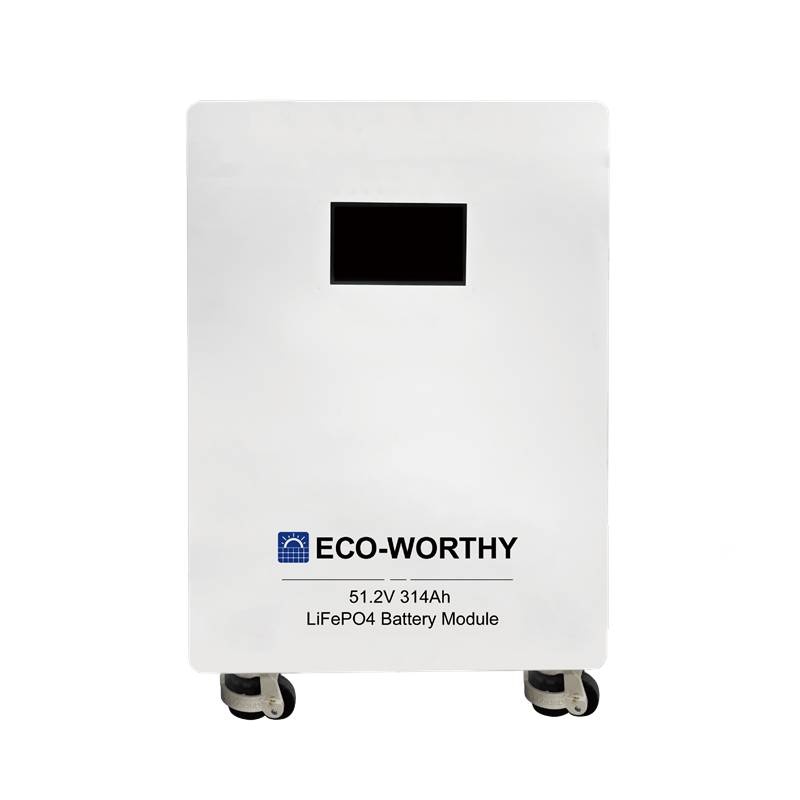

Proven Longevity with A-Grade LiFePO4
Engineered with premium A-Grade LiFePO4 cells, delivering 6,000+ deep-cycle durability and a 20-year design lifespan for sustained, reliable performance.
Massive Scalable Capacity | 241.15 kWh Total
Meet growing energy demands with a parallel-ready design. Supports up to 15 units, enabling a formidable 241.15 kWh total storage capacity.
Universal Inverter Compatibility | Multi-Protocol Support
Features standard CAN & RS485 communication interfaces, ensuring seamless integration and intelligent communication with a wide range of major inverter brands.
Dual-Terminal Design for Enhanced Performance
Equipped with dual positive/negative terminals to simplify parallel wiring, improve current distribution, and ensure superior stability and safety.
Advanced Safety & BMS Protection Suite
A comprehensive Battery Management System provides robust protection (over-voltage, over-current, short-circuit, temperature) and features automatic cell balancing.
Comprehensive Remote Monitoring & Control
Maintain full system oversight with Bluetooth & WiFi connectivity. Monitor, manage, and receive diagnostic alerts remotely via a centralized platform.

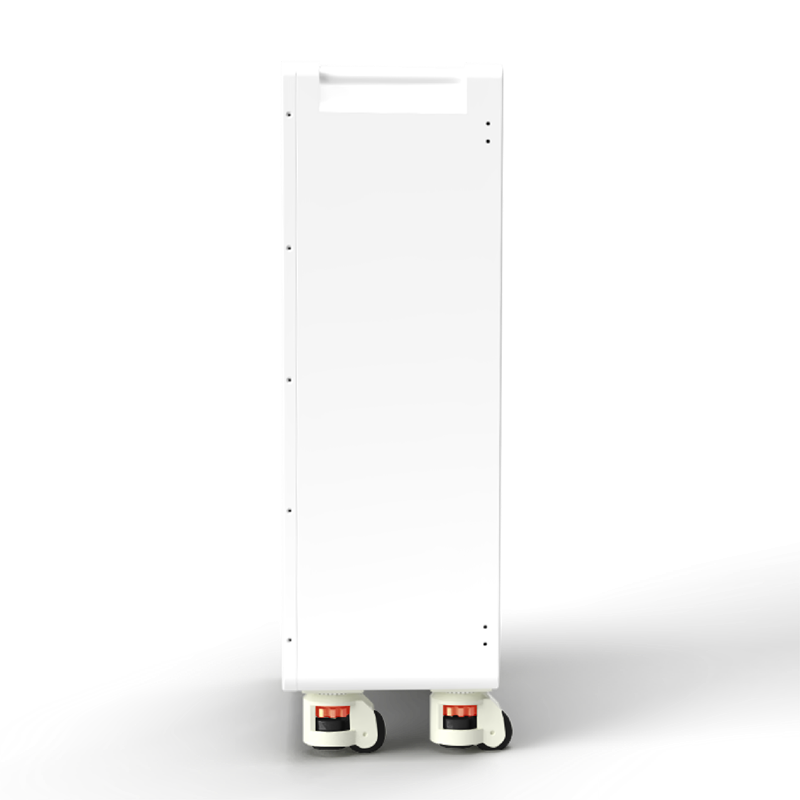

Practical Mobility for Flexible Siting
Designed for flexible placement. Integrated lifting handles and four heavy-duty nylon casters enable secure relocation and easy positioning.
| Nominal Voltage | 51.2v |
| Rated Capacity | 314AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorption Voltage | 58.4V |
| Equalize Voltage | Not applicable |
| Float Voltage * | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-of Voltage | 58.4V |
| Discharge Cut-fVoltage | 40V |
| Recommended Charge Current | 100A |
| Recommended Discharge Current | 100A |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Current | 210A/1s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP30 |
| Internal Resistance | ≤30m2 |
| BMS Leaka ge Curre nt | ≤10mA |
| Charge Temperature Range | 32%F (0℃) t 131°F (55°0) |
| Discharge Temperature Range | -4°F (-20°C) to 131°F (55℃) |
| Storage Temperature 1 week | -4(-20°C) to 149°F (65%℃) |
| Storage Temperature 1 month | -4°F(-20°℃C) t 13F(40℃C) |
| Storage Temperature 1 year | -4°F (-20℃C) to 77°F (25℃) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Storage: | 35% to 85% RH |
| Certifications: MSDS; UN38.3; CE; PSE | |
| Cycle ife | 6000 ycles |
