    Eco-worthy 48V 300Ah LiFePO4 Battery01.png
    Eco-worthy 48V 300Ah LiFePO4 Battery02.png

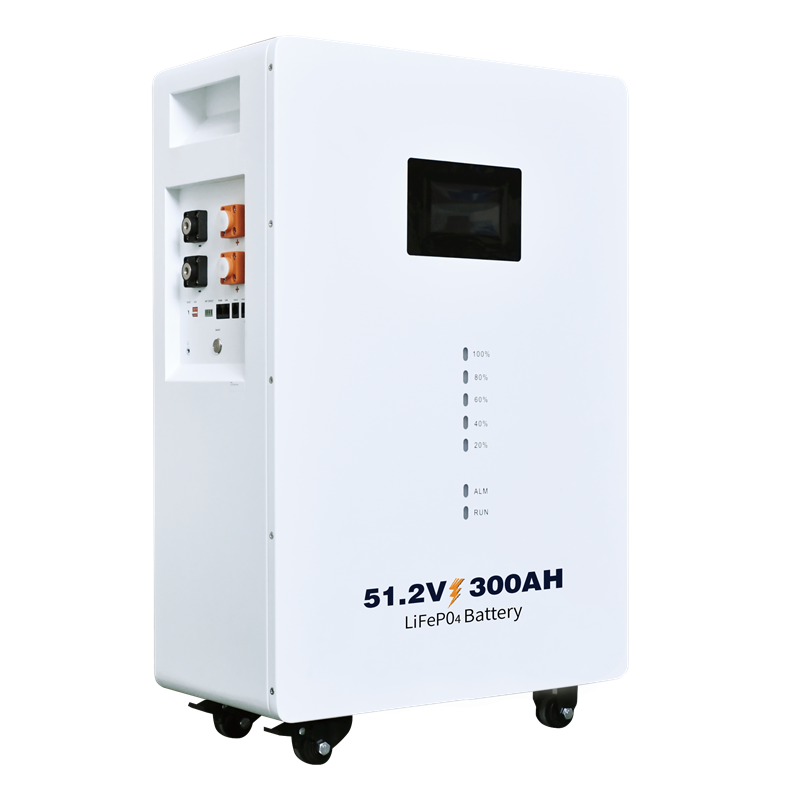

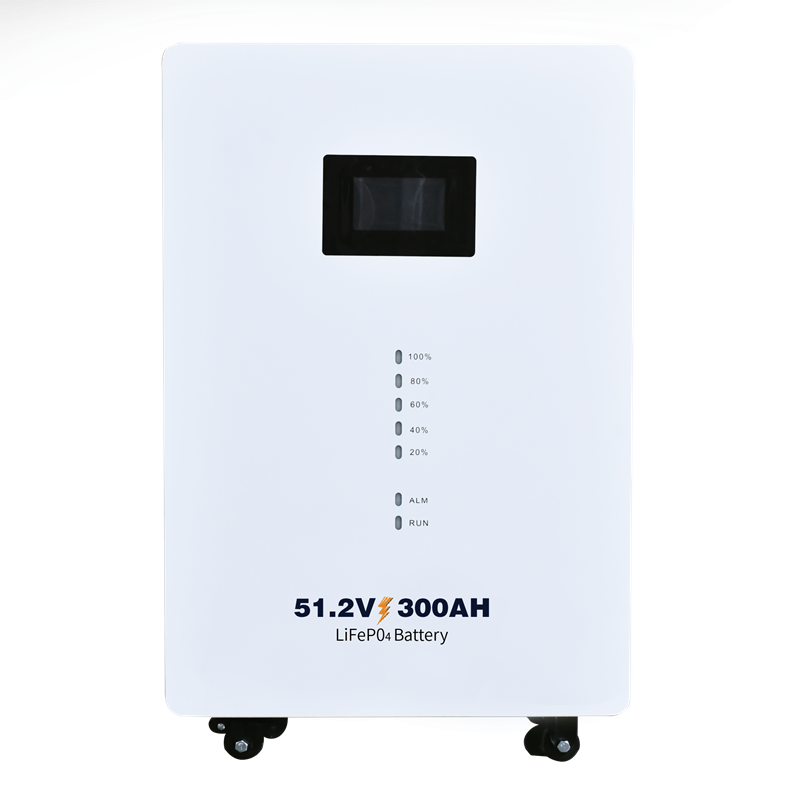

    Eco-worthy 48V 300Ah LiFePO4 Battery

    Eco-worthy 48V 300Ah LiFePO4 battery is the heart of a modern energy system. Engineered with advanced safety features and a robust lifespan of up to 20 years, it provides reliable power day in and day out. With seamless compatibility for major inverters, real-time monitoring via a smart app, and a modular design scalable to 230.4kWh, it's the intelligent, future-proof energy solution you can count on.

    Unlock Enduring Power: The Ultimate 48V 300Ah LiFePO4 Battery for Solar & Off-Grid Energy
    Meet the future of energy storage with our advanced 48V 300Ah Lithium Iron Phosphate battery. Engineered for reliability and performance, this battery is the perfect core for your solar system, off-grid setup, or critical backup power solution. With an exceptional lifespan of up to 20 years and over 6000 cycles, it's not just a battery—it's a long-term investment in energy independence.
    Built with a sophisticated Battery Management System (BMS) and smart monitoring capabilities, it offers unparalleled safety and control. Easily expand your system to 230.4kWh and enjoy seamless compatibility with all major inverters. Experience power that is built to last, designed to scale, and simple to manage.

      • certification (7)
      • certification (3)
      • certification (5)
      • certification (4)
      • certification (1)
      • certification (6)
      Contact us
      product details
      Specification
      download

      Features

      Advanced BMS Protection

      Integrated safeguards against overcharge, short-circuit, and more for ultimate safety and battery longevity.

      Up to 6000 Cycles & 20-Year Lifespan

      A long-term, cost-effective energy solution designed for decades of reliable power.

      Seamless Compatibility

      Supports CAN/RS485 communication for easy integration with major inverter brands.

      Real-Time Smart Monitoring

      Monitor battery status and performance anytime via the mobile app with Bluetooth/WiFi.

      Modular & Scalable Design

      Expandable capacity up to 230.4kWh by connecting 15 units in parallel to meet growing energy needs.
      product description01
      product description02
      product description03
      48V 100Ah LiFePO4 Battery (GC P)03
      product description05
      Attribute Specification
      Nominal Voltage 51.2V
      Rated Capacity 300Ah
      Energy ≈ 15.36 kWh
      Cycle Life ≥ 6000 cycles (@ 80% DoD)
      Communication Ports CAN, RS485, Bluetooth, WiFi
      Parallel Capability Up to 15 units
      Max. Expandable Capacity 230.4 kWh
      Terminals Dual POS/NEG
      Mobility Handles & Nylon Wheels
      300AH 48V LiFePO4 Battery
      Lithium Iron Phosphate (LiFePO4)
      Nominal Voltage 51.2V
      Rated Capacity 280AH
      Charge Method CC/CV
      Charge Voltage 58.4V
      Bulk/Absorption Voltage 58.4V
      BMS Balancing Voltage Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging
      Equalize Voltage Not applicable
      Float Voltage * Not applicable
      Temperature Compensation No/Disable
      Charge Cut-off Voltage 58.4V
      Discharge Cut-off Voltage 40V
      Recommended Charge Current 100A
      Recommended Discharge Current 100A
      Maximum Continuous Charge Current 200A
      Maximum Continuous Discharge Current 200A
      Peak Current 210A/1s
      WiFi Yes
      Bluetooth Yes
      Communication CAN/RS485/RS232
      Self Heating No
      Protection Rating IP20
      BMS Protection • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature
      Internal Resistance ≤30mΩ
      BMS Leakage Current ≤10mA
      Charge Temperature Range 32°F (0°C) to 131°F (55°C)
      Discharge Temperature Range -4°F (-20°C) to 131°F (55°C)
      Storage Temperature 1 week  -4(-20°C) to 149°F (65°C)
      Storage Temperature 1 month -4°F (-20°C) to 113°F(40°C)
      Storage Temperature 1 year -4°F (-20°C) to 77°F (25°C)
      Humidity Operating: 5% to 90 % RH
      Humidity Storage: 35% to 85% RH
      Certifications: MSDS; UN38.3; CE; PSE
      Cycle Life 6000 cycles
      Max connected in Parallel 15 units Max connected in Series 1 units
