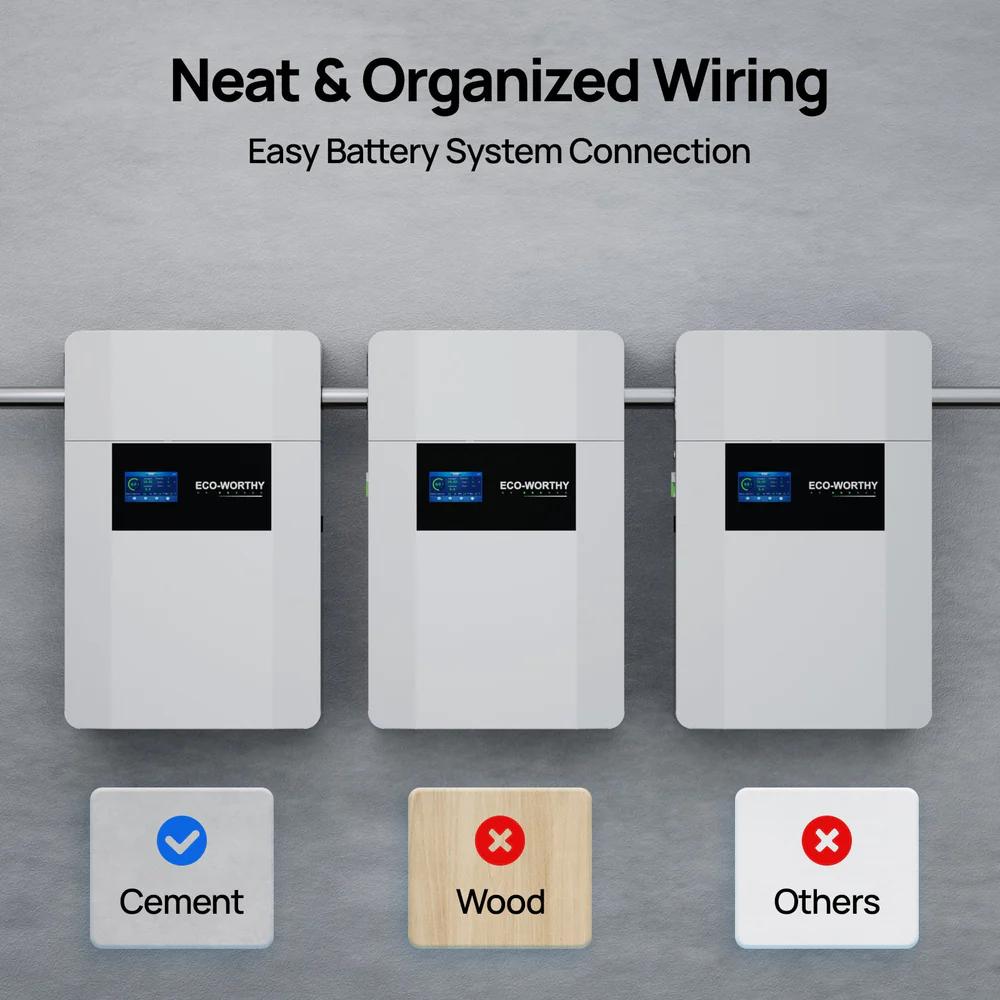

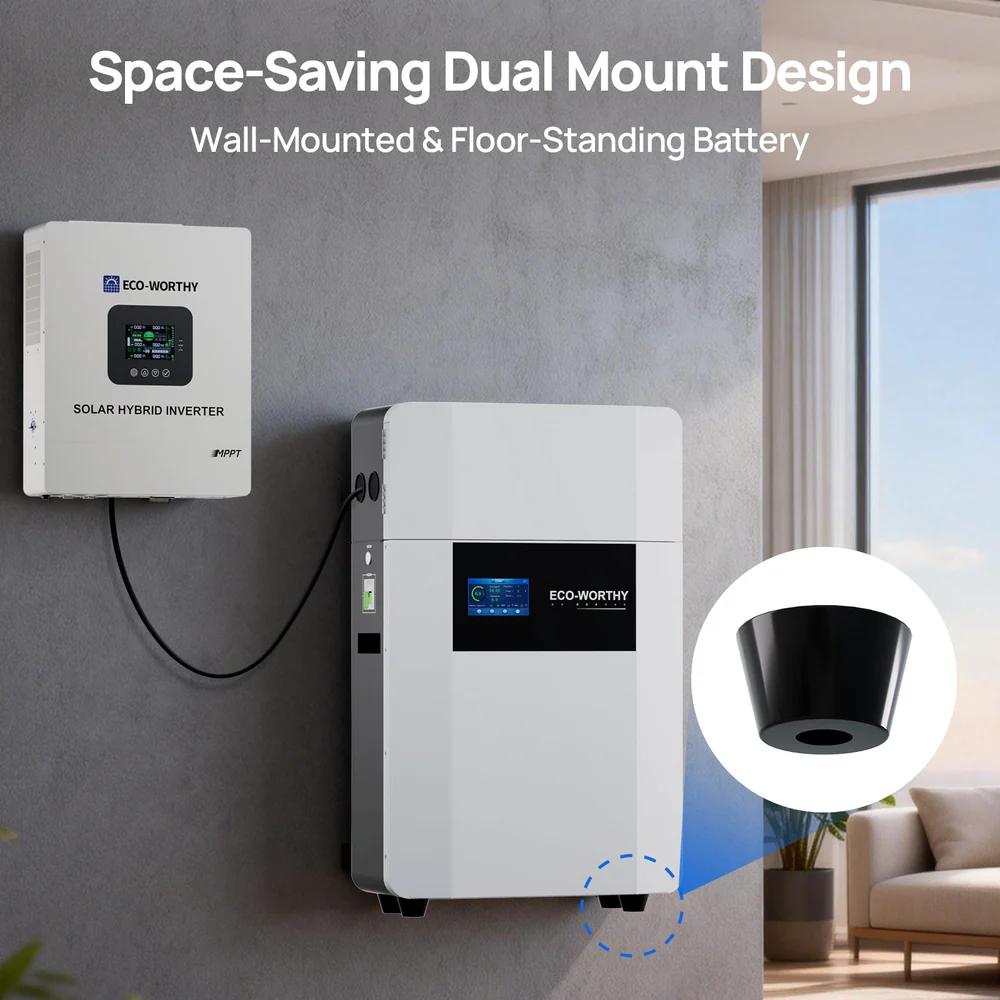

Flexible & Standardized Installation
Supports both wall-mounted and floor-standing configurations with integrated conduit boxes for tidy and compliant wiring. Enhanced brackets and detailed installation guides enable quick, cost-effective deployment across diverse commercial and industrial settings.

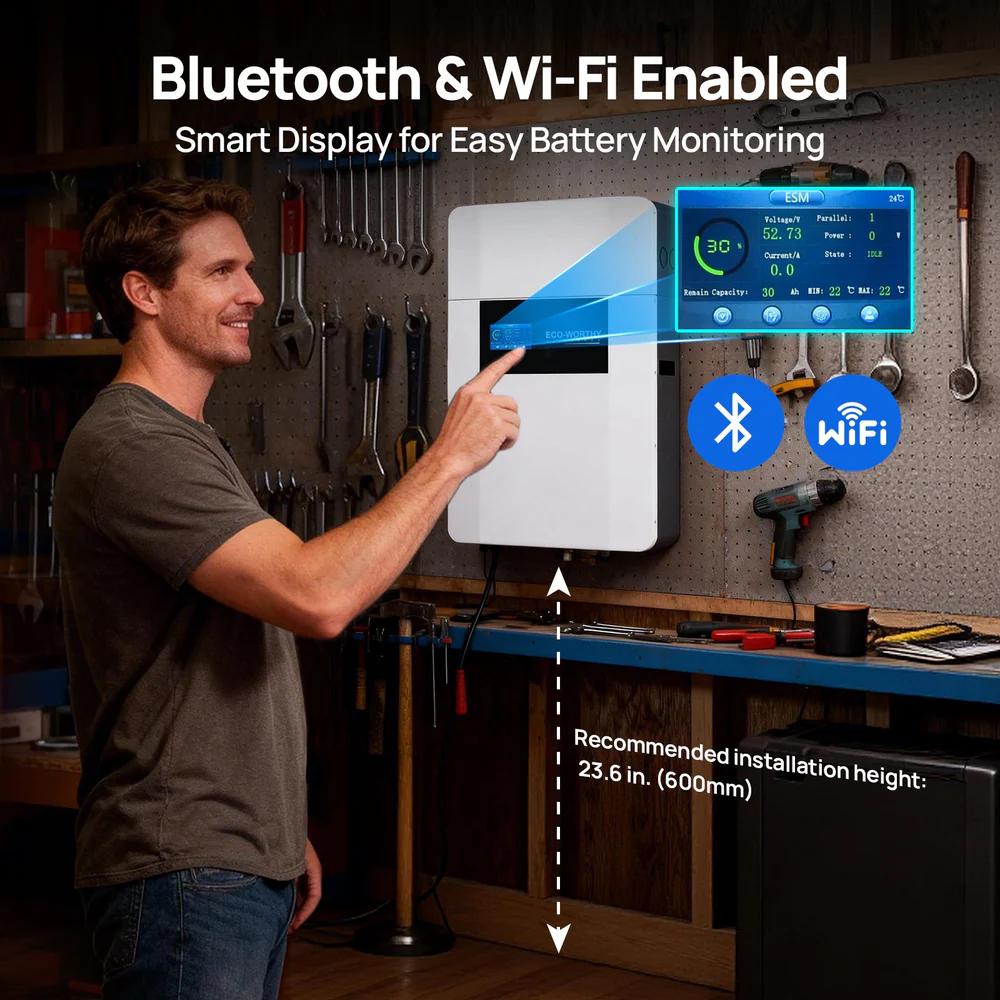

Intelligent Remote Monitoring & Control
Equipped with a 4.3-inch smart display and dual Bluetooth/Wi-Fi connectivity. Enables real-time battery status monitoring and remote management via mobile app, supporting efficient maintenance and operational oversight.
Multi-Layer Integrated Protection
Built-in intelligent BMS, 125A circuit breaker, and pre-charge circuit provide comprehensive protection against overcurrent, short circuits, voltage surges, and inrush currents, ensuring system safety and stability in continuous operation.

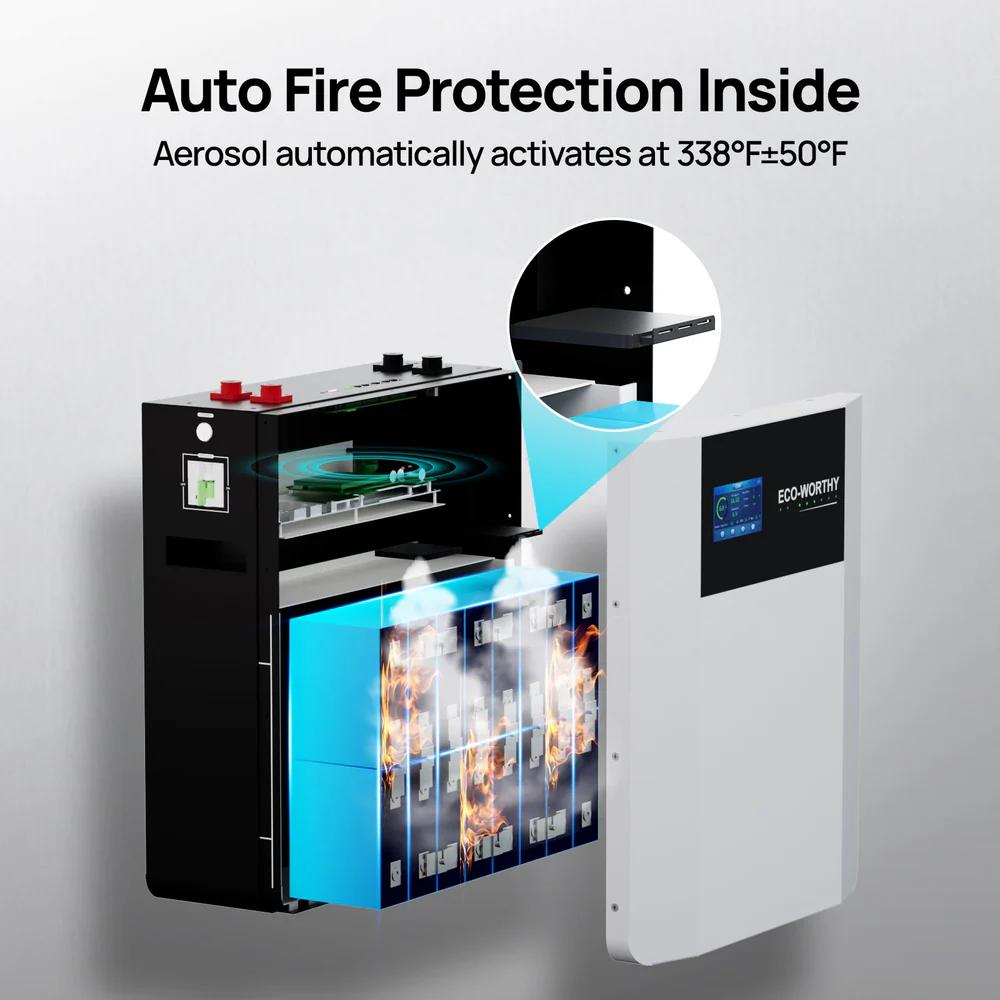

Fire & Impact Resistant Design
Includes an integrated aerosol fire suppression module to help prevent thermal runaway, paired with a high-strength metal enclosure for enhanced fire resistance and physical durability, meeting stringent safety requirements.
Long-Term Reliability & Professional Support
Backed by a 10-year limited warranty and lifetime technical support, delivering dependable performance for off-grid and energy storage systems while ensuring long-term operational confidence and return on investment.
| Rated voltage | 51.2V |
| Max.voltagerange | 40~58.4V |
| Charge voltage | 58.4V |
| Low voltage cut-off | 40.0V |
| Nominal energy | 5.12KWh |
| Usable energy | 5.12KWh |
| Nominal capacity | 100Ah |

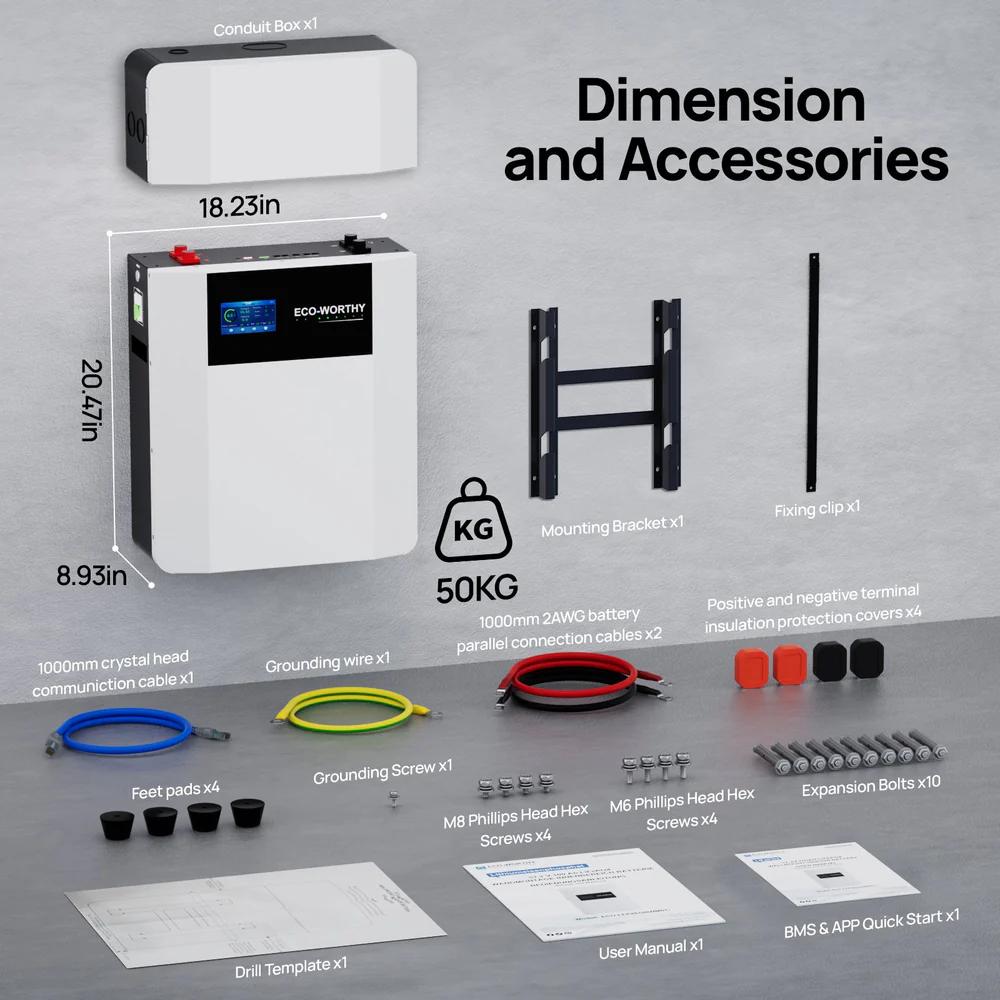

| Dimension | 18.23*8.93*20.47in/46.3*22.7*52cm |
| Weight | 109lbs/50kg |
| Standard charge current | ≤50A |
| Max.charge current | 100A |
| Standard discharge current | ≤50A |
| Max.discharge current | 100A(initialtemp.≤35°C) |

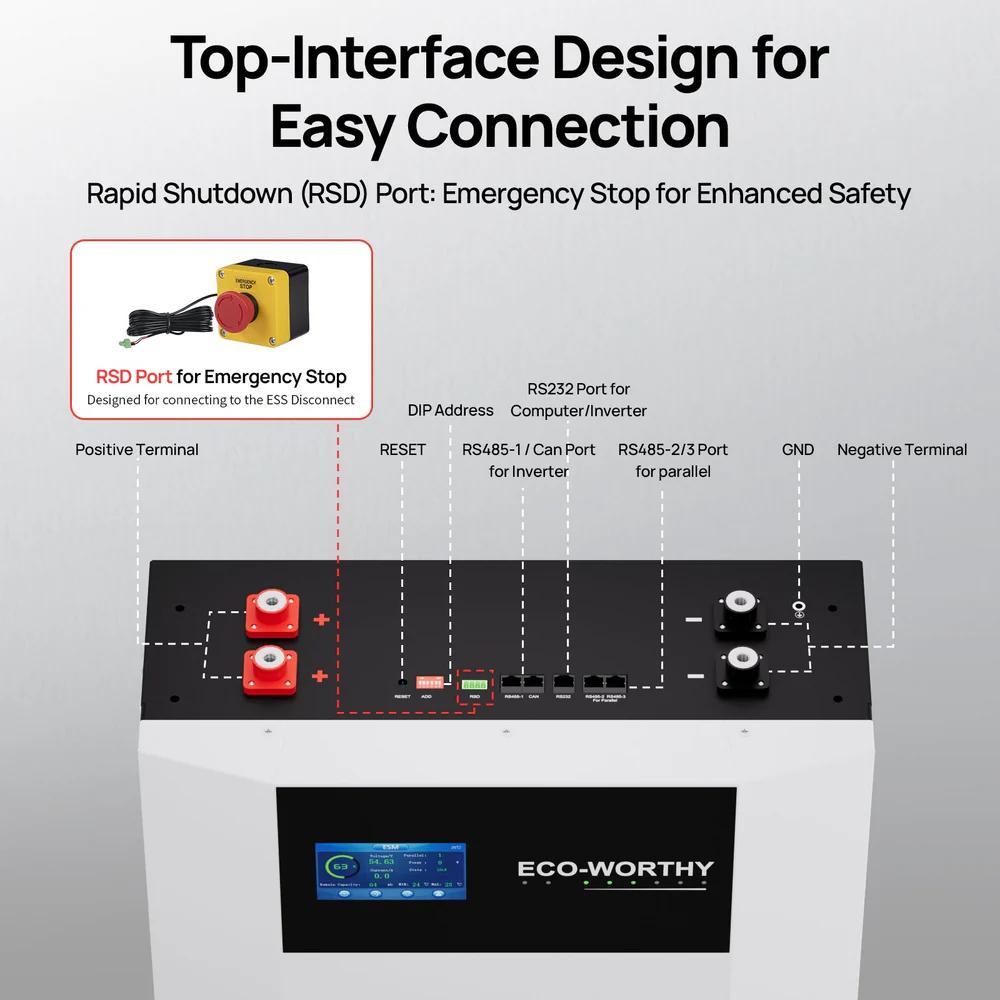

| Communication port | RS485/CAN/RS232 |
| Max.parallel number | 32pcs |
| Rated capacity | 100Ah（0.5C,77°F） |
| Operating temperature | Charge: -20~55°C Discharge: -20~55°C |
| Cycle Life | ≥6000 cycles @ 25 °C, 0.5C charge / 0.5C discharge, ≥80% SOH |
| Warranty | 10 Years |
