Real-time Battery Monitoring
ECO-WORTHY 48V(51.2V) Server Rack Battery supports CAN/RS485 for seamless communication with popular all-in-one solar inverters.You can also easily monitor your battery’s status through the mobile app, which supports both Bluetooth and WiFi connections. Stay informed on your battery’s health and performance in real-time, all from the convenience of your smartphone.

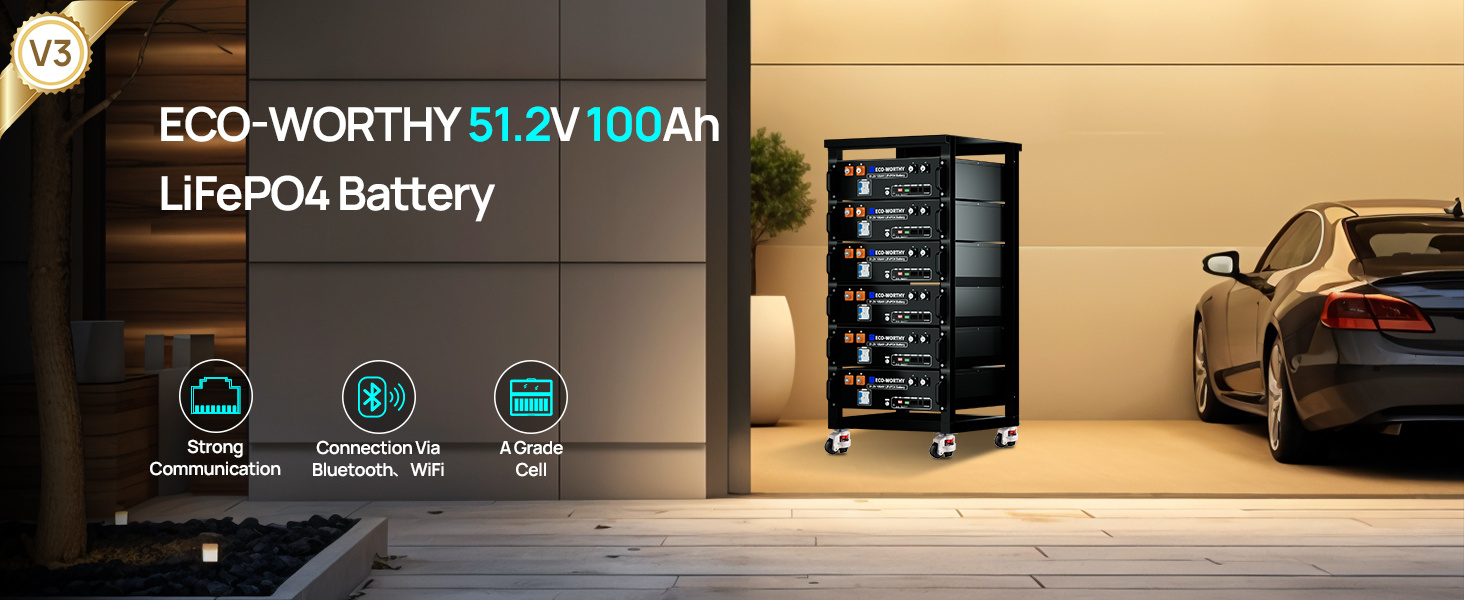

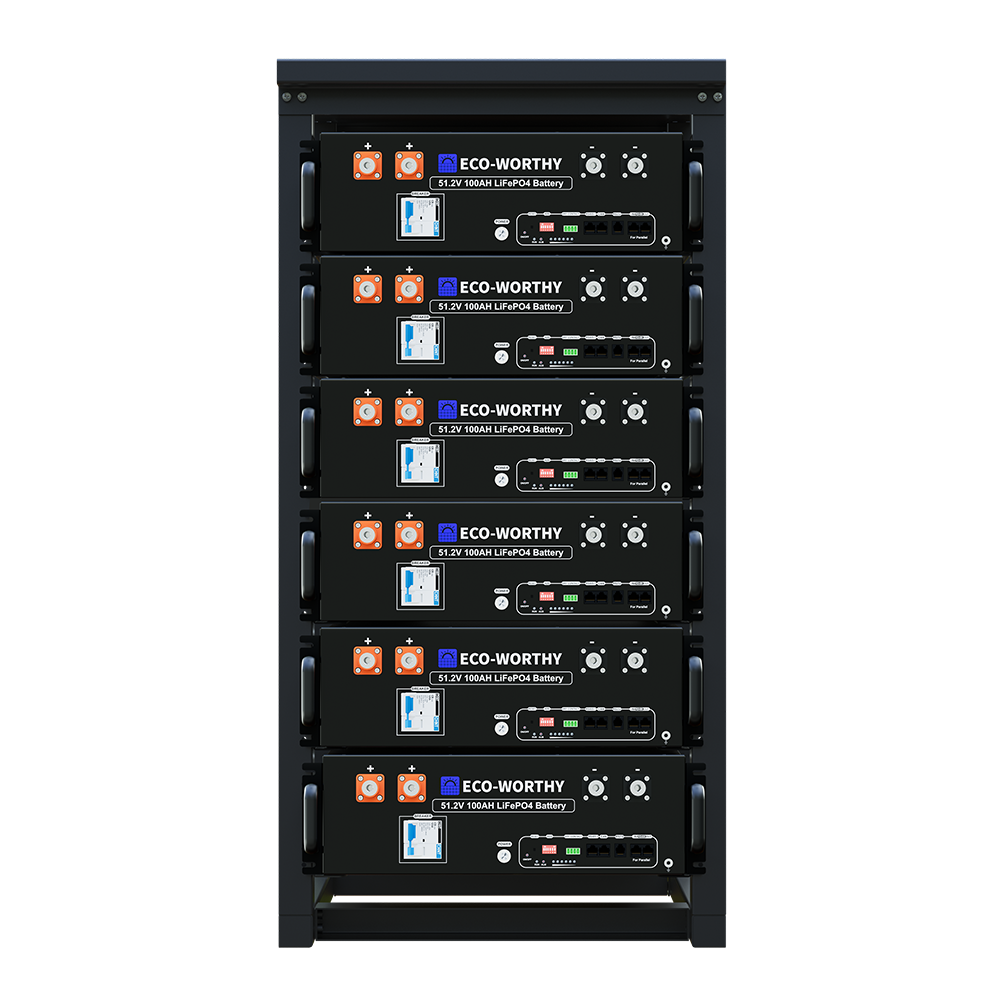

Space-Saving Design
Perfectly compatible with server rack, this 48v 100ah lithium battery allows for vertical installation, maximizing space efficiency. Weighing only 95 pounds, it can be easily handled by one person, with the option to connect up to 32 batteries in parallel for larger setups.

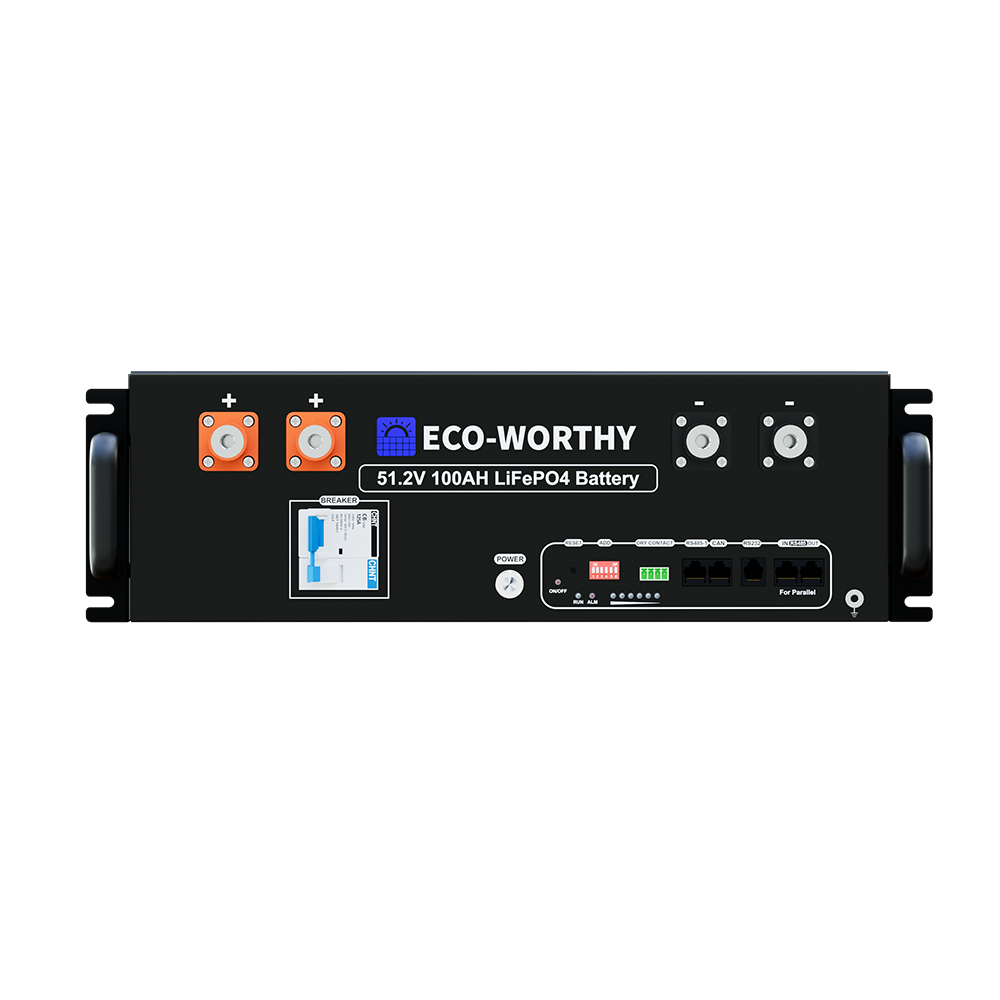

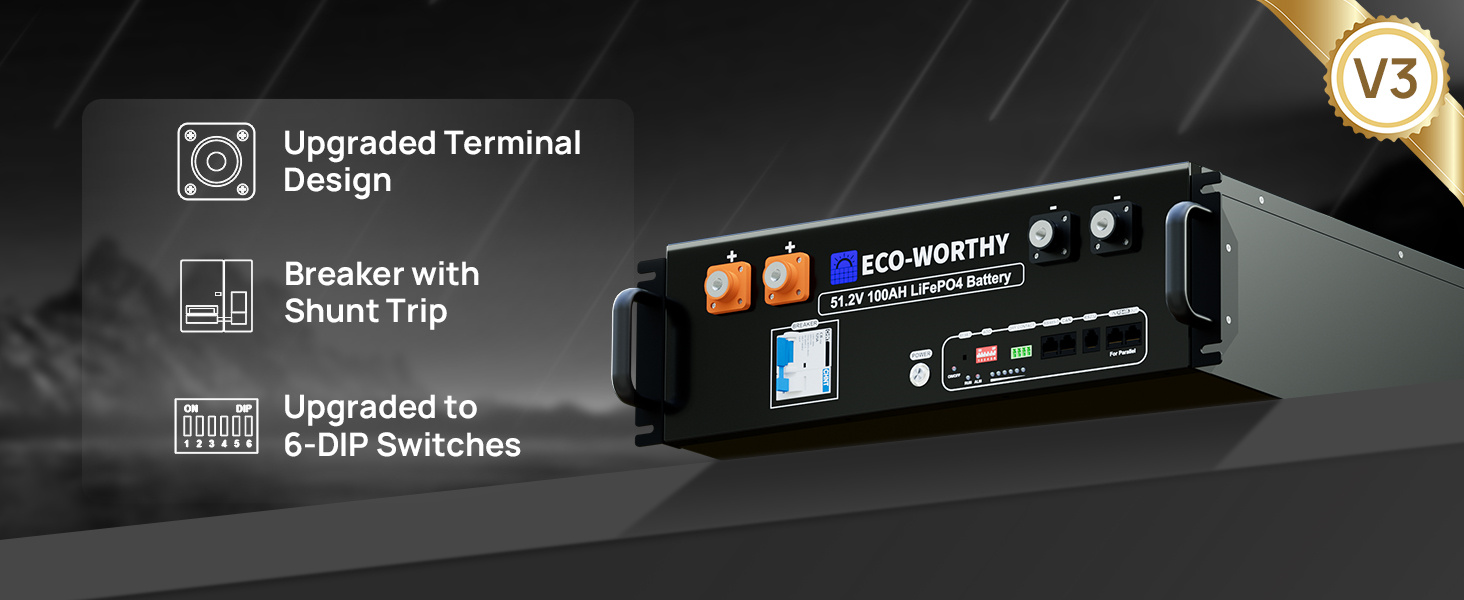

Robust Safety Features
This 48V LiFePO4 battery is built for safety with a durable full-metal shell and a 100A BMS that provides multiple layers of protection. It also integrates a 125A air switch and a battery power switch to ensure your system stays safe and secure under any conditions.
High-Quality Grade A Cells
Powered by premium Grade A cells, this 48v 100ah LiFePO4 battery offers exceptional consistency and long-lasting performance. Ten-year warranty, you can trust in the quality and reliability of this battery for years to come.
Complete and Ready to Use

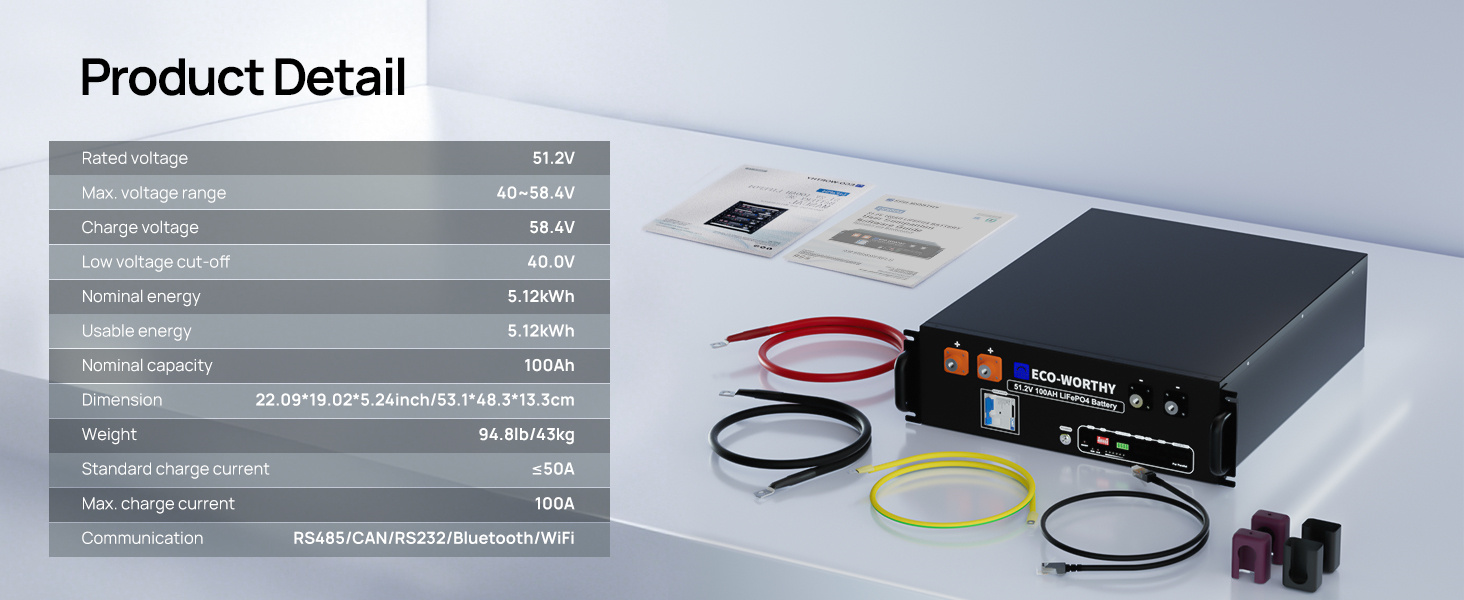

This battery comes fully equipped with all necessary accessories, including parallel wires, communication cables, grounding wires, protective terminal covers, terminal screws, and a user manual, ensuring you’re ready to go straight out of the box.
| Manufacturer | ECO-WORTHY |
| Brand | ECO-WORTHY |
| Model | 51.2V100Ah |
| Item Weight | 100 pounds |
| Product Dimensions | 17.13 x 20.55 x 5.63 inches |
| Item model number | L13080202121-1 |
| Batteries | 1 12V batteries required. |
| Manufacturer Part Number | L13080202121-1 |
| Amperage | 100 Amps |
| Voltage | 51.2 Volts |
| 100AH 48V LiFePO4 Battery | |
| Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorption Voltage | 58.4V |
| BMS Balancing Voltage | Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging |
| Equalize Voltage | Not applicable |
| Float Voltage * | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Current | 120A/2s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP30 |
| BMS Protection | • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature |
| Internal Resistance | ≤30mΩ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C) to 131°F (55°C) |
| Discharge Temperature Range | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature 1 week | -4(-20°C) to 149°F (65°C) |
| Storage Temperature 1 month | -4°F (-20°C) to 113°F(40°C) |
| Storage Temperature 1 year | -4°F (-20°C) to 77°F (25°C) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Storage: | 35% to 85% RH |
| Certifications: MSDS; UN38.3; CE; PSE | |
| Cycle Life | 6000 cycles |
| Max connected in Parallel 15 units | Max connected in Series 1 units |
