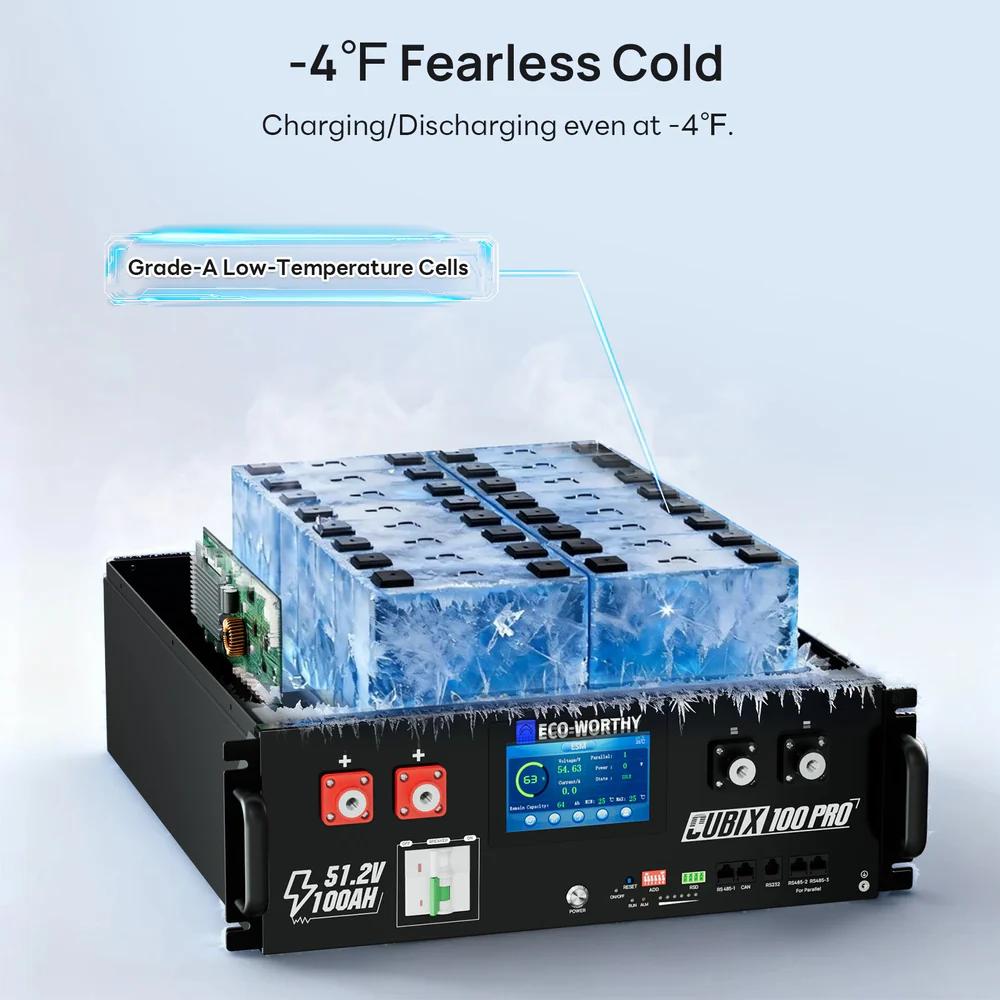

Operation down to -4℉
Special low-temperature electrolyte enables safe charging in extreme cold without cell damage, supporting reliable operation down to -4℉ and delivering 6,000+ long-life cycles.

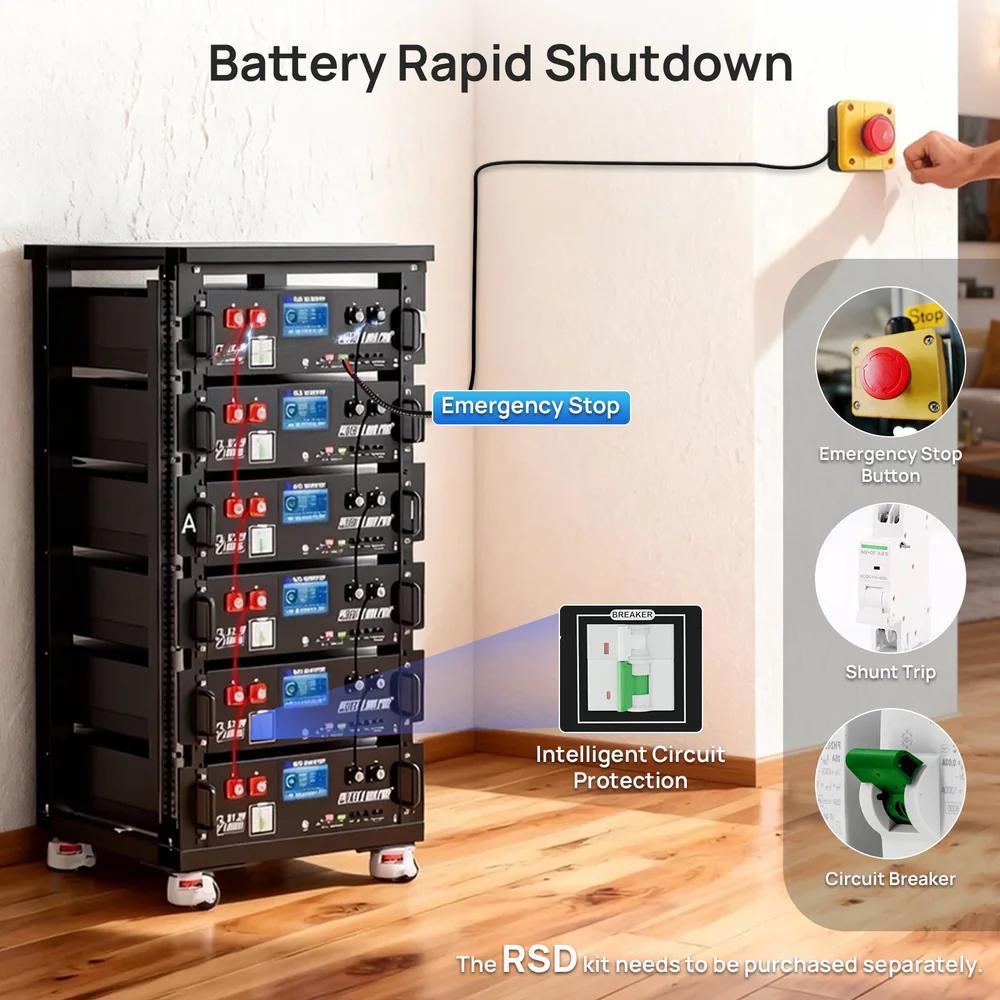

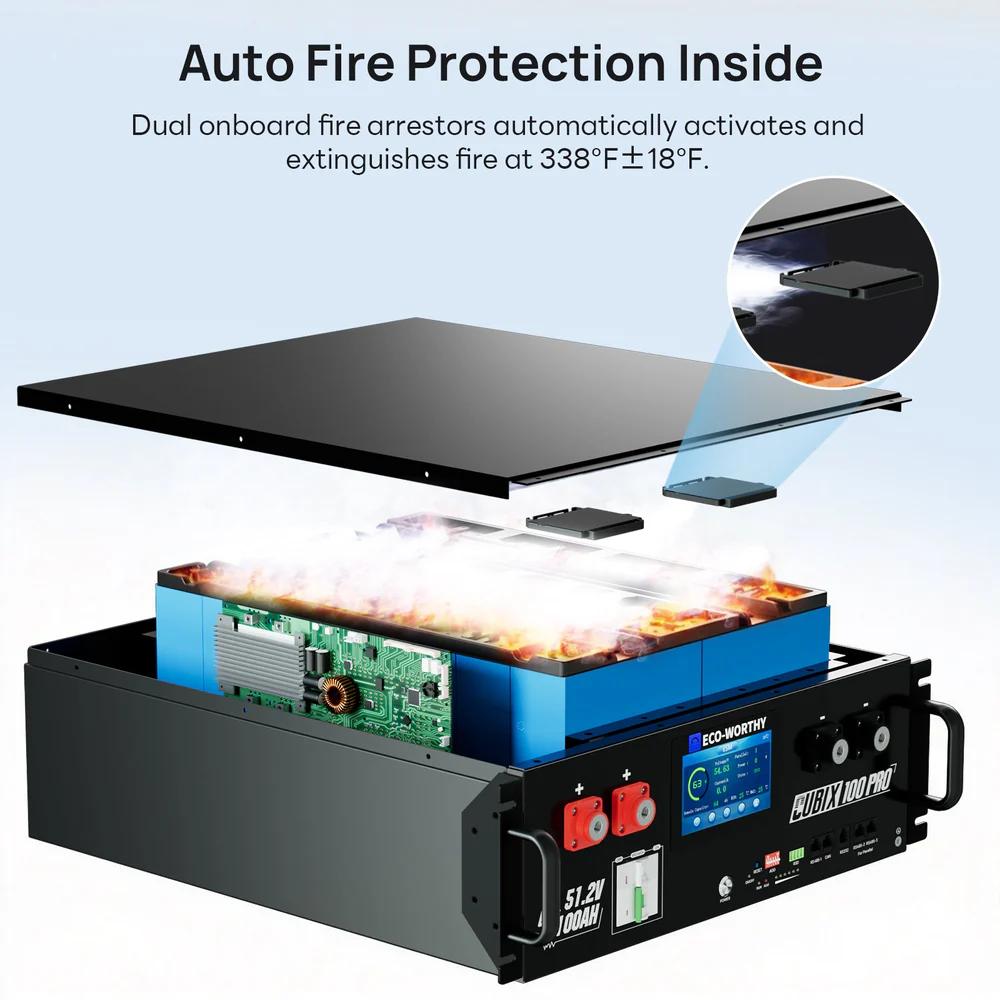

Multiple Layers of Active Safety Protection

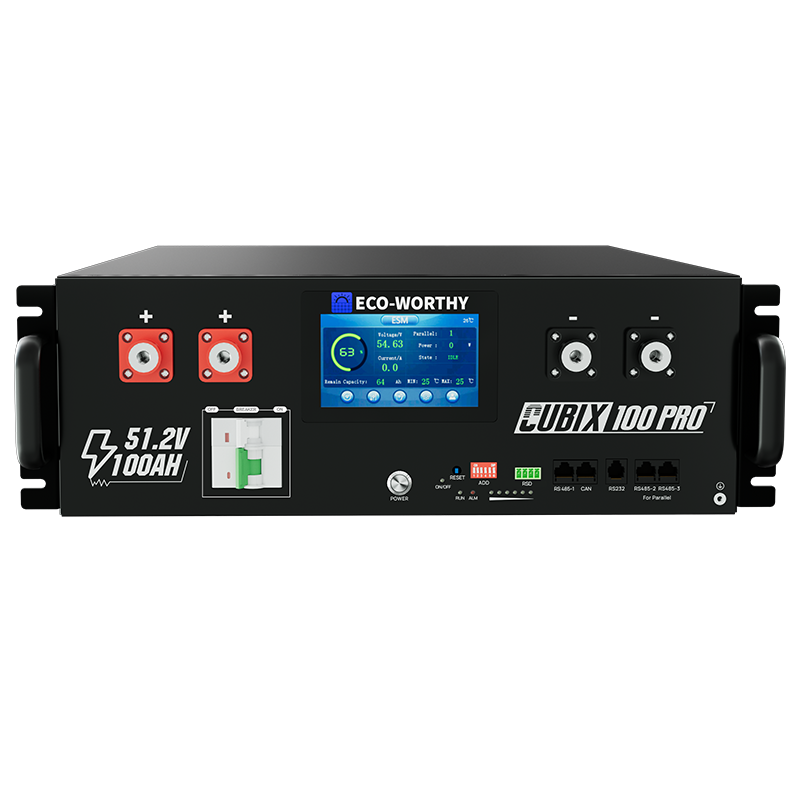

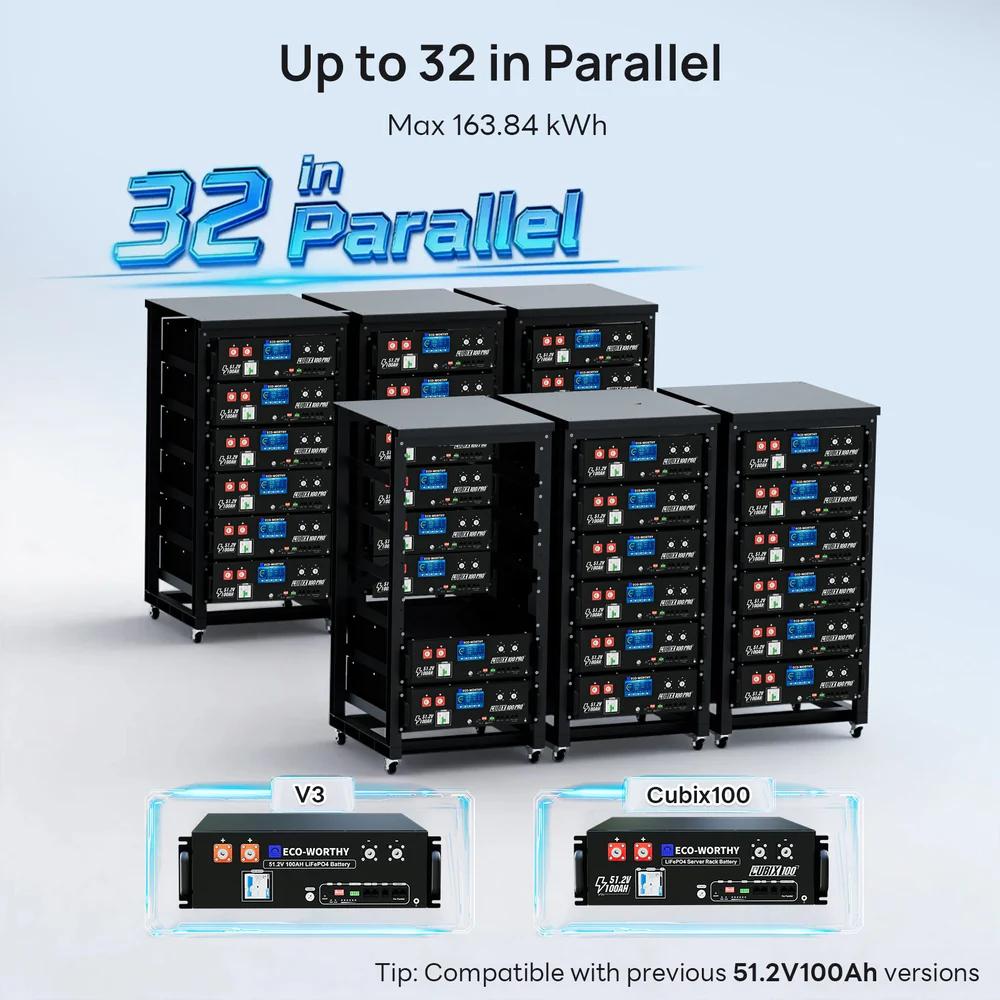

Perfectly compatible with server rack, this 48v 100ah lithium battery allows for vertical installation, maximizing space efficiency. Weighing only 95 pounds, it can be easily handled by one person, with the option to connect up to 32 batteries in parallel for larger setups.

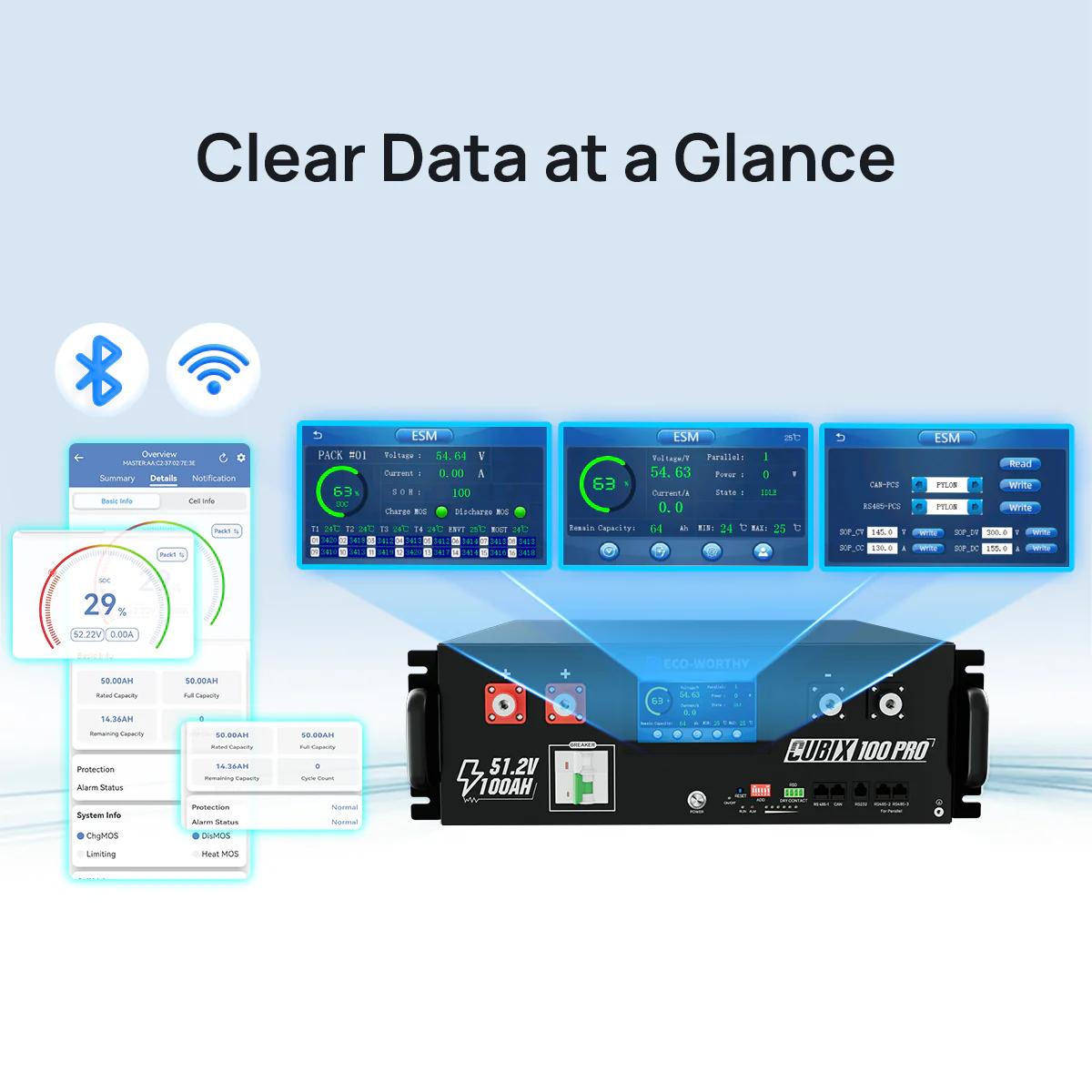

Smart Monitoring & Control
Features an intuitive 4.3-inch full-color touchscreen for real-time status monitoring, plus Bluetooth and WiFi connectivity for convenient remote access and management.

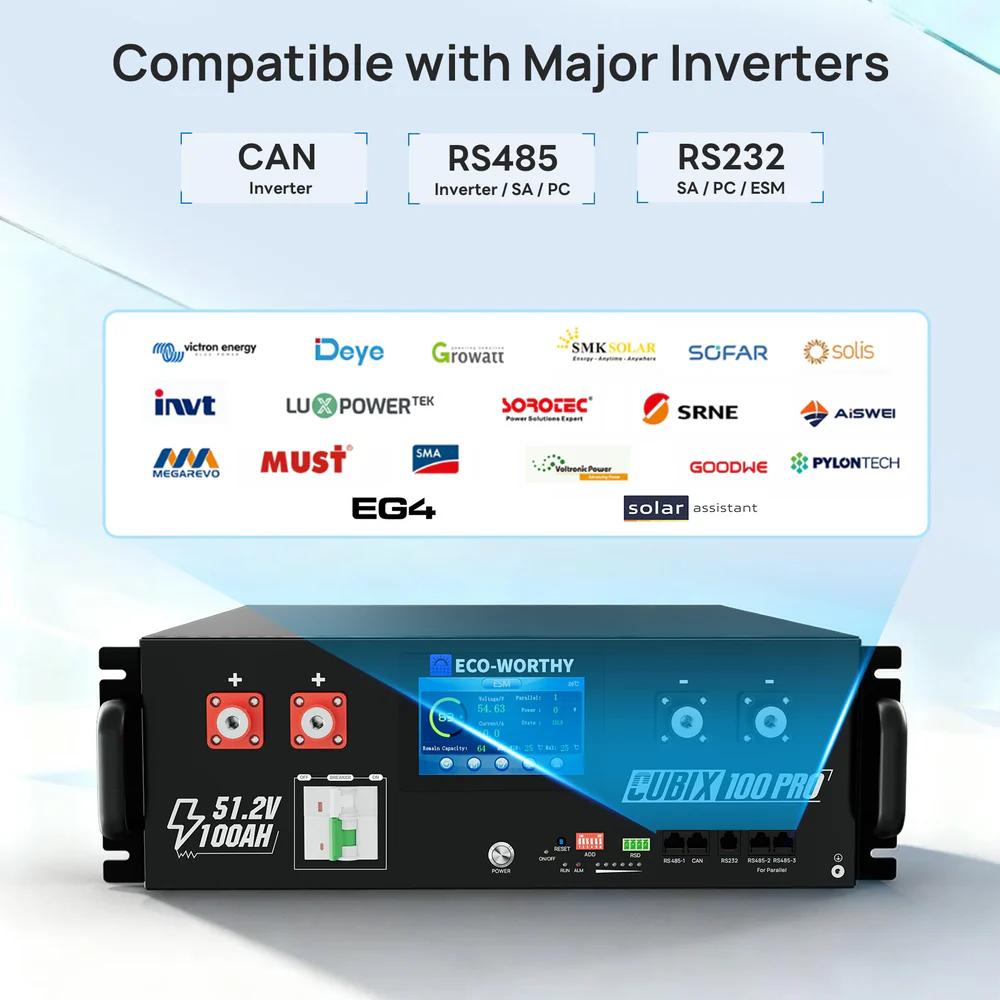

90% Closed-Loop Inverter Compatibility
Seamlessly communicates with most mainstream inverters, including EG4, Sol-Ark, DEYE, SRNE, Victron, Growatt, Sungoldpower, and more, ensuring stable system integration.
Long-Term Reliability & Support
Backed by a 10-year limited warranty and lifetime technical support, delivering long-term confidence for off-grid and energy storage applications.
| Manufacturer | ECO-WORTHY |
| Model | 51.2V100Ah |
| Item Weight | 100 pounds |
| Product Dimensions | 21.71*19.02*6.06in/55.15*48.3*15.4Cm |
| Amperage | 100 Amps |
| Voltage | 51.2 Volts |
| 100AH 48V LiFePO4 Battery | |
| Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorption Voltage | 58.4V |
| BMS Balancing Voltage | Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging |
| Equalize Voltage | Not applicable |
| Float Voltage * | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Current | 120A/2s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP30 |
| BMS Protection | • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature |
| Internal Resistance | ≤30mΩ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C) to 131°F (55°C) |
| Discharge Temperature Range | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature 1 week | -4(-20°C) to 149°F (65°C) |
| Storage Temperature 1 month | -4°F (-20°C) to 113°F(40°C) |
| Storage Temperature 1 year | -4°F (-20°C) to 77°F (25°C) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Storage: | 35% to 85% RH |
| Cycle Life | 6000 cycles |
| Max connected in Parallel 15 units | Max connected in Series 1 units |
