Highest safety
Highest safety, battery is made from LiFePO4 chemistry and comply with highest international safety and transport standard.
Build-in precharge
Build-in precharge circuit to avoid rush current when connecting with different inverter/chargers.
Automatic dynamic
Automatic dynamic addressing function when connected multiple batteries together.
Rapid shutdown function for North American market.
DOD
Support a maximum of 96% DOD under off-grid and back-up application LiFePO4 as cathode material and automatic balancing function to meet long cycle life
Compact size
Compact size and light weight for easy installation and maintenance.

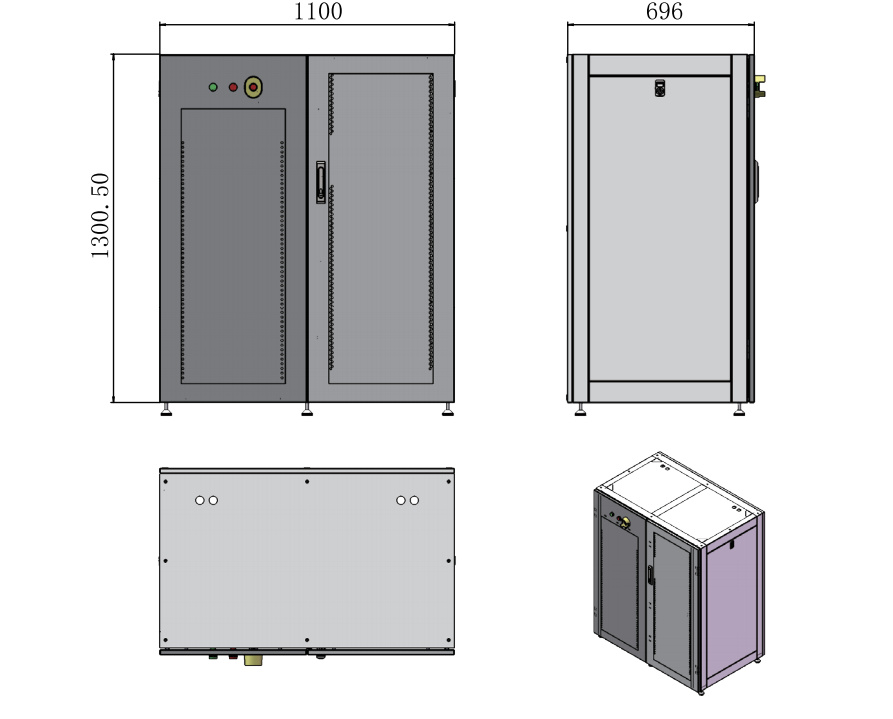

Cabinets Dimension

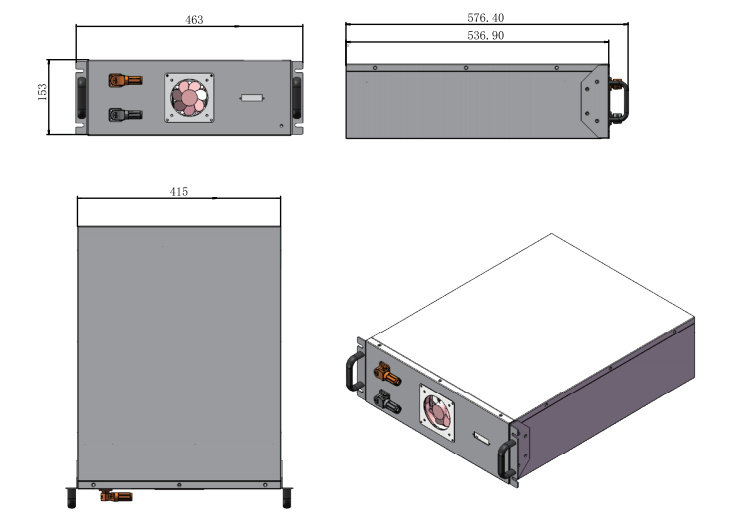

Single Pack Dimension

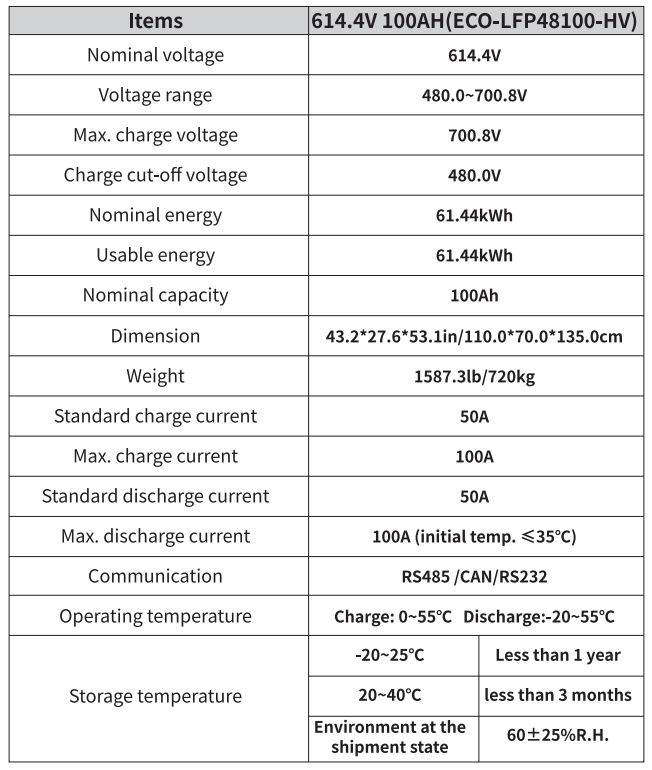

High Voltage Cabinet Parameters
| Lithium Iron Phosphate (LiFePO4) | |
| Model | 614.4V100AH-A(12) |
| Nominal Votage | 614.4V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 61.44KWh |
| Battery Type | LFP |
| Cycle Life | 600080OD0D,0.5,25C) |
| Maximum Number of Units i Series | 12 units |
| Charge CutoffVotage | 700.8V |
| Discharge Cut-off Voltage | 518.4V |
| Standard Charge Current | 50A |
| Maximum Charge Current | 100A |
| Standard Discharge Current | 50A |
| Maximum Discharge Current | 100A |
| Dimensons | 420*550*245mm(A) |
| Weight | 585kg(A) |
| Communication | CAN/RS485/RS232 |
| Charging Temperature Range | 0'C-55"C |
| Discharging Temperature Range | -20℃-5℃C |
| Cooling Method | Natural Co ling |
| Protection | Buiti Smart BMS |
| IP Rating | IP30 |
| Waranty | 5 Years |
| Ccerification | MSDS,UN38.3,CE-EMC,JEC62619 |
