EASY TO INSTALL

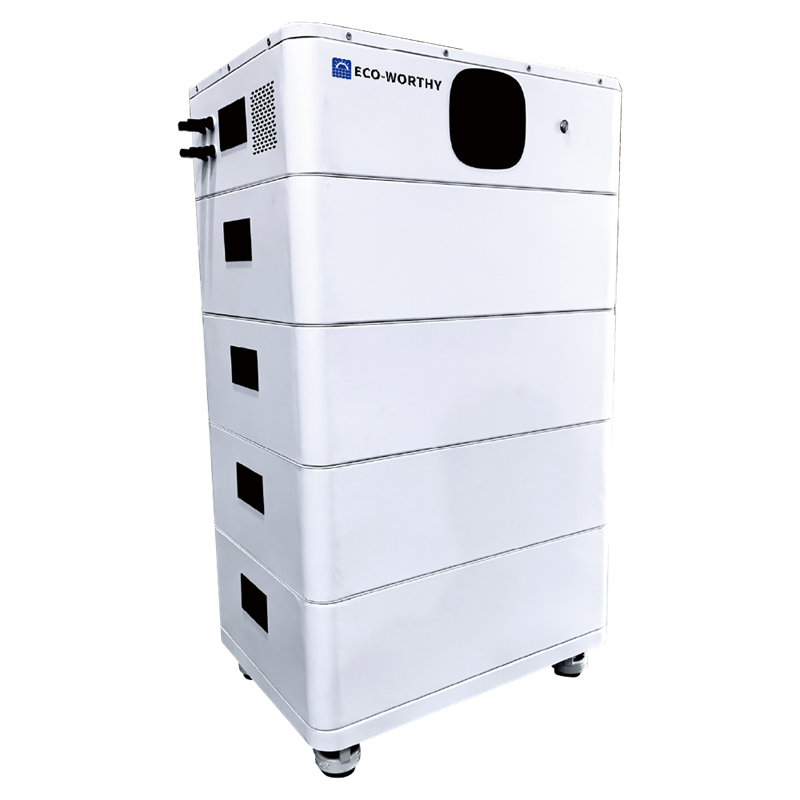

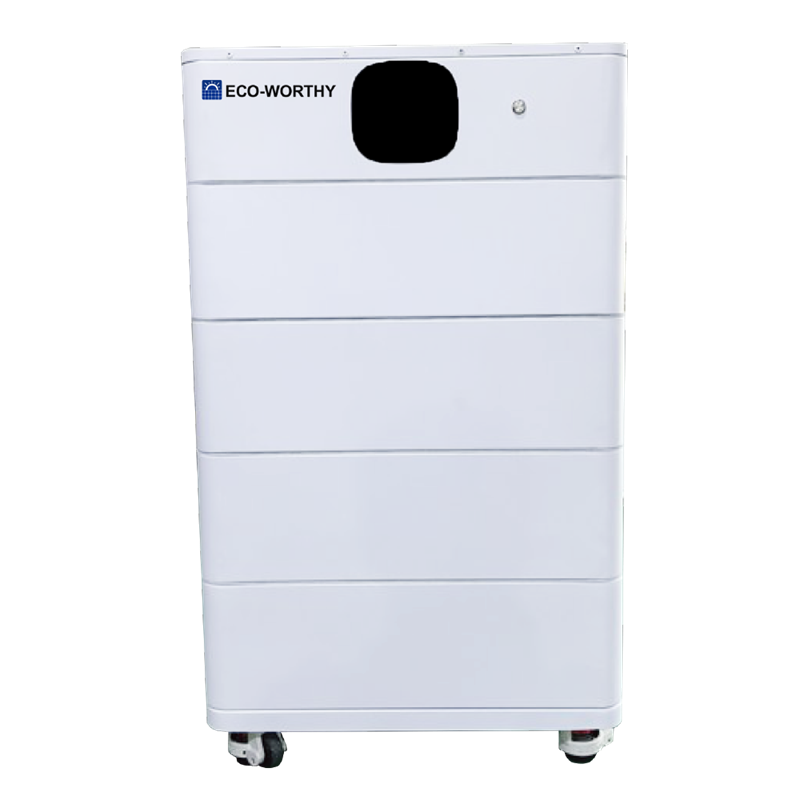

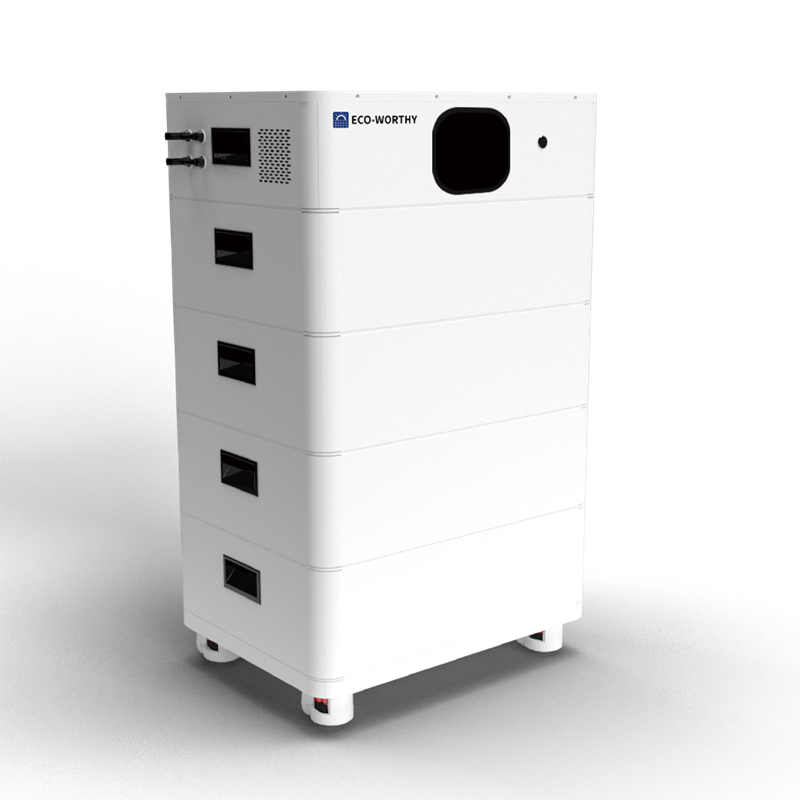

All-in-one stacking design, no need to purchase an additional inverter.
Inverter Parallel Supportable
Parallel support up to 6 units-30kw Max. It can be single phase or split phase parallel.
Segmented Charing/Discharging
3 output modes: mains priority and, battery priority, PV priority; uninterrupted power supply.
Available in 4 charging modes
Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
BMS Protection
Overcharge/Over-discharge Protection, Charge/Discharge Over-current Protection, Short-Circuit Protection, Battery Voltage Self-Balancing, High and Low Discharge Cut-off.
Long life span
Can be recycled up to 6000 times, life span up to 10 years.
Capacity expansion
Up to 8 units Battery in parallel, expandable to 40.96kWH.
|
Mechanical |
|
|
Inverter and one Battery |
|
|
Length |
23.62 in / 600 mm |
|
Width |
17.72 in / 450 mm |
|
Height |
17.52 in / 445 mm |
|
Weight |
116.8lbs / 53kg |
|
Weight |
132.28 lbs / 60kg |
|
One Battery |
|
|
Length |
23.62 in / 600 mm |
|
Width |
17.72 in / 450 mm |
|
Height |
8.52 in / 216.5mm |
|
Weight |
110.23 lbs / 50kg |
|
Terminals |
M8 insert |
| 5KW Energy Storage System | |||
| Solar Hybrid Inverter ModelSpecification | Battery Model Specification | ||
| Parall Moele | Nominal Vollage | 51.2V | |
| Max paralel number (Single or Spit Phase) | 6 PCs | Raled Capaiy | 100Ah |
| Invert Modea | Absoptionvolage Float Volage | 56.8 to 58.4 V | |
| Output Volage Wavefom | Pure Sin Wave | Equalize Volage (fappicable) | 56.0 o 56.8V 56.8to58.4V |
| Raled utput Power | 500W | Absorption Time | (same as absorption) 60 to 120 minules |
| Rated Outpt Vilage | 120VAC | Temperature Compensafon | No |
| Raled Batery Input Volage | Charge Cut-offVllage | 58.4V | |
| 48V | Discharge Cu-ffVllage | 40V | |
| Min Starting Voltage | 44V | Recommended Charge Curent | 50A |
| Bypass Breaker | 63A | Recommended Discharge Curent | 50A |
| Peak Power | 1000V >92% | Maximum Contnuous Charge Current | 100A |
| Maxmum Efficency | Maximum Continuous Discharge Curent | 100A | |
| AC Charging Mode | Peak Discharge Curren | 120A | |
| Rated hnput Vollage | 110/120VAC | Eluetooh conmecfion | Optional |
| Max Charge Curent | 60A | Self eating | No |
| Eficiency | >95% | IP Standard Commuricalion | IP30 |
| PV Charging Mode | Swich | CAN/RS485/RS232 Yes | |
| Max Input Power | 500W | BMS Prolecfon | Charging Overcurrent Short circuit |
| Max Charge Curent | 80A | Intemal Resistance | HighLoot enperaure ≤30mα |
| MPPT Village Range | 120-450VDC | BMS Leakage Curent | s3mA |
| MPPT Max Tracling Efcency | >99% | Operaing Temperature Charge | 32"F(0°C) to 131°F (55*C) |
| General Data | Operaing Tmperature Discharge | 4"F(-20'C) 1o 1“F(5*) | |
| Noisea | S60dB | Sorage Temperature 1 week | -4(-20°C) to 149F (65C) |
| Commuricafon | USB/RS485/Dry contact conrol | Sorage Temperature 1 month | -4"F (20"C) t 113"F(40*C) |
| Operaing emperaurerange | -10 *C to 55 *℃ | Slorage Temperabure 1 year | -4F (-20"C) o 77*F(25*C) |
| Max mibed dharging aument | 100A | Humidiy Operaing | 5% 0 90% RH |
| Humidity Storage | 35% to 85% RH | ||
