High-Voltage Efficiency
The 48V (51.2V) system is optimized for compatibility with most modern solar inverters and hybrid systems, ensuring higher efficiency, reduced energy loss, and more powerful performance for demanding applications.
Exceptional Longevity with A-Grade Cells
Engineered with premium A-Grade LiFePO4 cells, this battery delivers an ultra-long service life of over 6,000 cycles at 80% Depth of Discharge and a lifespan of up to 20 years, guaranteeing reliable power for the long term.
Massive Scalable Capacity
Achieve immense energy independence by connecting up to 15 units in parallel, allowing you to expand your system from a single 10.24kWh battery to a massive 153.6kWh of total storage capacity.
Smart Remote Monitoring & Control
Seamlessly connect via WiFi or Bluetooth to a dedicated mobile app. Monitor real-time performance, customize settings, and receive instant alerts from anywhere, putting full control in the palm of your hand.
Advanced Battery Management System (BMS)
Equipped with a comprehensive BMS that provides robust protection against overcharge, over-discharge, overcurrent, short circuits, and extreme temperatures. Integrated cell balancing ensures optimal performance and safety.

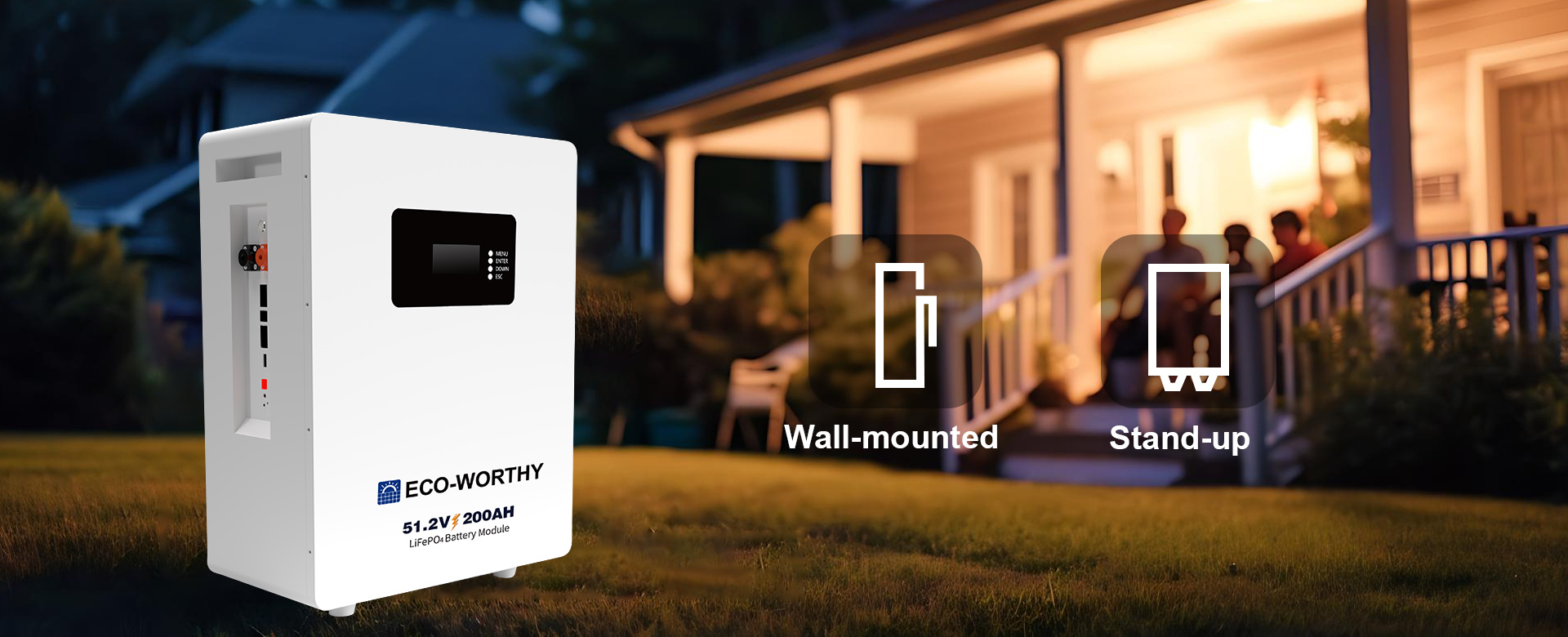

Space-Saving Wall-Mount Design
The sleek, wall-mountable enclosure saves valuable floor space, enabling flexible installation in homes, offices, workshops, and telecom shelters.
Wide Operating Temperature Range
Built to perform reliably in a broad range of climates, ensuring stable operation in both high and low-temperature environments.
| Lithium lron Phosphate (LiFePO4) | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 200AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorption Voltage | 58.4V Any cll votage 3.45V |
| BMS Balancing Voltage | Max Voltage diffence between cells>30mV In Charging |
| Equalize Voltage | Not appicable |
| Float Voltage * | Not appicable |
| Temperature Compensation | No/Disable |
| Charge Cut-offVoltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Recommended Charge Current | 100A |
| Recommended Discharge Current | 100A |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Current | 210A/1s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP30 |
| BMS Prote ction | ·Over and Low voltage ·Charge and Discharge Over current · Short circut. |
| Internal Resistance | · Hih and Low temperature |
| BMS Leakage Current | ≤30mΩ |
| Charge Temperature Range | ≤10mA 32°F (0°C) to 131°F (55°C) |
| Discharge Temperature Range | -4°F (-20°C) to 1319F (55°C) |
| Storage Temperature 1 week | -4(-20°C) to 149°F (65°℃) |
| Storage Temperature 1 month | -4°F (-20°C) to 113F(40°) |
| Storage Temperature 1year | -4°F (-20°C) to 77°F (25*℃C) |
| Humidity Operating: Humidity Storage: | 5% to 90 % RH 35% to 85% RH |
| Certifiations MSDS; UN38.3; CE; PSE | |
| Cycle Life 6000 cycles | |
