Unmatched Safety with Advanced BMS
Comprehensive Protection Suite: Our advanced BMS safeguards your investment with robust protection against overcharge, over-discharge, over-current, and short-circuits.
Built-in Balance & Cut-off: Features automatic cell balancing for optimal performance and high/low-temperature cut-off for enhanced safety in any environment.
Built-in Balance & Cut-off: Features automatic cell balancing for optimal performance and high/low-temperature cut-off for enhanced safety in any environment.
A Lifetime Investment with Extreme Longevity
6,000+ Deep Cycles: Confidently power your life for years to come. This battery is rated for over 6000 cycles, translating to a service life of up to 20 years.
Maximize Your ROI: The exceptional cycle life ensures low cost-per-cycle, making it the most economical and reliable choice for long-term energy storage.
Maximize Your ROI: The exceptional cycle life ensures low cost-per-cycle, making it the most economical and reliable choice for long-term energy storage.

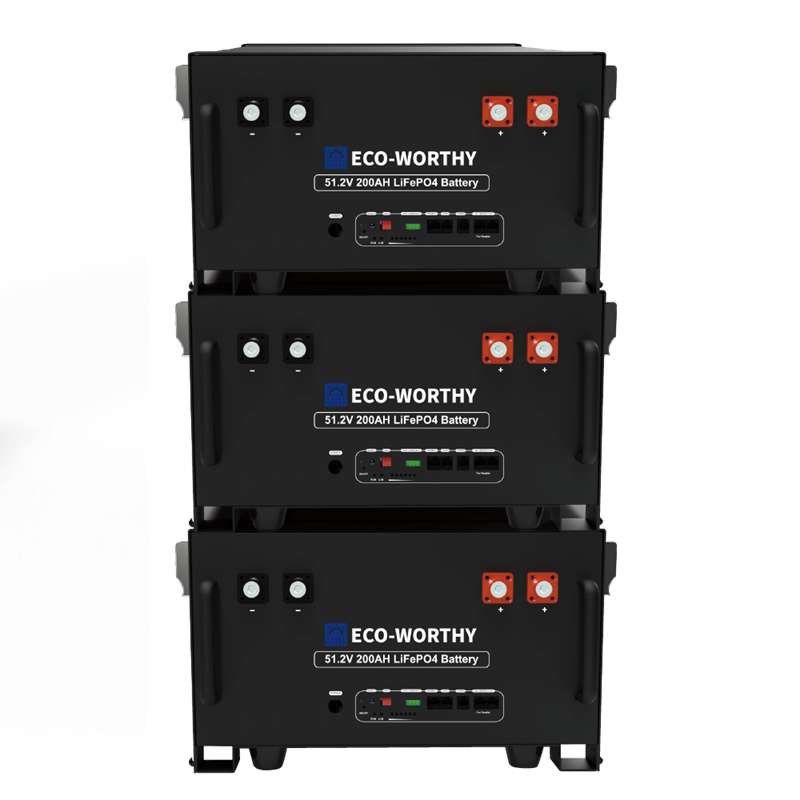

Effortless Scalability & Plug-and-Play Expansion
Build Your Power Bank: Start with one and expand your capacity on demand. Seamlessly connect up to 15 units in parallel for a massive 153.6kWh of total energy.
True Stackable Design: The integrated stud structure allows for secure, vertical stacking without bulky external racks, saving significant space.
True Stackable Design: The integrated stud structure allows for secure, vertical stacking without bulky external racks, saving significant space.
Universal Compatibility & Smart Connectivity
Works with Your System: Pre-configured with multiple communication protocols (CAN/RS485), ensuring seamless integration with a wide range of popular solar inverters.
Real-Time Monitoring at Your Fingertips: Use the intuitive mobile app (via Bluetooth & WiFi) to check vital stats like state of charge, health, and power flow in real-time, from anywhere.
Real-Time Monitoring at Your Fingertips: Use the intuitive mobile app (via Bluetooth & WiFi) to check vital stats like state of charge, health, and power flow in real-time, from anywhere.
Engineered for Easy & Secure Installation
One-Person Installation: Weighing a manageable 105 lbs and featuring a user-friendly stud connection system, setup is quick, simple, and requires no special tools or brackets.
Dual Terminal Design: Dual positive and negative terminals provide more connection options, improving conductivity, simplifying wiring in parallel setups, and enhancing overall system safety.
Dual Terminal Design: Dual positive and negative terminals provide more connection options, improving conductivity, simplifying wiring in parallel setups, and enhancing overall system safety.
| Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 51.2 |
| Rated Capacity | 200AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorpton Voltage | 58.4V Any celvoltage ≥3.45V |
| BMS Balancing Voltage | Max Voltage differencebetween cels>30m In Charging |
| Equalize Voltage | Not aplcablel |
| Float Voltage* | Not appicable |
| Temperature Compensation | No/Disable |
| Charge Cut-offVoltage | 58.4V |
| Discharge Cut-ofVoltage | 40V |
| Recommended Charge Current | 100A |
| Recommended Discharge Current | 100A |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Disharge Current | 200A |
| Peak Current | 210A/1s |
| WiFi | Yes |
| elutooth | Yes |
| Communication | CAN/RS485/RS232 |
| SelfHeating | No |
| Protection Rating | IP30 · Over and Low voltage |
| BMS Protection | ·Charge and Disharge Overcurrent · Short ciruitl |
| Internal Resistance | Hig and Low temperatre s30mΩ |
| BMS Lealkage Current | ≤10mA |
| Charge Temperature Range | 32*F (0°9 t 131*F (55*c) |
| Discharge Temperature Range | -4”F(-20°C) to 131*F (55*C) |
| Storage Temperature 1 week | -4(-20°9 to 149*F(65*C) |
| Storage Temperature 1 month | -4"F(-20°g t0 113F(40*c) |
| Storage Temperature 1 year | -4"F (-20*g to 77"F (25*c) |
| Humidity O perating: | 5% to 90 % RH |
| Humidity Stora ge: | 35% to 85% RH |
| Certifcations: MSDS; UN38.3; CE; PSE | |
| Cycle Life | 6000 cycles |
