Modular and flexible
Modular and flexible, support up to 15 batteries connect together to expand the system energy.
Build-in pre-charge
Build-in pre-charge circuit to avoid rush current when connecting with different inverter/chargers.
Automatic dynamic
Automatic dynamic addressing function when connected multiple batteries together.
Rapid shut down function
Rapid shut down function for North American market.
DOD
Support a maximum of 96% DOD under off-grid and back-up application
BMS
Built in BMS provide warning and protection functions including over-discharged, over-charged over-current, short-circuit andhigh/low temperature.
LiFePO4
LiFePO4 as cathode material and automatic balancing function tomeet long cycle life

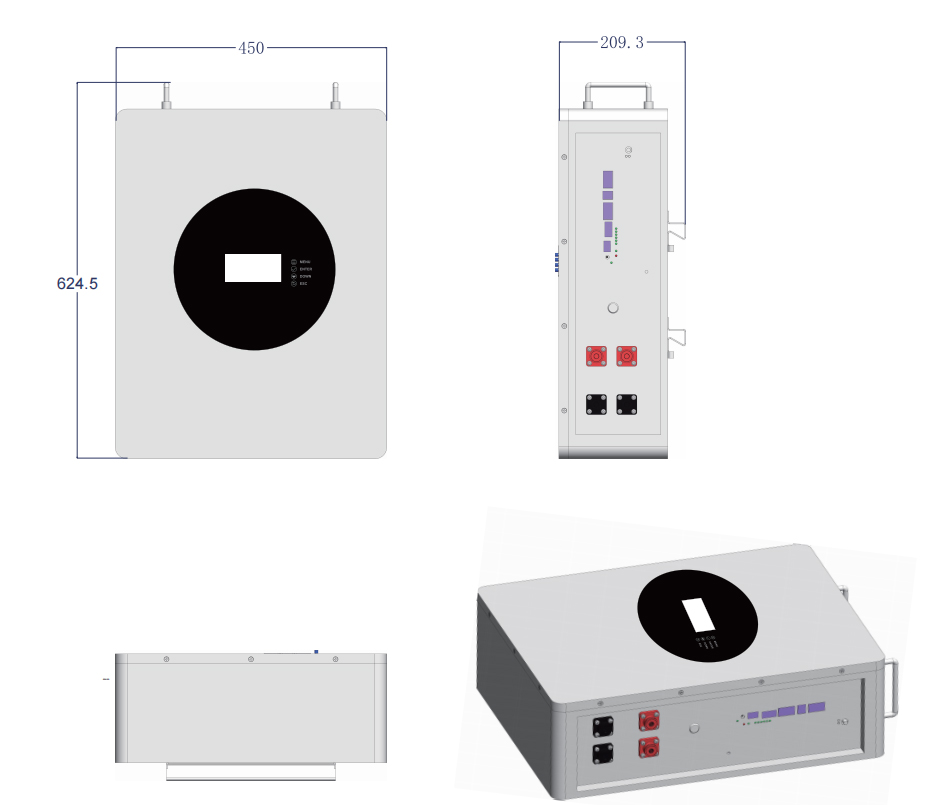

Compact size
Compact size and light weight for easy installation and maintenance.

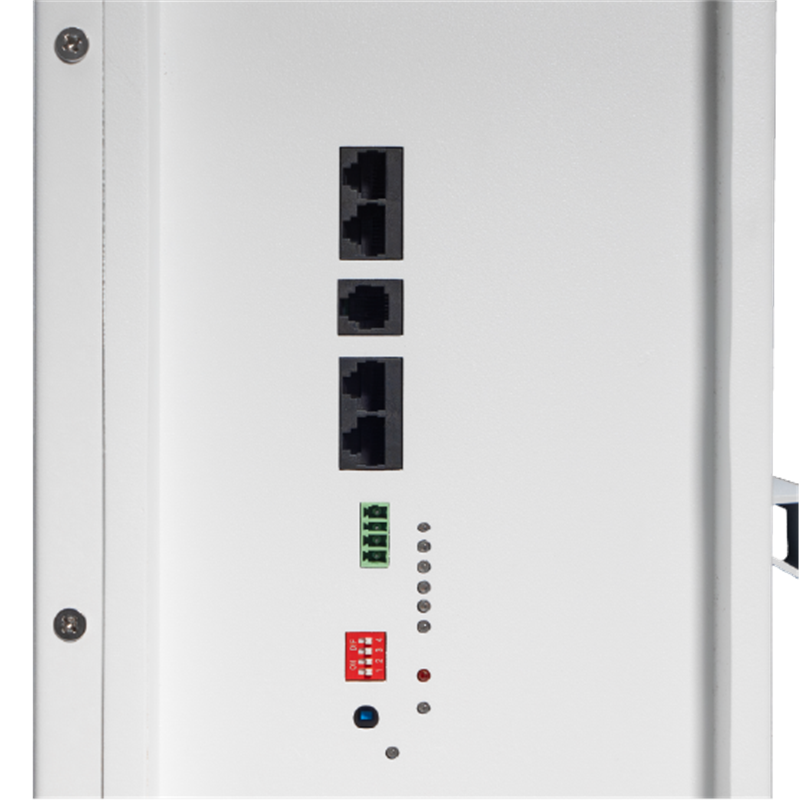

CAN/RS485 port
CAN/RS485 port for external communication and upgrade the BMS firmware.
|
Items |

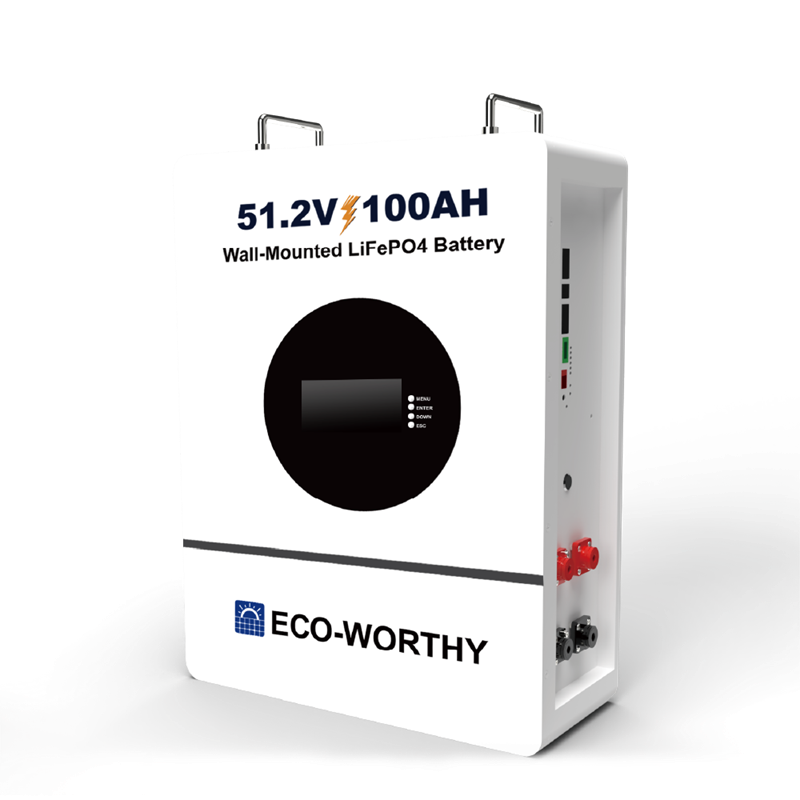

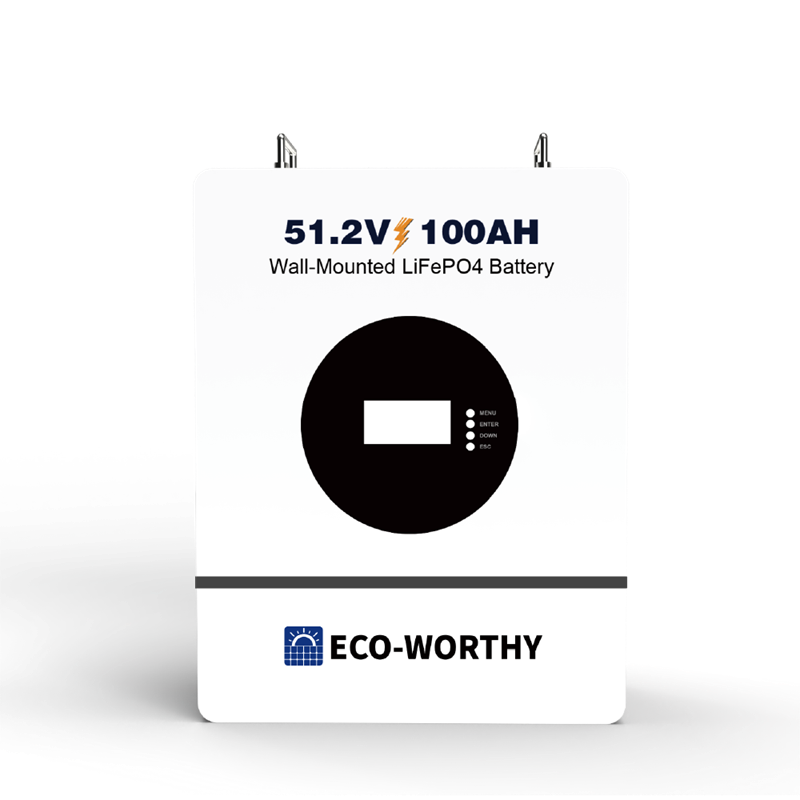

48v 100ah Wall-mounted Battery |
|
Rated voltage |
51.2v |
|
Max. voltage range |
40~58.4V |
|
Charge voltage |
58.4V |
|
Low voltage cut-off |
40.0V |
|
Nominal energy |
5.12KWh |
|
Usable energy |
5.12KWh |
|
Nominal capacity |
100Ah |
| 48V 100AH Wall-mounted LiFePO4 Battery | |
| Nominal Voltage | 51.2V |
| Rated Capacity | 100AH |
| Charge Method | CC/CV |
| Charge Voltage | 58.4V |
| Bulk/Absorption Voltage | 58.4V |
| BMS Balancing Voltage | Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging |
| Equalize Voltage | Not applicable |
| Float Voltage * | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Current | 120A/2s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP20 |
| BMS Protection | • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature |
| Internal Resistance | ≤30mΩ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C) to 131°F (55°C) |
| Discharge Temperature Range | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature 1 week | -4(-20°C) to 149°F (65°C) |
| Storage Temperature 1 month | -4°F (-20°C) to 113°F(40°C) |
| Storage Temperature 1 year | -4°F (-20°C) to 77°F (25°C) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Storage: | 35% to 85% RH |
| Certifications: MSDS; UN38.3; CE; PSE | |
| Cycle Life | 6000 cycles |
| Max connected in Parallel 15 units | Max connected in Series 1 units |
