Exceptional Cycle Life
Utilizes top-tier A-Grade LiFePO4 cells, delivering an ultra-long service life of over 6,000 cycles (at 80% DoD), offering a far superior return on investment compared to conventional batteries.
Premium Cell Quality
Built with A-Grade Lithium Iron Phosphate cells, ensuring superior consistency, stability, and inherent safety from the source.
Robust Discharge Performance
Capable of high 1C continuous discharge current (200A), easily powering high-wattage appliances and handling startup surge currents.
Intelligent Battery Management
Features an advanced built-in BMS, providing comprehensive protection against overcharge, over-discharge, overcurrent, short circuits, and extreme temperatures, alongside cell balancing for enhanced safety and longevity.

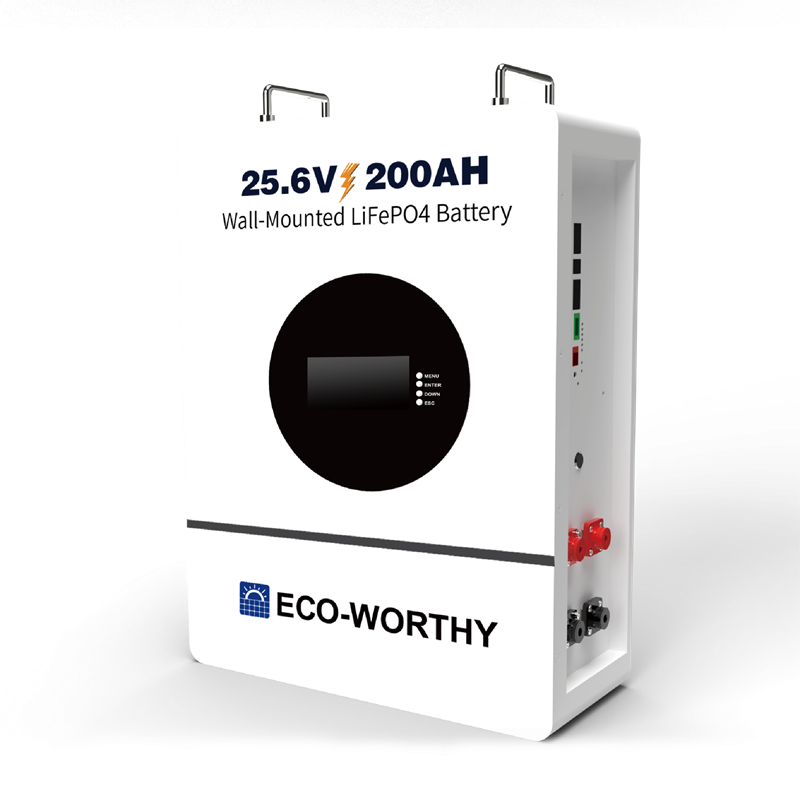

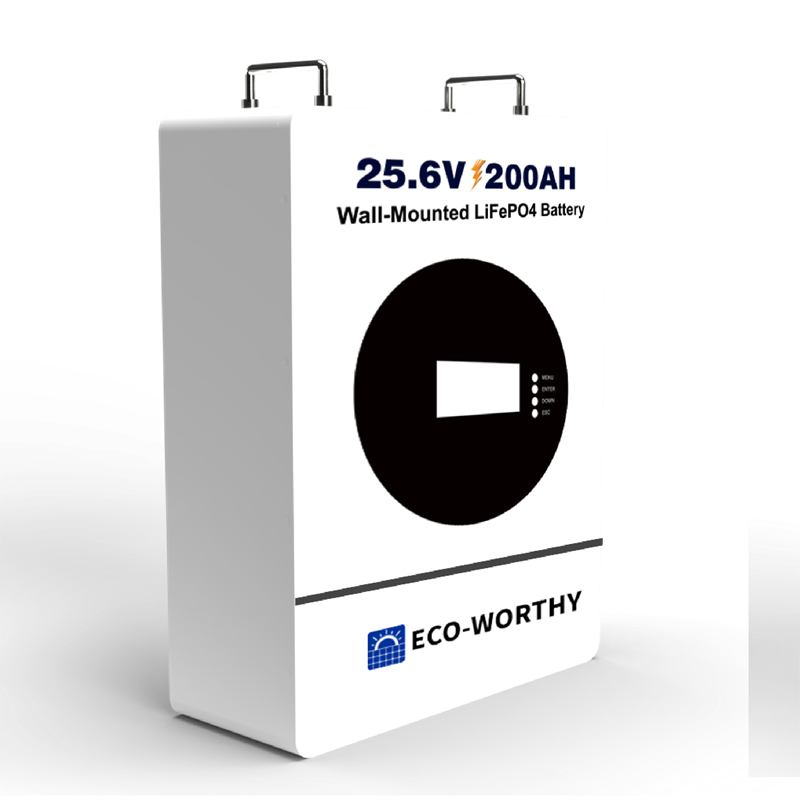

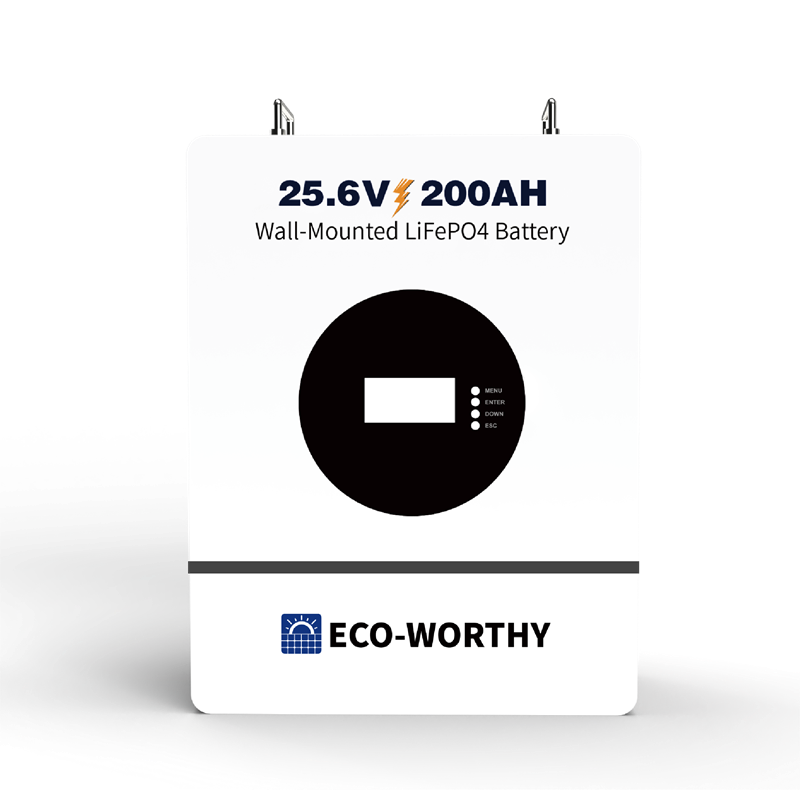

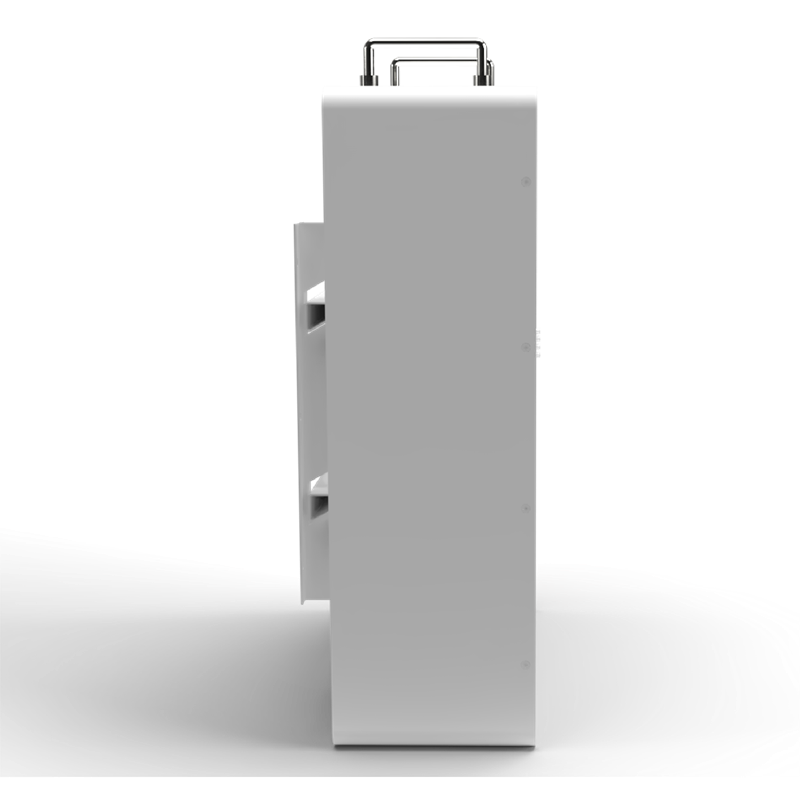

Space-Saving Wall-Mount Design
The innovative wall-mountable form factor saves valuable floor space, making it ideal for various settings like homes, shops, and utility rooms.
Modular & Scalable
Supports parallel connection of multiple units, allowing you to flexibly expand your total energy capacity to meet growing needs for a seamless upgrade path.
Broad Operating Temperature Range
Reliable performance across a wide temperature spectrum, ensuring stable operation in challenging environments.
Real-Time Status Monitoring
Check key battery parameters easily via an LCD display or a dedicated mobile app for convenient, remote management and peace of mind.
| Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 25.6V |
| Rated Capacity | 200Ah |
| Charge Method | CC/CV |
| Charge Voltage | 29.2V |
| Bulk/Absorption Voltage | 29.2V |
| BMS Balancing Voltage | Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging |
| Equalize Voltage | Not applicable |
| Float Voltage | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Recommended Charge Current | 100A |
| Recommended Discharge Current | 100A |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Discharge Current | 200A |
| Peak Current | 210A/1s |
| WiFi | Yes |
| Bluetooth | Yes |
| Communication | CAN/RS485/RS232 |
| Self Heating | No |
| Protection Rating | IP30 |
| BMS Protection | · Over and Low voltage · Charge and Discharge Over current · Short circuit · High and Low temperature |
| Internal Resistance | ≤15mQ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C)to 131°F (55℃) |
| Discharge Temperature Range | -4°F (-20℃C)to 131°F (55°C) |
| Storage Temperature 1 week | -4(-20°C) to 149F (65C) |
| Storage Temperature 1 month | -4°F (-20℃C)to 113F(40°C) |
| Storage Temperature 1 year | -4°F (-20°C) to 77F (25°℃) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Storage: | 35% to 85% RH |
| Certifications: MSDS; UN38.3; CE; PSE | |
| Cycle Life | 6000 cycles |
