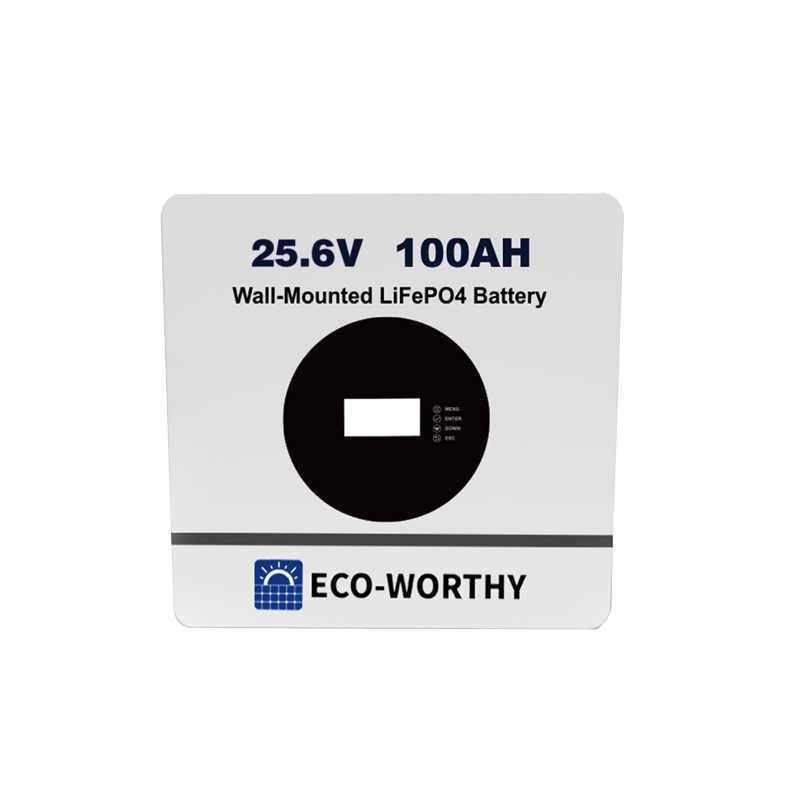

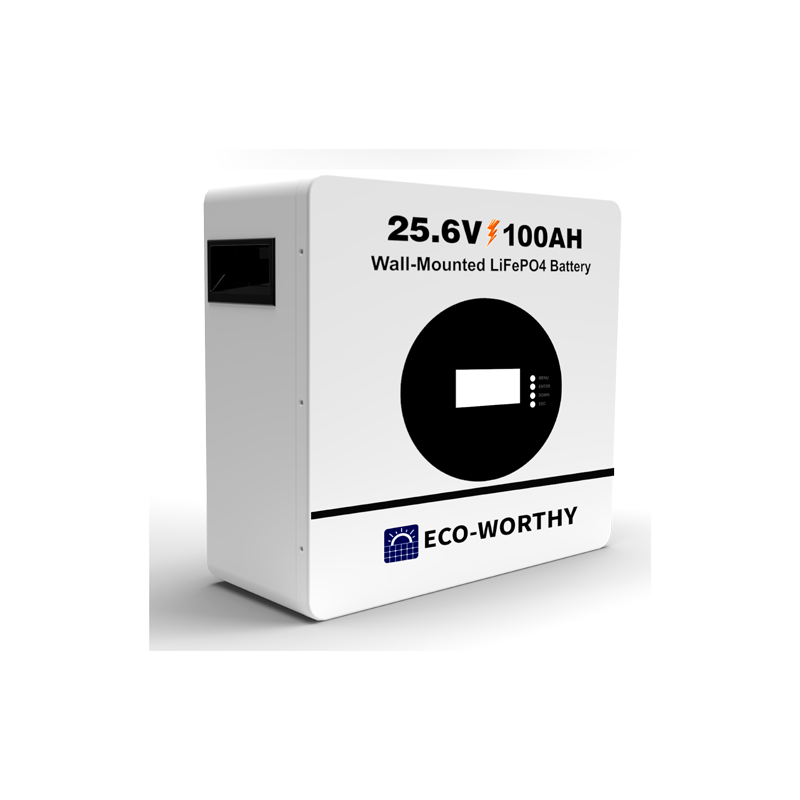

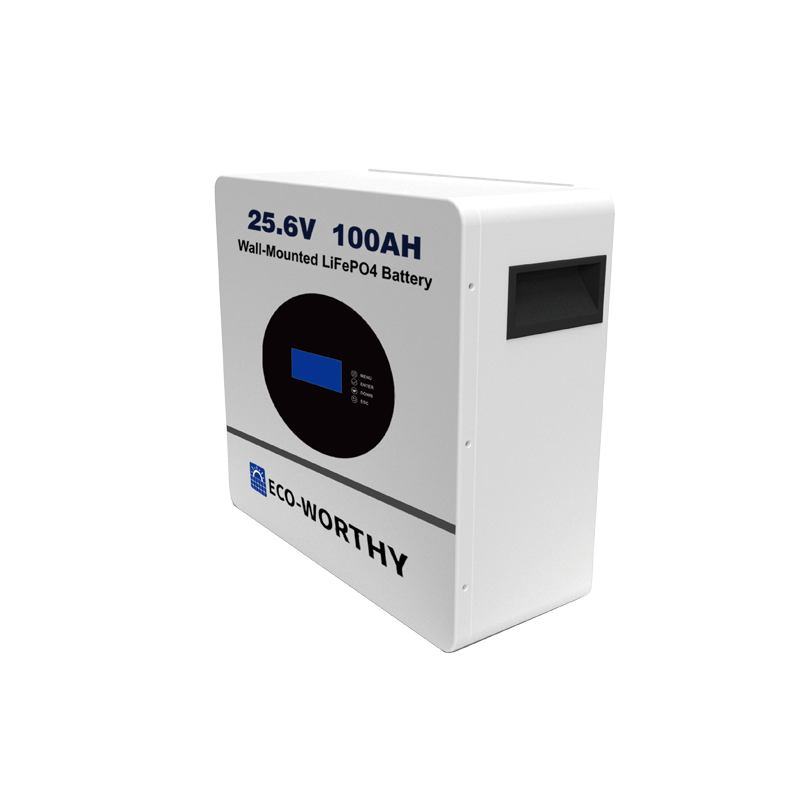

    24v 100ah Wall-Mounted Battery

    Engineered with Grade-A LiFePO4 cells, this battery boasts over 6000 life cycles. It suits various applications like solar battery banks, home battery backups, residential solar setups, RV, camping, marine, and emergency power systems.

    PLEASE NOTE
    Lithium batteries ship under Class 9 Dangerous Goods PI965 Section IA.Please contact your carrier company to determine their requirements for shipping.MSDS Sheets are available upon request.
    Float charging is not applicable to lithium iron phosphate batteries,long-tem float charging will accelerate battery aging or damage.If you have to set the float voltage for MPPT/PWM charge controller in solar system,we suggest to set it to (12V Battery)13.2V-13.6V,(24V Battery)26.4V-27.2V,(36V Battery)39.6V-40.8V,(48V Battery)52.8V-54.4V.

      • certification (7)
      • certification (3)
      • certification (5)
      • certification (4)
      • certification (1)
      • certification (6)
      Contact us
      product details
      specification
      download

      Features

      BMS Protection

      Overcharge/ Over-discharge Protection, Charge/ Discharge, Over-current Protection, Short-Circuit Protection, Battery Voltage Self-Balancing, High and Low Discharge Cut-off.

      Long Lifespan

      Can be cycled up to 6000 times, with a lifespan of up to 20 years.

      Multi-Brand Compatibility

      Compatible with multiple inverter protocols from various brands, supports CAN/RS485 for seamless communication with popular solar inverters.

      More secure and efficient

      Each battery has two pairs terminals for positive and negative poles, allow more connections to improve the conductive efficiency and safety.

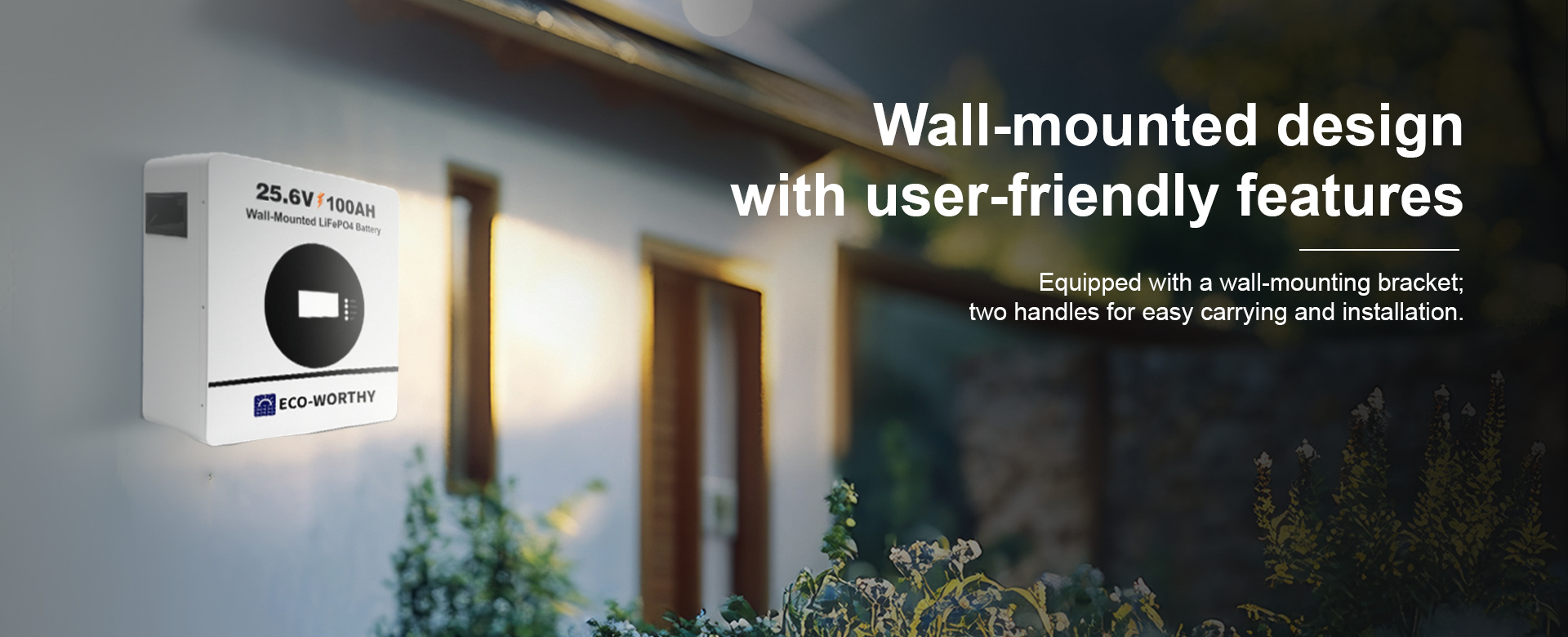

      Wall-mounted and Humanized design

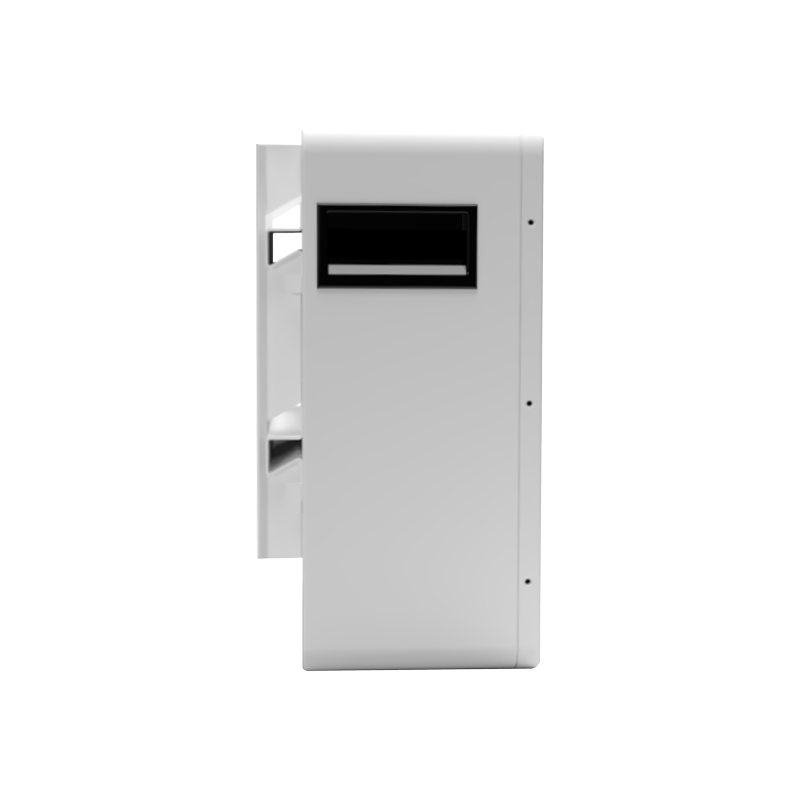

      Equipped with Bracket for mounting on the wall; Two handles for easy handling and installation.

      Capacity Expansion

      Up to 15 units can be connected in parallel, expandable to 38.4kWh.

      Key Features & Benefits

      Total Peace of Mind with Advanced Protection

      Safety is non-negotiable. Our sophisticated Battery Management System acts as a vigilant guardian, providing 5-layer protection against all common threats like overcharging and short-circuits. It continuously balances the cells to ensure every charge cycle is efficient and every discharge is safe, dramatically extending the battery's service life.

      Built to Last: Your Power Partner for 20 Years

      Invest in a battery that truly lasts. Utilizing top-tier Grade-A LiFePO4 cells, it is capable of over 6000 deep discharge cycles with minimal capacity degradation. This translates to nearly two decades of reliable, daily power, reducing your long-term costs and environmental footprint.

      Seamless Integration with Your System

      Enjoy a hassle-free setup. With multi-protocol support via CAN and RS485 communication ports, this battery is designed to be plug-and-play compatible with a vast array of popular solar inverters. This ensures seamless communication and optimized performance right out of the box.

      Dual-Terminal Design for Superior Power Flow

      Demand more robust and safer connections. The dual-terminal design allows for better current distribution, reducing resistance and heat buildup. This results in higher efficiency, improved safety, and the flexibility for more complex wiring configurations.

      Smart, Space-Saving Wall-Mount Solution

      Reclaim your floor space. The innovative wall-mounted design allows you to install the battery securely on any sturdy wall, keeping it away from moisture and dirt. Integrated handles make lifting and positioning safe and straightforward, while the included bracket ensures a rock-solid installation.

      Grow Your Energy System with Ease

      Your energy needs will evolve, and so can your system. Start with a single unit and expand your capacity effortlessly by connecting up to 15 batteries in parallel, creating a massive 38.4kWh energy reserve. This modularity makes it the perfect foundation for any project, big or small.
      product description01
      product description02
      product description03
      48V 100Ah LiFePO4 Battery (GC P)03
      product description05
      product description08
      24V 100Ah Wall-mounted Lithium Iron Phosphate (LiFePO4)
      Nominal Voltage 25.6V
      Ra ted Capacity 100Ah
      Charge Method CCV
      Charge Voltage 292V
      Bul/Absorpton votage 29.2V Ary el otag3v
      BMS alancing votage Max Vltagedifrenebeweenels3 In Charging
      Equalize votage Not appiable
      Flat otage* Not appicable
      Temperature Compensaton No/Disable
      Charg CutoffVotaege 292V
      Discharge Ct-fvotage 20V
      Recommended Charge Current 50A
      Recommended Discharge Current 50A
      Maximum Continuous Charge Current 100A
      Maximum Continuous Discharge Current 100A
      Pealk urent 120A(13)
      wiri No
      Bluetoth No
      Communication CAN/RS.485/RS232
      Sef ea ing N
      Protetion ating IP30
      BMS Protection · Over and Low voltage Chargeand DichargeOverurret · Short circuit Highand lo tempeatuel
      Charge Temperature Range 32F (0°℃) to 131*F (55°℃)
      Discharge Temperature Range -4"F(-20°C)to 131'F (55°℃)
      Storage Temperature 1week -4(-20°C) to 149°F (65°℃)
      Storage Temperature 1 month -4"F(-20°C)to 113"F(40°℃)
      Storage Temperature 1 year -4*F -20°0 t 77 25*0)
      Humidity Op era ting: 5% to 90% RH
      HumidityStorage: 35% o 85% RH
      Certifications: MSDS; UN38.3; CE; PSE
