Superior Performance
Our 24V 100Ah lithium battery eliminates the need for complex series connections—unlike using two 12V 100Ah batteries. Enjoy a compact, lightweight design, easier installation, and consistent performance without worrying about battery matching or additional wiring
Compact & Lightweight
Measuring just 14.4 x 7.4 x 10.7 inches and weighing only 44.1 lbs, this 24V lifepo4 battery is one-third lighter than lead-acid batteries. Its compact design and high capacity make it a smart choice for energy expansion without taking up extra space
Low-Temperature Protection

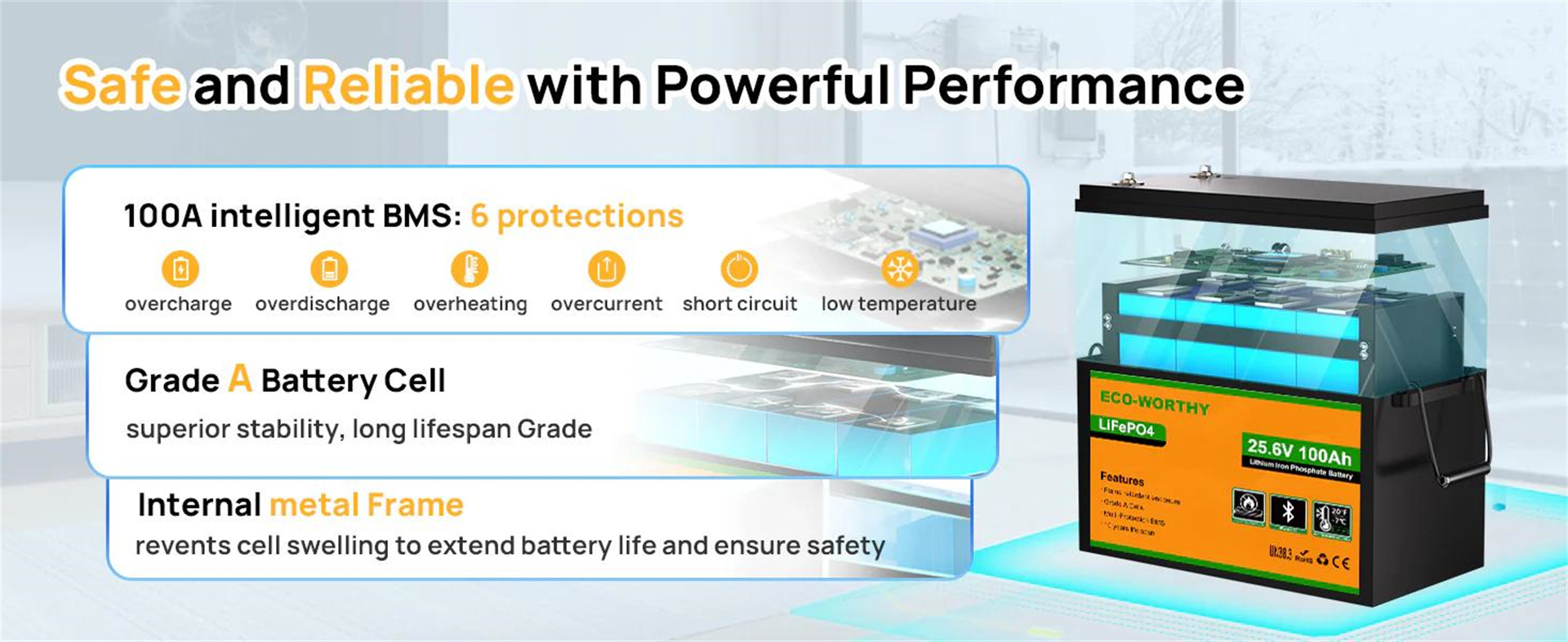

Built-in 100A BMS protects against overcharge, over-discharge, overheating, overcurrent, short circuits, and low-temperature conditions. With advanced low-temperature protection, this battery ensures reliable performance even in cold weather, making it perfect for year-round fishing
Expandable to 20.48kWh
With a maximum configuration of 4P2S, this 24V battery can be expanded into a 51.2V 400Ah LiFePO4 battery bank, storing up to 20.48kWh of energy. Ideal for home energy storage, it ensures reliable and long-lasting power for your solar system
Versatile for Multiple Applications
This stable and reliable LiFePO4 battery is perfect for a wide range of uses, including RVs, campers, trolling motors, marine applications, golf carts, solar systems, and emergency backup power
| Battery Capacity: 100Ah | Battery Power: 2560Wh |
| Battery Voltage: 25.6V | Maximum Charging Current: 100±5A |
| Maximum Discharging Current: 100±5A | Max Charge Voltage: 29.2V |
| Operating Temperature: -4°F to 131°F | BMS: Integrated battery management system |
| Terminal: M8 screw | Size: 14.4*7.4*10.7inch |
| Lithium Iron Phosphate (LiFePO4) | |
| Nominal Voltage | 25.6V |
| Rated Capacity | 100Ah |
| Charge Method | CC/CV |
| Charge Voltage | 29.2V |
| Bulk/Absorption Voltage | 29.2V |
| Equalize Voltage | Not applicable |
| Float Voltage * | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 29.2V |
| Discharge Cut-off Voltage | 20V |
| Recommended Charge Current | 50A |
| Recommended Discharge Current | 50A |
| Maximum Continuous Charge Current | 100A |
| Maximum Continuous Discharge Current | 100A |
| Peak Current | 500A(10s) |
| WiFi | No |
| Bluetooth | Yes |
| Communication Self Heating | No |
| Protection Rating | No IP65 |
| BMS Protection | · Over and Low voltage |
| · Charge and Discharge Over current · Short circuit | |
| · High and Low temperature | |
| Internal Resistance | ≤15mΩ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C) to 131°F (55°℃C) |
| Discharge Temperature Range | -4°F (-20°C)to 131°F (55℃) |
| Storage Temperature 1 week | -4(-20℃C) to 149F (65C) |
| Storage Temperature 1 month | -4°F (-20°C) to 113°F(40°C) |
| Storage Temperature 1 year Humidity Operating: | -4°F (-20°C) to 77F (25°℃C) 5% to 90 % RH |
