2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit

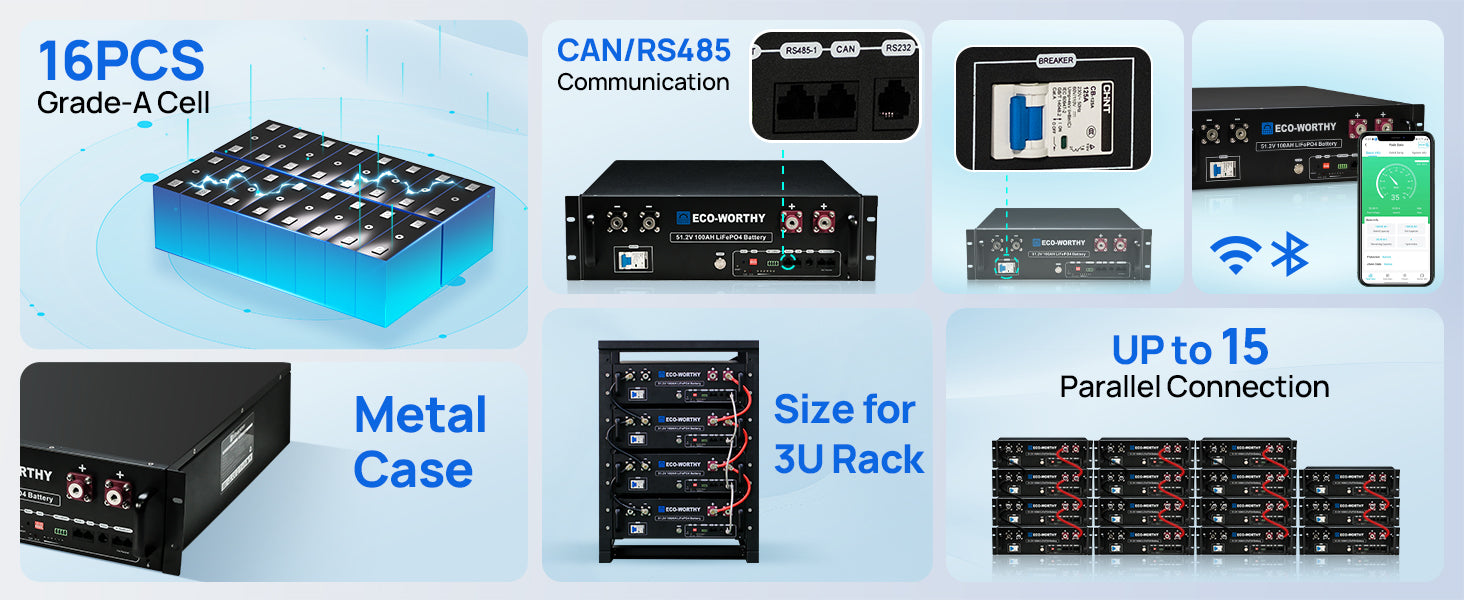

10-Year Warranty: Powered by premium Grade A cells, this battery offers exceptional consistency and long-lasting performance. Dual protection of circuit breaker and shunt type disconnector ensures disconnection even if the BMS fails.Backed by a 10-year after-sales support, you can trust in the quality and reliability of this battery for years to come
Smart Monitoring: Supports CAN/RS485 for seamless communication with popular all-in-one solar inverters.You can easily monitor your battery’s status through the mobile app, which supports both Bluetooth and WiFi connections. Stay informed on your battery’s health and performance in real-time
Parallel Supportable:5000W Solar Off-grid Inverter Parallel support up to 6 units-30kw Max. It can be single phase or separate phase parallel.The output voltage of one inverter is 120v, and more than two inverters can output 120v/208v/240v in parallel. (Two units MINIMUM have to be in parallel to achieve 220V power.)
195W solar panels: 195W Monocrystalline solar panels are used on off-grid situations that include RV, boat,sailboat, yacht,truck, cabin, camper ,tent , trailer, golf cart,Diodes are pre-installed in junction box, with a pair of pre-attached 2.79ft Cable

    • certification (7)
    • certification (3)
    • certification (5)
    • certification (4)
    • certification (1)
    • certification (6)

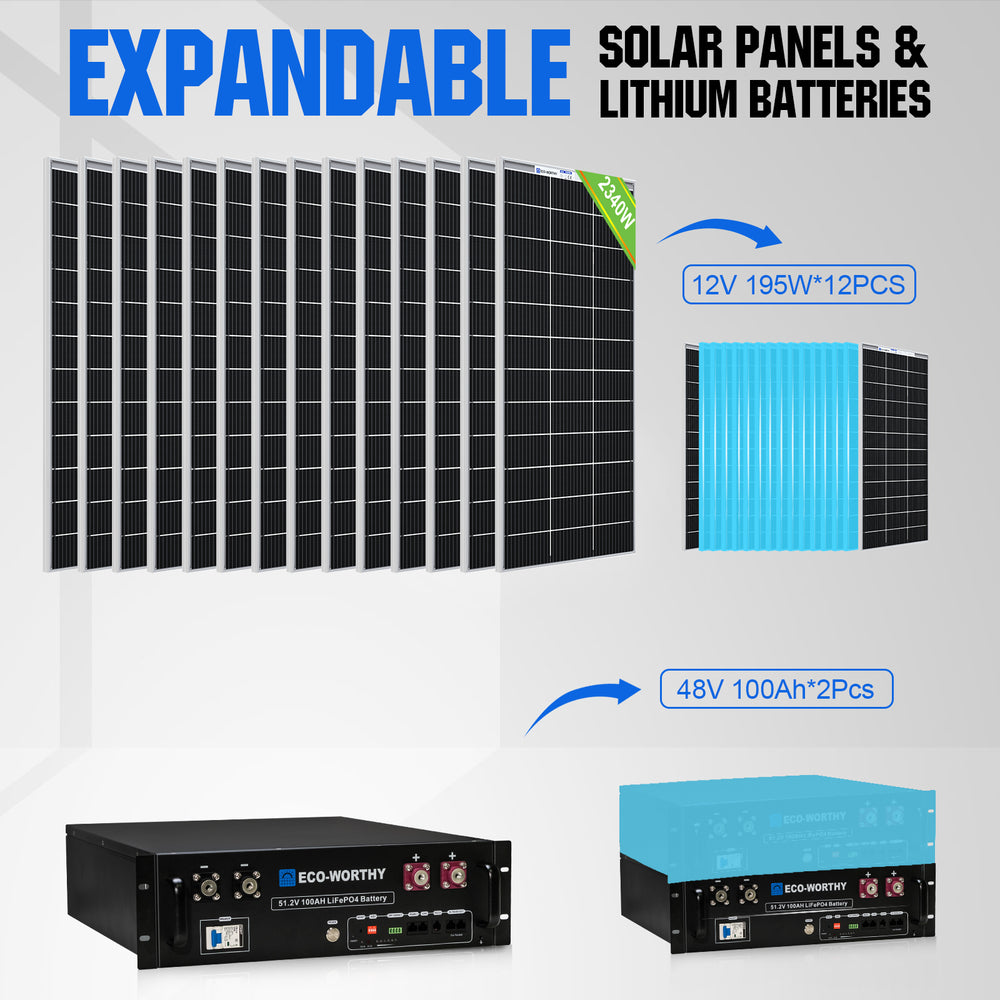

    If efficiency, reliability and affordable are high on your wish list, ECO-WORTHY 2340W 48V expandable MPPT Solar Kit is an ideal choice.
    ECO-WORTHY 195 Watt 12V Mono solar panel is backed by 25-year linear power guarantee. ECO-WORTHY LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
    All in one inverter Integrated with 80A/48V MPPT solar charge controller, 5000W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
    ECO-WORTHY 2340W 48V MPPT Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@eco-worthy.com.
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (5)
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (4)
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (3)
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (2)
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (1)
    2340W 48V (12x195W) Complete MPPT Off Grid Solar Kit detail (6)

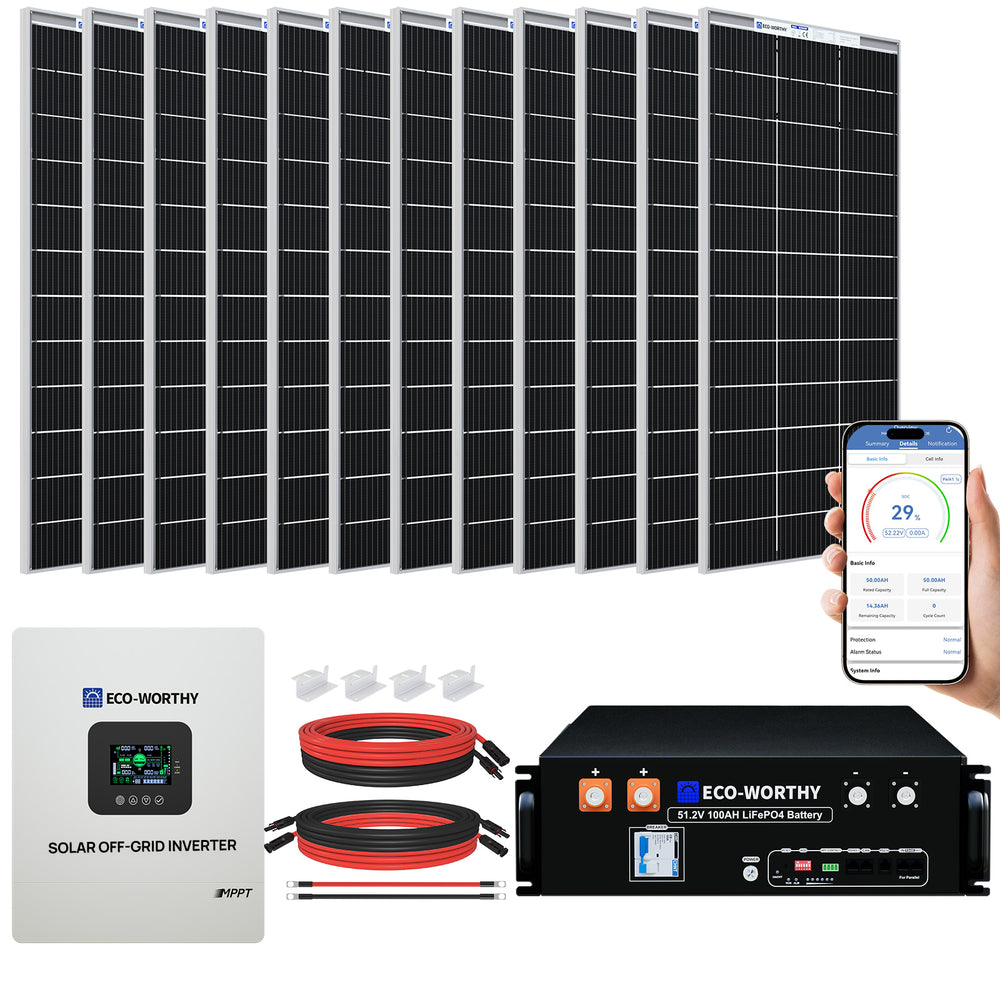

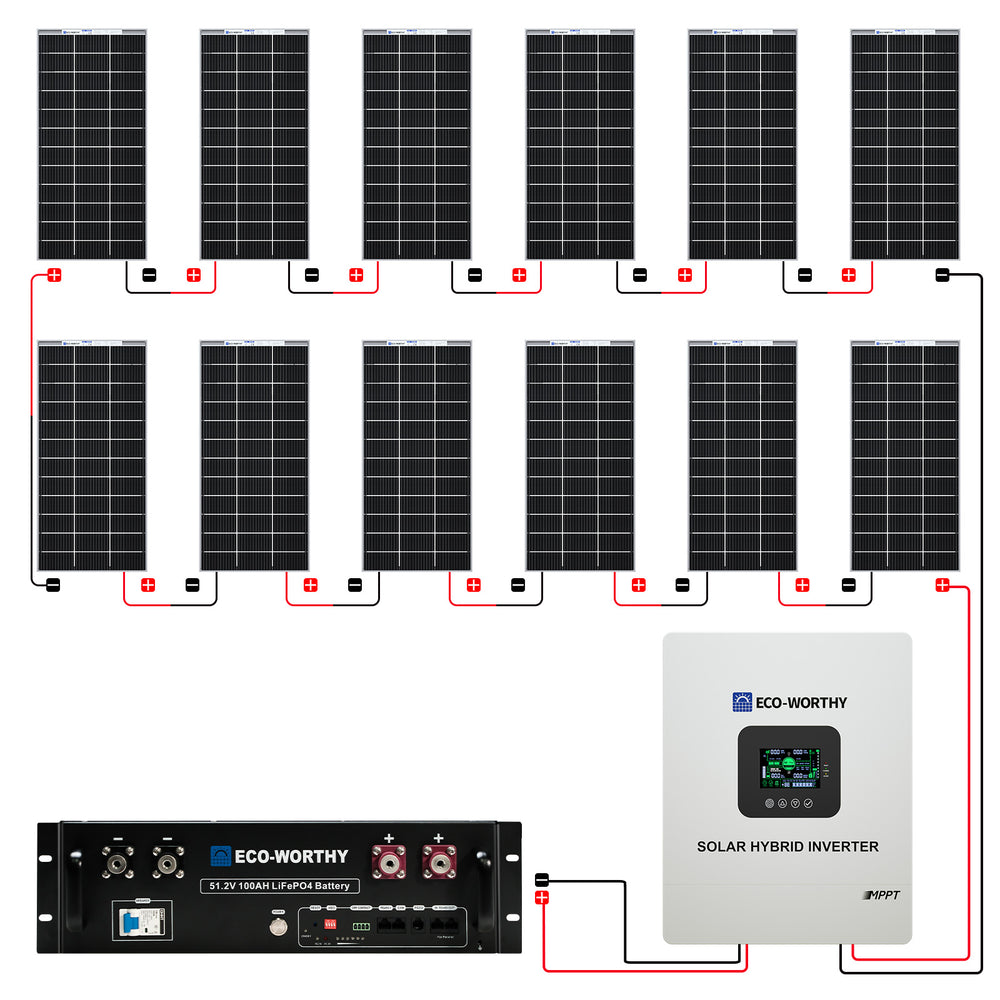

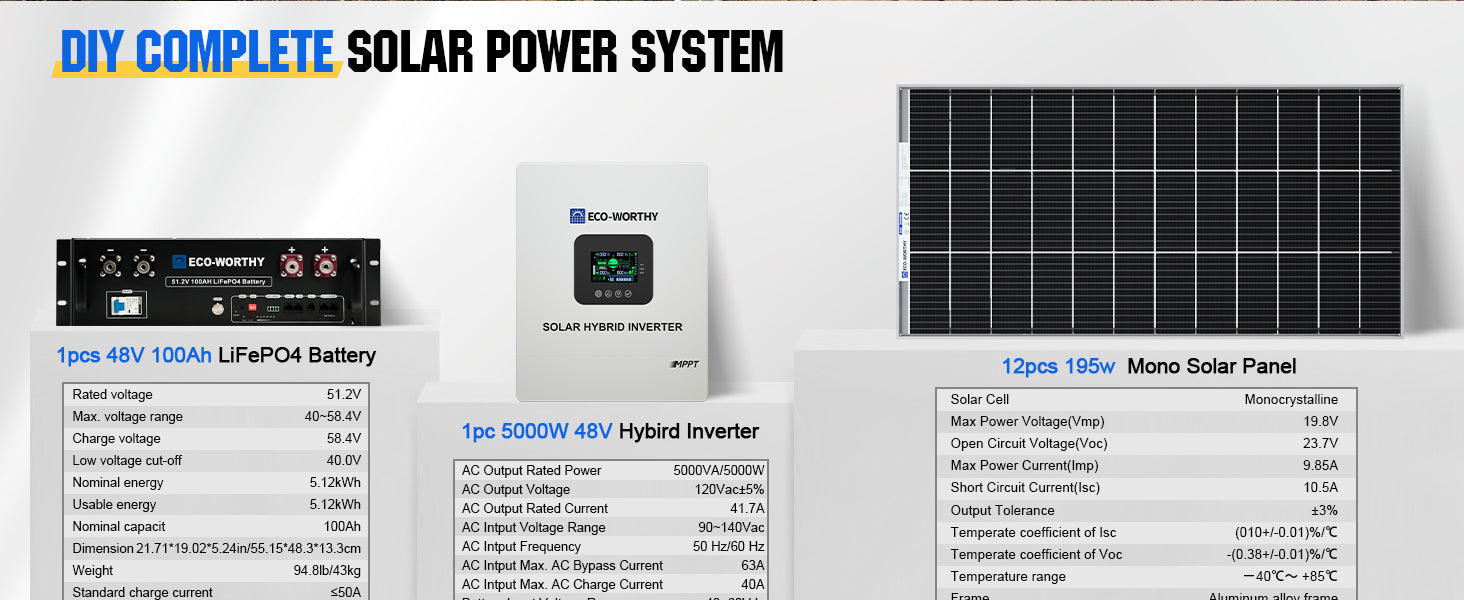

    Package Includes:

    2340W PV&5.12kWh Battery
    12x 195W Mono Solar Panel
    1x 5000W 48V Off-grid Inverter Charger
    1x 5M 8AWG Extension Cable with MC4
    1x 5M 12AWG Solar Cable with MC4
    12x Z Mounting Bracket
    1x 100Ah 48V Rack LiFePO4 Lithium Battery


    195W Monocrystalline Solar Panel

    Rated Power: 195W Solar Cell: Monocrystalline
    Maximum/Peak Voltage(Vmp): 20.2V Open Circuit Voltage(Voc): 234.5V
    Short circuit current: 10.14A Maximum current: 9.65A
    Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
    Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
    Frame: Aluminum alloy frame Weight: 20.48 lbs(9.29 kg)
    Size: 52.6x26.38x1.38in (1335*670*35mm)

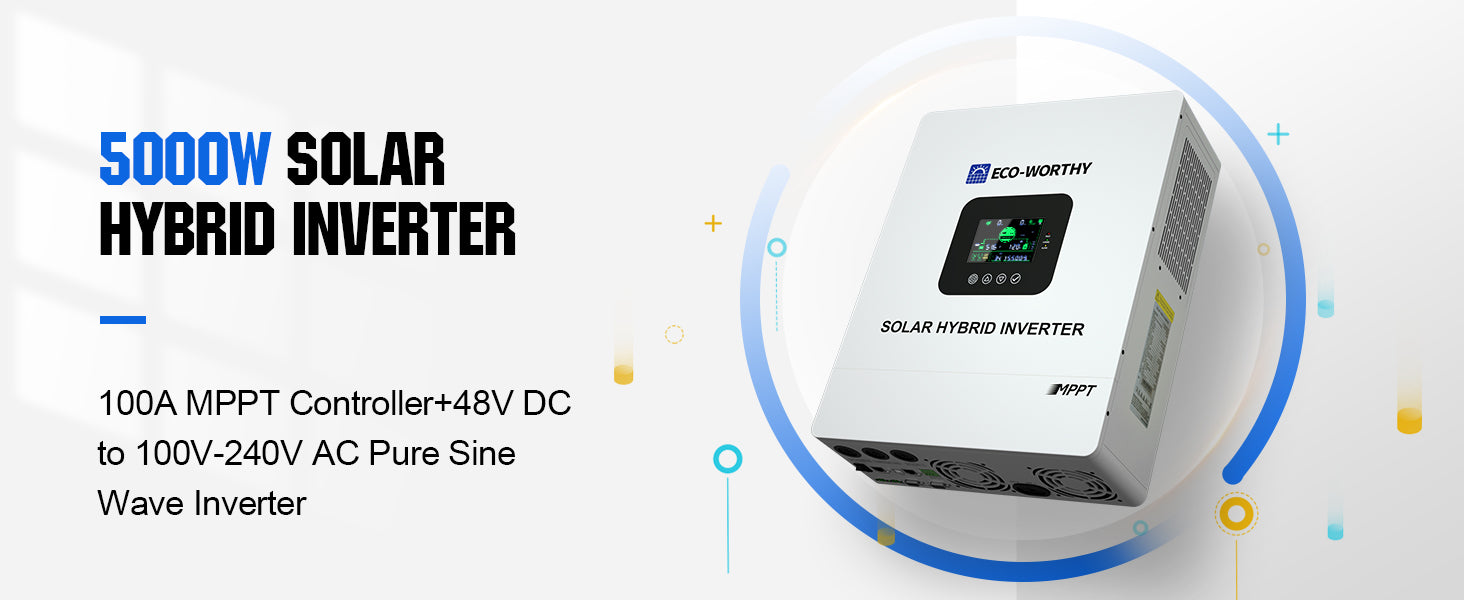

    5000W 48V Split Phase Solar Hybrid Inverter Charger

    Solar Charging Mode
    PV Charging Current Range: 100A MPPT Voltage Range: 120-450VDC
    Max Input Power: 5500W Battery Voltage Range: 40-60VDC
    Invert Mode
    Output Waveform: Pure Sine Wave Rated Output Power: 5000W
    Rated Output: 110V/120VAC 50Hz/60Hz Rated Battery Input Voltage: 48V
    Peak Power: 10000W


    48v 100Ah Rack LiFePO4 Lithium Battery

    Battery Capacity: 50Ah Battery Power: 5120Wh
    Rated Voltage: 51.2V Voltage Range: 40~58V
    Maximum Charge/ Discharge Current: 100A Charge Temperature Range: 0-55℃
    Disharge Temperature Range:﹣20-55℃ Maximum Charge Voltage: 58.4V
    Battery Size: 22.55*17.13*5.63inch Battery Weight: 97 lbs


    16.4 feet 12AWG Cables

    Cable Type: Connecting Solar Panels to Charge Controller Rating Voltage: 600/1000V
    Length: 5 meters(16 ft) Conductor: Tinned copper wire
    AWG: 11 Normal Cross Sectional Area of the Conductor (mm2): 4
    Waterproof: IP 65 Protection Temperature: -40°F to +185°F
    Connector: MC4 Weight: 0.742KG


    Z Mounting Brackets

    4 pieces of Z shape solar panel brackets 8 pieces of stainless steel nuts and cap bolts
