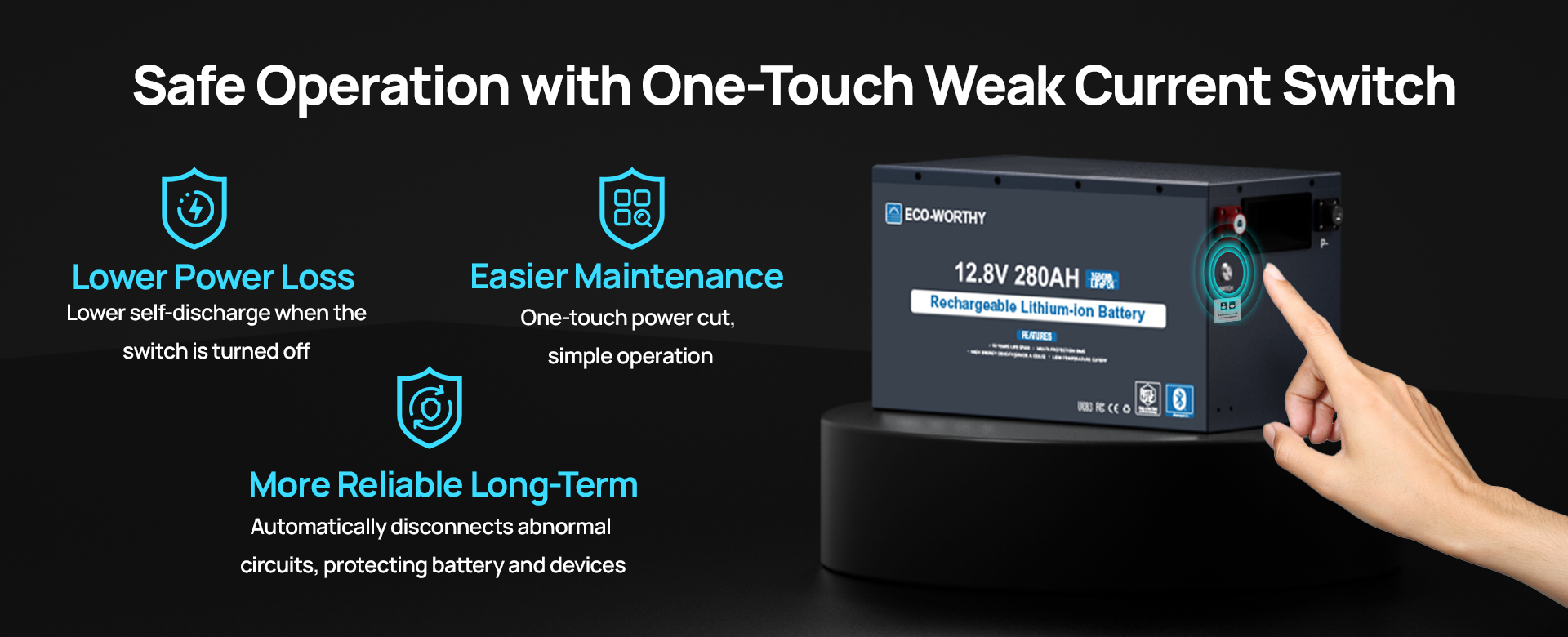

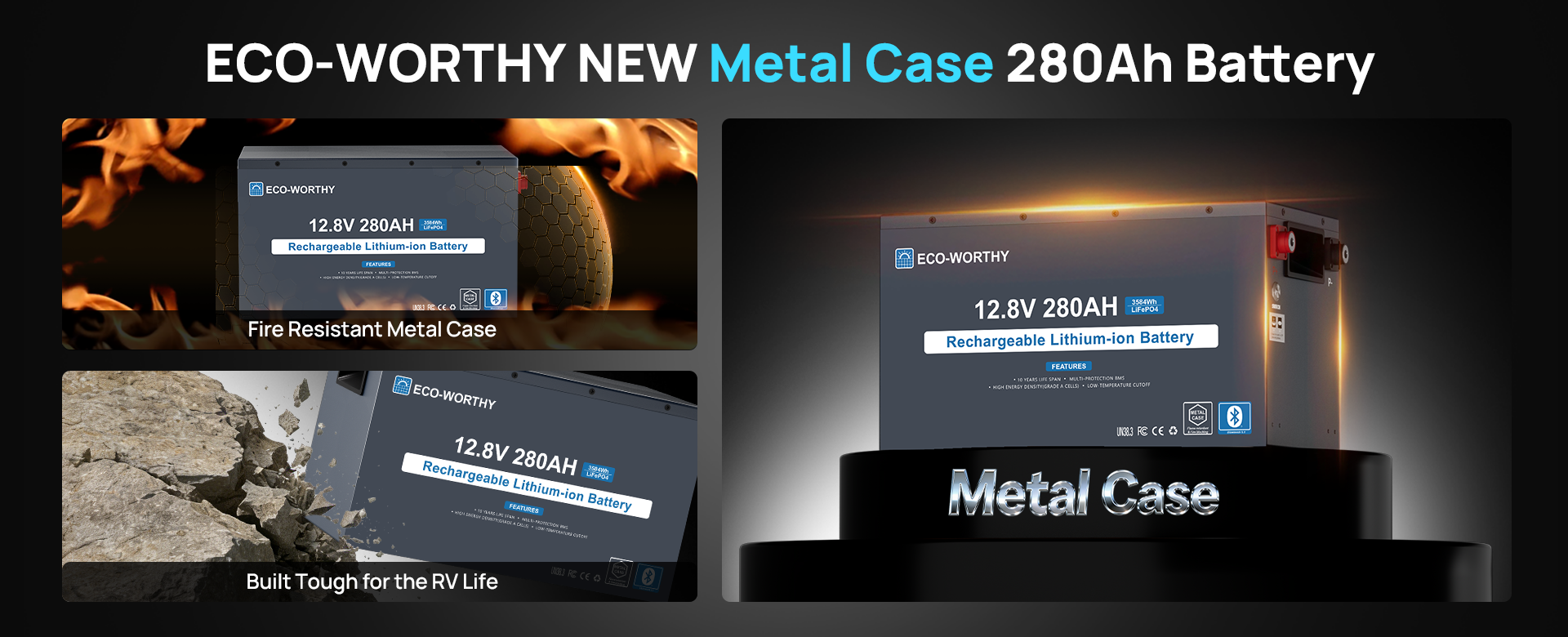

Built for Fire Safety & Easy Control
Heavy-duty metal casing provides superior heat resistance and fire protection compared to plastic designs. The built-in low-current power switch lets you safely cut off power with one touch during installation or maintenance—reducing spark risk and improving overall safety.

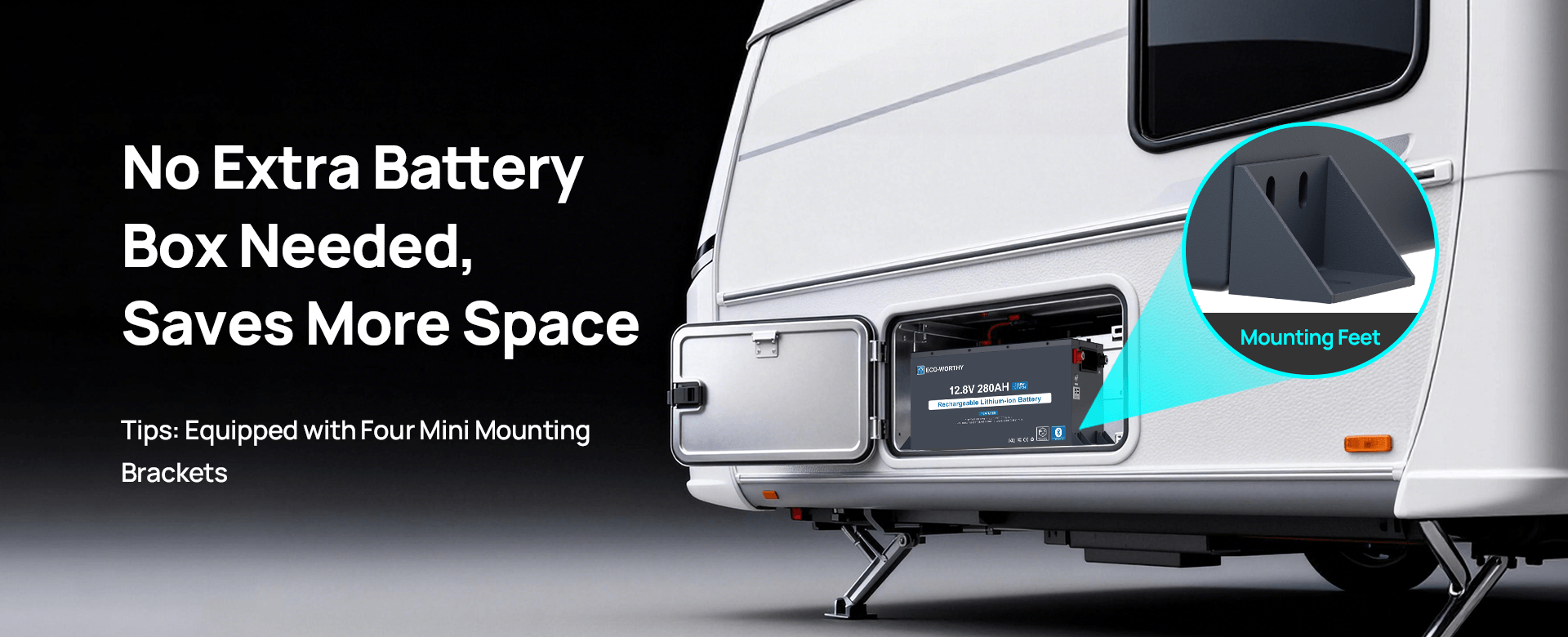

Install Directly, No Battery Box Needed
Designed with a rugged metal enclosure and 4 mounting feet, this battery can be installed directly in your RV or camper—no extra battery box required. Save space while keeping your setup clean, secure, and organized.

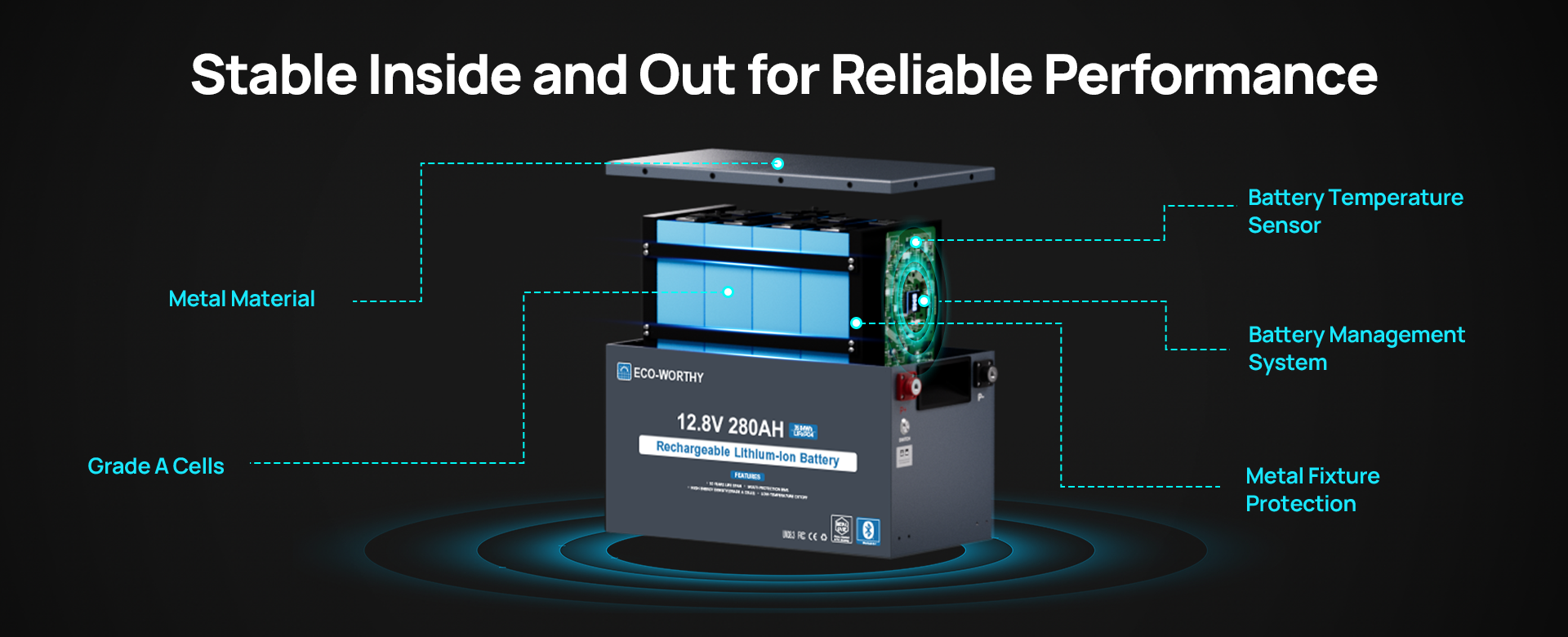

Stable Power on Any Road
Reinforced metal housing and internal cell supports minimize movement and absorb vibration during travel. Whether on highways or off-road terrain, it stays stable and protected—ideal for RV, van life, and mobile setups.

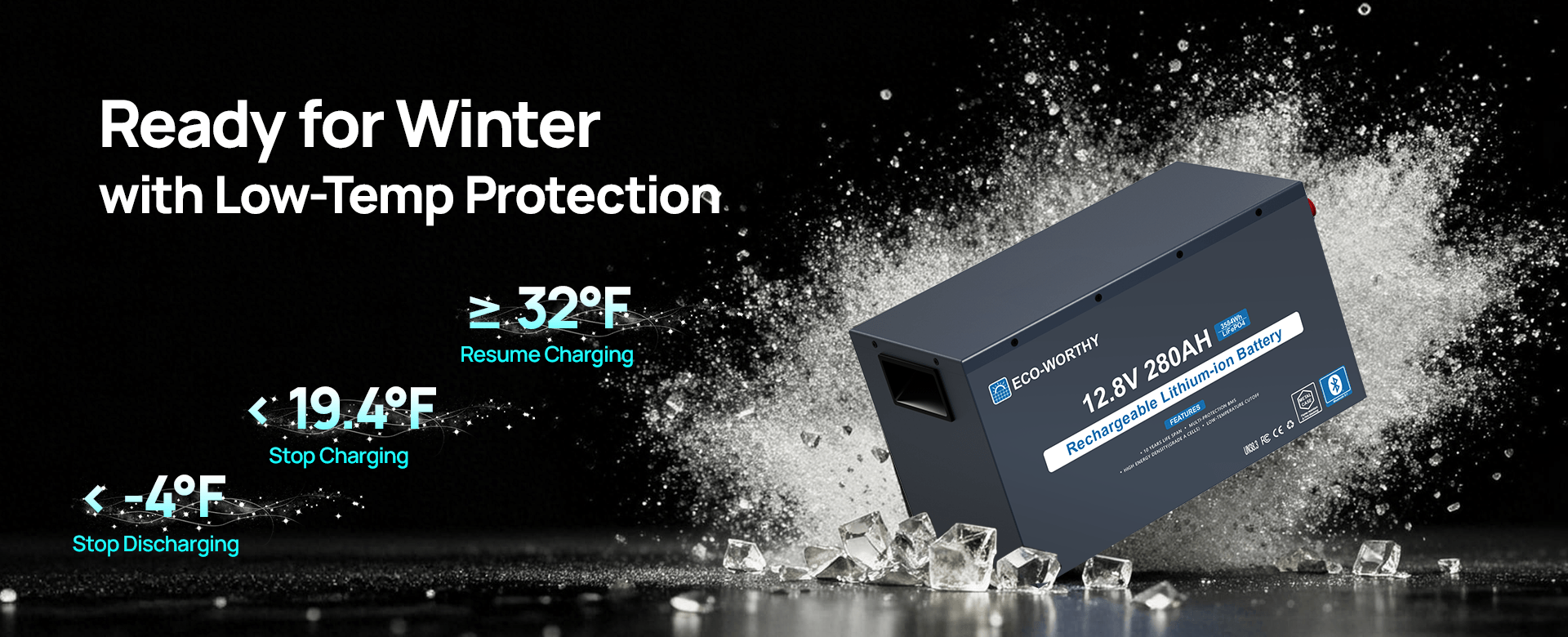

Smart Monitoring & Cold Protection
Track voltage, capacity, and battery status in real time via the Bluetooth app. The smart BMS also prevents charging in low temperatures, protecting the cells and extending battery lifespan.
Premium Cells with 200A Protection
Built with Grade A LiFePO4 cells and a powerful 200A BMS, it delivers stable, high-capacity energy with full protection against overcharge, over-discharge, overheating, and short circuits—for reliable, long-term performance.
PLEASE NOTE
carrier company to determine their requirements for shipping.MSDS Sheets are available upon request.
Float charging is not applicable to lithium iron phosphate batteries,long-tem float charging will accelerate battery aging or damage.If you have to set the float voltage
for MPPT/PWM charge controller in solar system,we suggest to set it to (12V Battery)13.2V-13.6V,(24V Battery)26.4V-27.2V,(36V Battery)39.6V-40.8V,
(48V Battery)52.8V-54.4V.

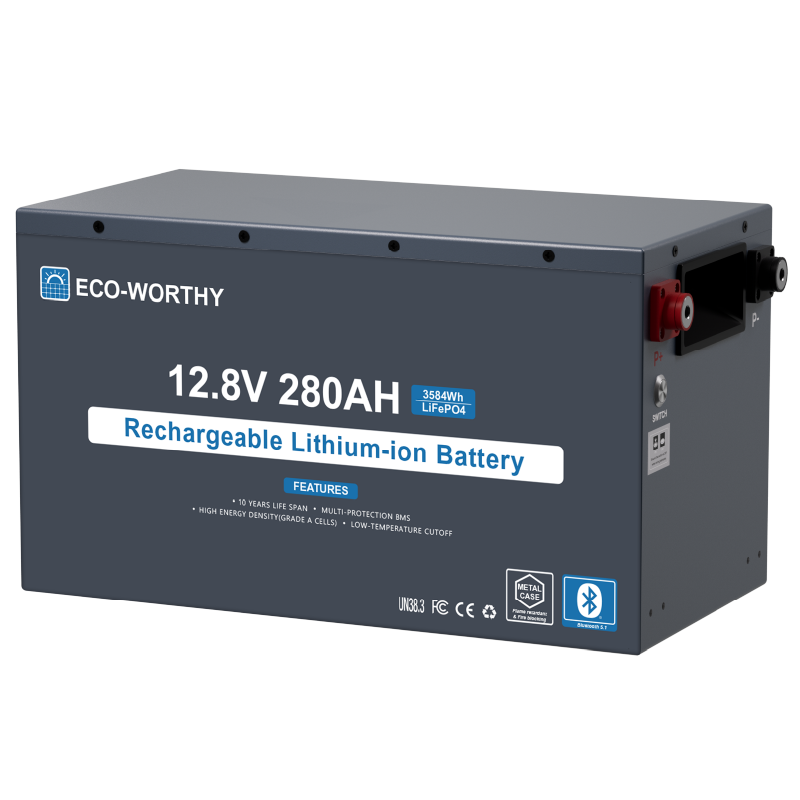

| 280AH 12V LiFePO4 Battery | |
| Nominal Voltage | 12.8V |
| Rated Capacity | 280Ah |
| Charge Method | CC/CV |
| Charge Voltage | 14.6V |
| Bulk/Absorption Voltage | 14.6V |
| BMS Balancing Volatge | Any cell voltage ≥3.45V Max Voltage difference between cells >30mV In Charging |
| Equalize Voltage | Not applicable |
| Float Voltage | Not applicable |
| Temperature Compensation | No/Disable |
| Charge Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 9.2V |
| Recommended Charge Current | 140A |
| Recommended Discharge Current | 140A |
| Maximum Continuous Charge Current | 200A |
| Maximum Continuous Disharge Current | 200A |
| Peak Current | 220A(10s) |
| Wifi | No |
| Bluetooth | Yes |
| Communication | No |
| Self Heating | No |
| Protection Rating | IP30 |
| BMS Protection | • Over and Low voltage • Charge and Discharge Over current • Short circuit • High and Low temperature |
| Internal Resistance | ≤10mΩ |
| BMS Leakage Current | ≤10mA |
| Charge Temperature Range | 32°F (0°C) to 131°F (55°C) |
| Discharge Temperature Range | -4°F (-20°C) to 131°F (55°C) |
| Storage Temperature 1 week | -4°F (-20°C) to 149°F (65°C) |
| Storage Temperature 1 month | -4°F (-20°C) to 113°F (40°C) |
| Storage Temperature 1 year | -4°F (-20°C) to 77°F (25°C) |
| Humidity Operating | 5% to 90 % RH |
| Humidity Storage | 35% to 85% RH |
| Certifications: MSDS; UN38.3; CE; PSE | |
