Bluetooth 5.0 Real-Time Monitoring
Stay connected to your power. Use your smartphone to monitor voltage, current, remaining capacity, and the battery's overall health in real-time. Plan your trips and usage with confidence, eliminating the worry of unexpected power loss.
Advanced Low-Temperature Protection
Built for all seasons. The battery features an intelligent low-temperature cut-off that automatically disconnects the charging circuit when the cell temperature drops below -7°C (19.4°F). This critical protection prevents damage during winter charging, making it ideal for RVs, marine use, and off-grid cabins in cold climates.
Lighter & Higher Energy Density
Achieve more power with less weight. Measuring L13 x W6.9 x H8.5 inches and weighing only 36.68 lbs, its volume is similar to a standard 100Ah battery but delivers 50% more capacity. It is one-third the weight of lead-acid batteries and offers 8 times the mass energy density.

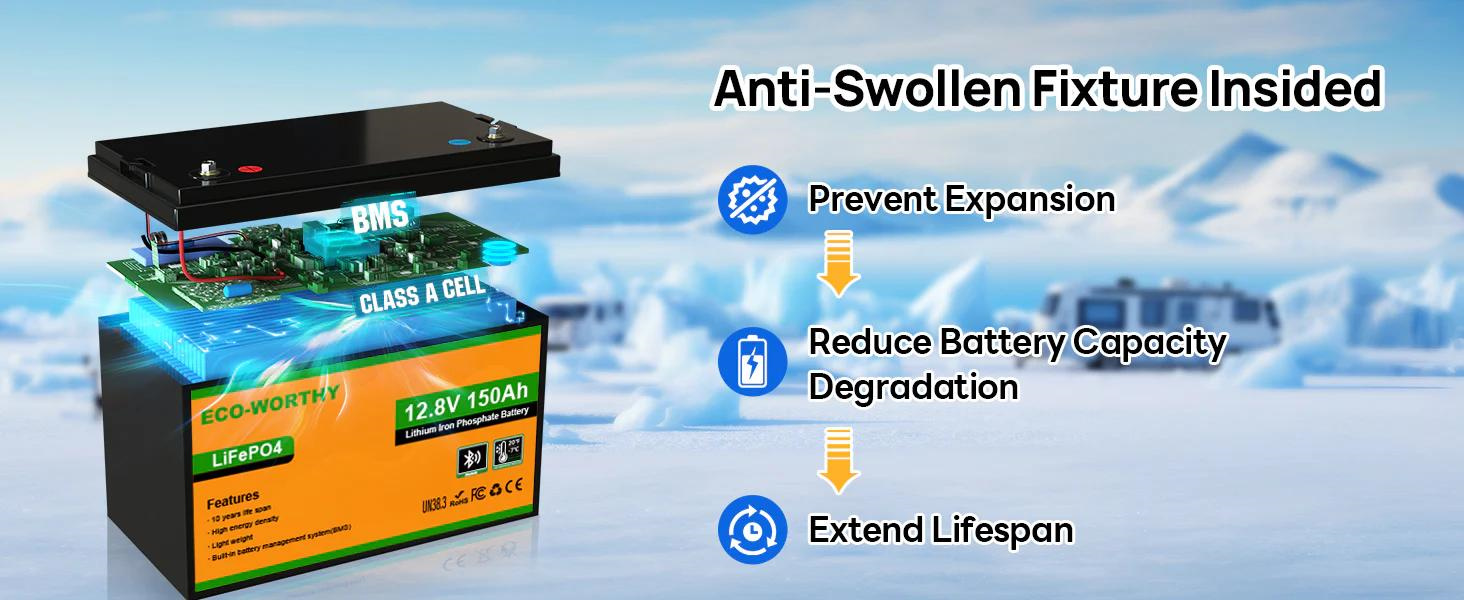

150A BMS & Premium Grade-A Cells
Engineered for safety and power. Built with automotive-grade, UL/IEC tested, and CE/RoHS certified LiFePO4 cells for maximum stability and energy density. The integrated 150A BMS provides comprehensive protection against overcharge, over-discharge, over-current, short circuit, and temperature extremes.
4S4P Configuration for Easy Expansion & Troubleshooting
Scale your system with ease. The 4S4P design allows you to connect multiple batteries to build a system from 1.92kWh up to 30.72kWh. If an issue arises, the mobile app helps you quickly identify the problematic unit, simplifying diagnostics and maintenance. Perfect for DIY solar systems, home energy storage, camping, and RVing.
| Nominal Volta ge | 12.8V |
| Rated Capaity | 150Ah |
| Charge Method | cc/cv |
| Charge Voltage | 14.6V |
| Bulk/Absorption Voltage | 14.6V |
| BMS Balaning Voltage | Any celvotage 3.45v Max Voltage diffrencebetween cels 30mV In Charging |
| Equalize votage | Neo apiable |
| Float Voltage* | Not appiradle |
| Temperature Compensation | No/Disable |
| Charg e Cut-off Voltage | 14.6V |
| Discharge Cut-off Voltage | 10v |
| Recommended Charge Current | 75A |
| Recommended Discharge Current | 75A |
| Maximum Continuous Charge Current | 120A |
| Maximum Continuous Discharge Current | 120A |
| Peal Current | 180A(10) |
| WiFi | No |
| Bluetooth | Yes |
| Communication | No |
| Ssef Heatig | No |
| protetion Rating | IP65 |
| Internal Resistance | s10mΩ |
| BMS Leakage Current | s10mA |
| Charge Temperature Range | 32"F (0°C)t 131°F (55°℃) |
| Discharge Temperature Range | -4"F(-20°C) t 131°F (55°℃) |
| Storage Temperature 1 week | -4(-20°C) to 149*F (65°℃) |
| Storage Temperature month | -4"F(-20°C) to 113F(40°℃) |
| Storage Temperature 1 year | -4°F (-20°℃) to77*F (25°℃) |
| Humidity Operating: | 5% to 90 % RH |
| Humidity Sorage: | 35% t 85% RH |
