10KW 48V AIO Solar Inverter Charger for Off-Grid & Backup
ECO-WORTHY 10000 watt pure sine wave inverter combines solar inverter + inverter charger + dual MPPT charge controller in one unit. Designed for 48V battery systems, delivering stable 120V / 240V split-phase or 120V single-phase output, ideal for home and off-grid solar power setups.
Dual MPPT & High Charging Capacity
Built with two independent MPPT solar controllers, supporting dual 5500W PV input (11,000W total) and up to 200A max battery charging (AC 120A / PV 200A / Hybrid 200A). 500VDC max open-circuit voltage ensures flexible solar array design and higher energy harvest efficiency.
Expandable System & Battery Compatibility

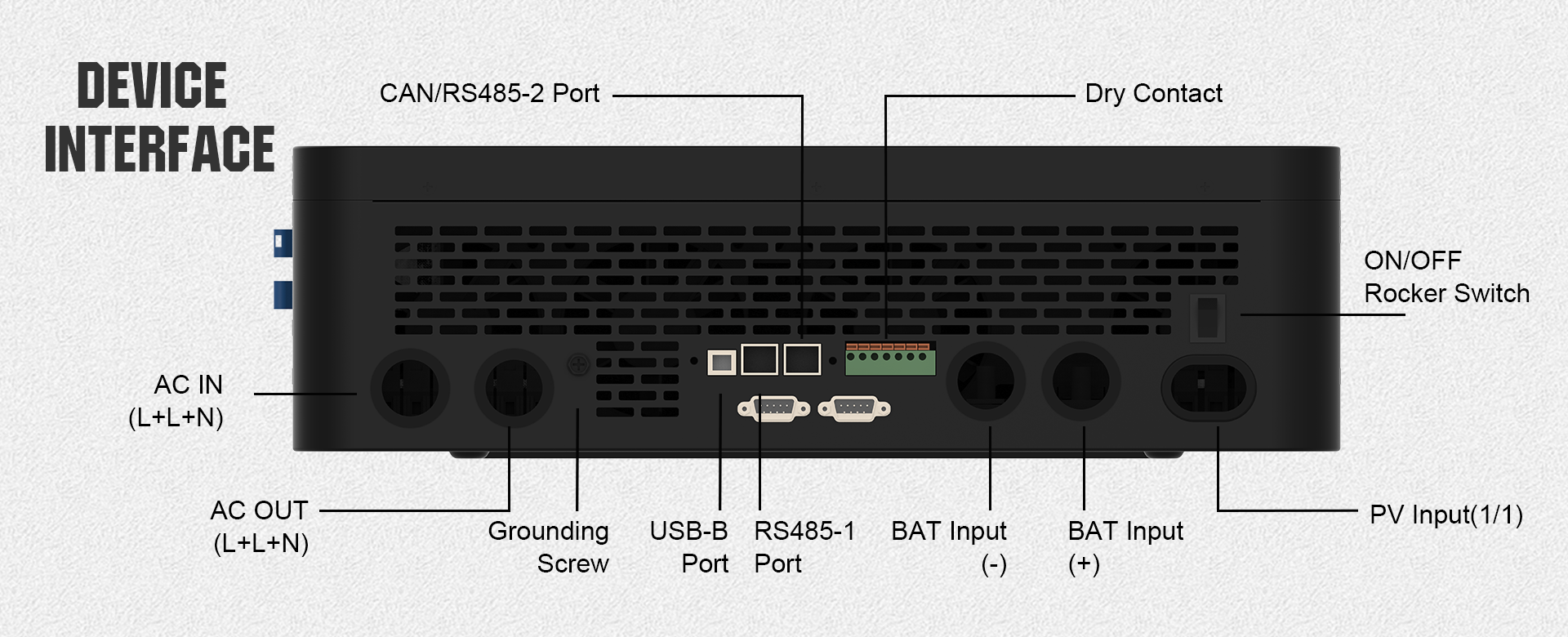

Supports parallel connection of up to 6 units (60KW total output) for scalable power needs. Compatible with multiple 48V battery types, including AGM, Gel, Flooded, and Lithium batteries. Communication ports include CAN, USB, and RS485 for seamless system integration.
Smart Monitoring & TOU Energy Control
Clear LED display for real-time system status and easy operation. Standard WiFi module included enables remote monitoring via mobile app. Built-in Time-of-Use (TOU) charging and discharging allows you to schedule power usage based on peak and off-peak electricity rates, maximizing solar savings.
Certified Safety & Versatile Applications

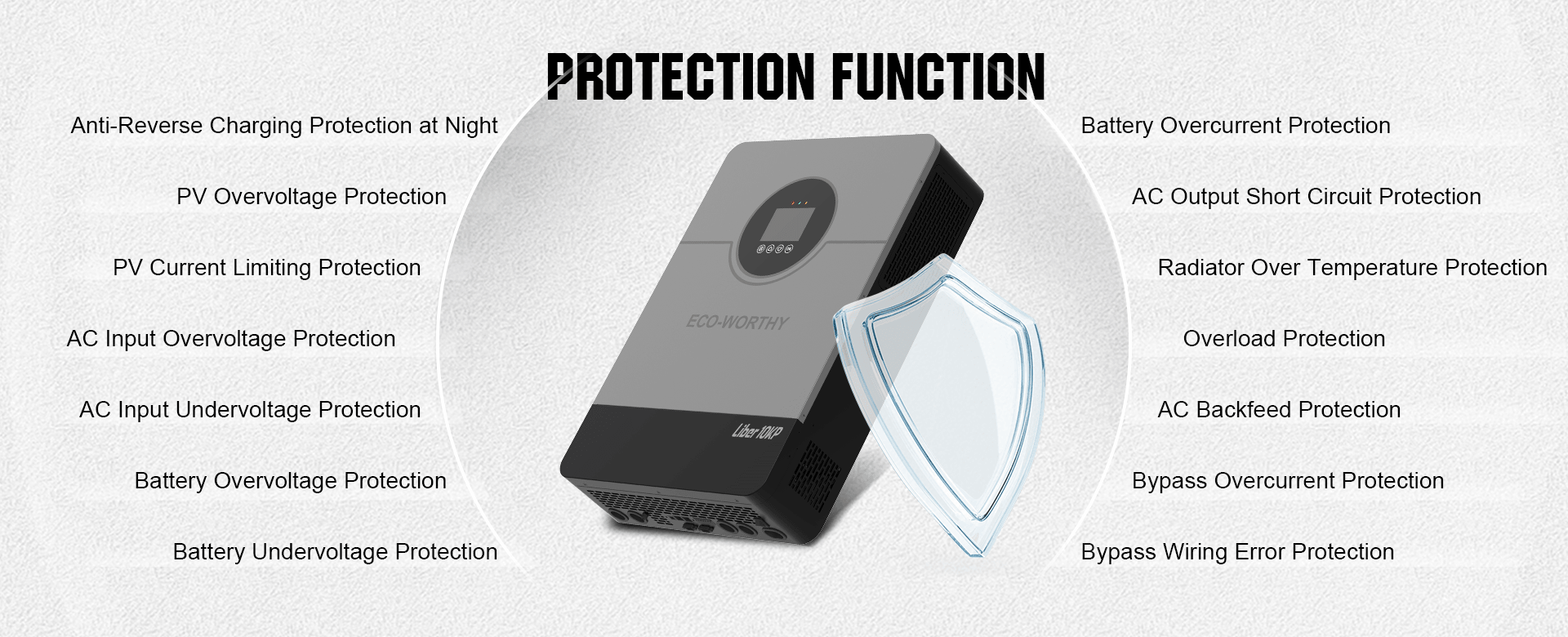

UL1741 certified for North American safety standards. Equipped with 14 comprehensive protection functions, including short-circuit, overload, and voltage fluctuation protection. Perfect for homes, cabins, RVs, workshops, and off-grid solar systems, delivering reliable power wherever you need it.
| Eco-Worthy 10000W Solar Off-grid Split-phase AIO Inverter | |
| Rated output power | 10,000W |
| Rated output voltage | 120/240VAC(single-phase/split-phase) |
| Rated frequency | 50/60Hz |
| Switching time | 10ms(typical value) |
| Battery type | Lithium-ionbattery/lead-acidbattery/user-defined battery |
| Voltage range | 40Vdc-60Vdc |
| Maximum mains/generator charge current | 120A |
| MPPT channel number | 2 |
| Maximum Input Current | 22/22A |
| MPPT operating voltage range | 125 Vdc-425 Vdc |
| Input frequency range | 50/60Hz |
| Dimension | 620mm*445mm*130mm |
| Protection level | IP20,for indoor use only |
| Noise | <60dB |
| Maximum peak power | 20,000W |
| Loading motor capacity | 6HP |
| Output wave | Pure sine wave |
| Parallel number | 6 |
| Rated battery voltage | 48Vdc |
| Maximum PV charge current | 200A |
| Maximum mix charge current | 200A |
| Maximum input power | 11,000W |
| Maximum open circuit voltage | 500Vdc |
| Input voltage range | 90VAC-140VAC |
| Bypass overload current | 63A |
| Weight | 27 kg |
| Ambient temperature | -10C-55C,>45C derating |
| Cooling mode | Intelligent fan |
